Honeywell Q3451U1000 Universal Pilot Assembly

Product Description

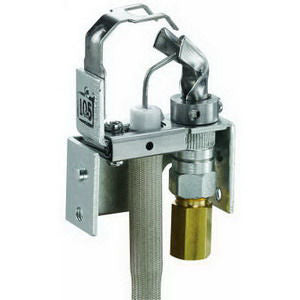

The Honeywell Q3451U1000 Universal Pilot Assembly is designed for providing pilot flame ignition and flame sensing in intermittent ignition systems. It includes a pilot burner with an integrated spark igniter/flame sensor, orifice assembly, and compression fittings for easy installation.

• Compatible with Liquid Propane and Natural Gas
• Includes multiple orifice sizes for versatility
• Universal mounting bracket and 55-inch igniter lead length

Product Highlights

Ideal for a variety of HVAC applications, this universal pilot burner ensures reliable ignition and flame sensing. It is equipped with a single-rod combination spark igniter/flame sensor, adjustable tip style, and several mounting brackets for easy installation.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• MPN: Q3451U1000
• Dimensions: 36 inches, 55 inches L
• Orifice Size: BCR-20, BCR-18, BBR-12, BBR-11, BCR-10
• Mounting Type: Universal
• Direction of Front Tip: Adjustable Left, Right, and Center
• Application: Intermittent Pilot Applications
• Gas Type: Liquid Propane/Natural Gas
• Special Features: Waterproof, Integral Ignition Wire
