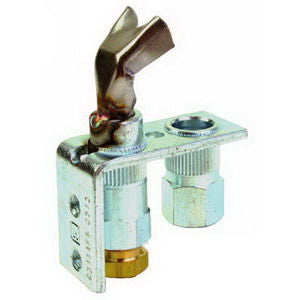

Honeywell Q314A6102 Standing Pilot Burner Liquid Propane Natural Gas

Product Description

The Honeywell Q314A6102 is a standing pilot burner designed for use with liquid propane and natural gas systems. It is commonly used in various heating applications to provide reliable ignition for the main burner.

• Standing pilot burner for liquid propane and natural gas
• Includes BCR-18 (0.018 inch) and BBR-10 (0.010 inch) orifices
• Compatible with Honeywell thermocouples and thermopiles

Product Highlights

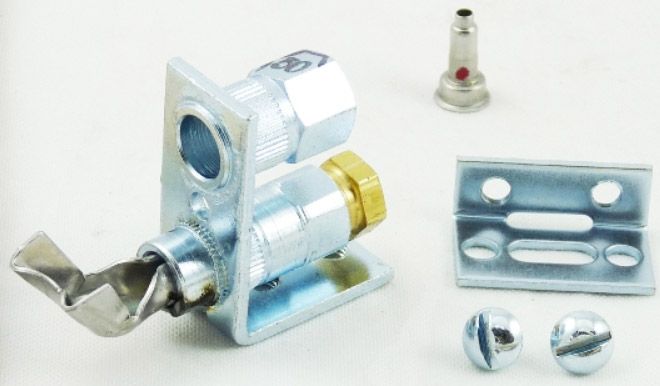

This pilot burner assembly includes a mounting bracket and is CSA approved. It features non-primary aeration and a 1/4 inch compression fitting, making it suitable for various installation scenarios. The unit comes with a B style bracket and can be used with Q309, Q340, Q390 thermocouples, or Q313 thermopiles.

Product Information

Standard Information

• Brand: Honeywell
• MPN: Q314A6102
• Gas Type: Liquid Propane/Natural Gas
• Mounting Type: Style B Bracket

Technical Specifications

• Aeration: Non-Primary
• Tip Style: Single, Target
• Orifice Size: BCR-18 (0.018 inch)
• Connection Type: 1/4 inch Compression
• Direction of Front Tip: Right
• Dimensions: 1.97 inches L x 1.5 inches W x 1.56 inches H
• Approvals: CSA Certified
• Application: Standing Pilot Applications
