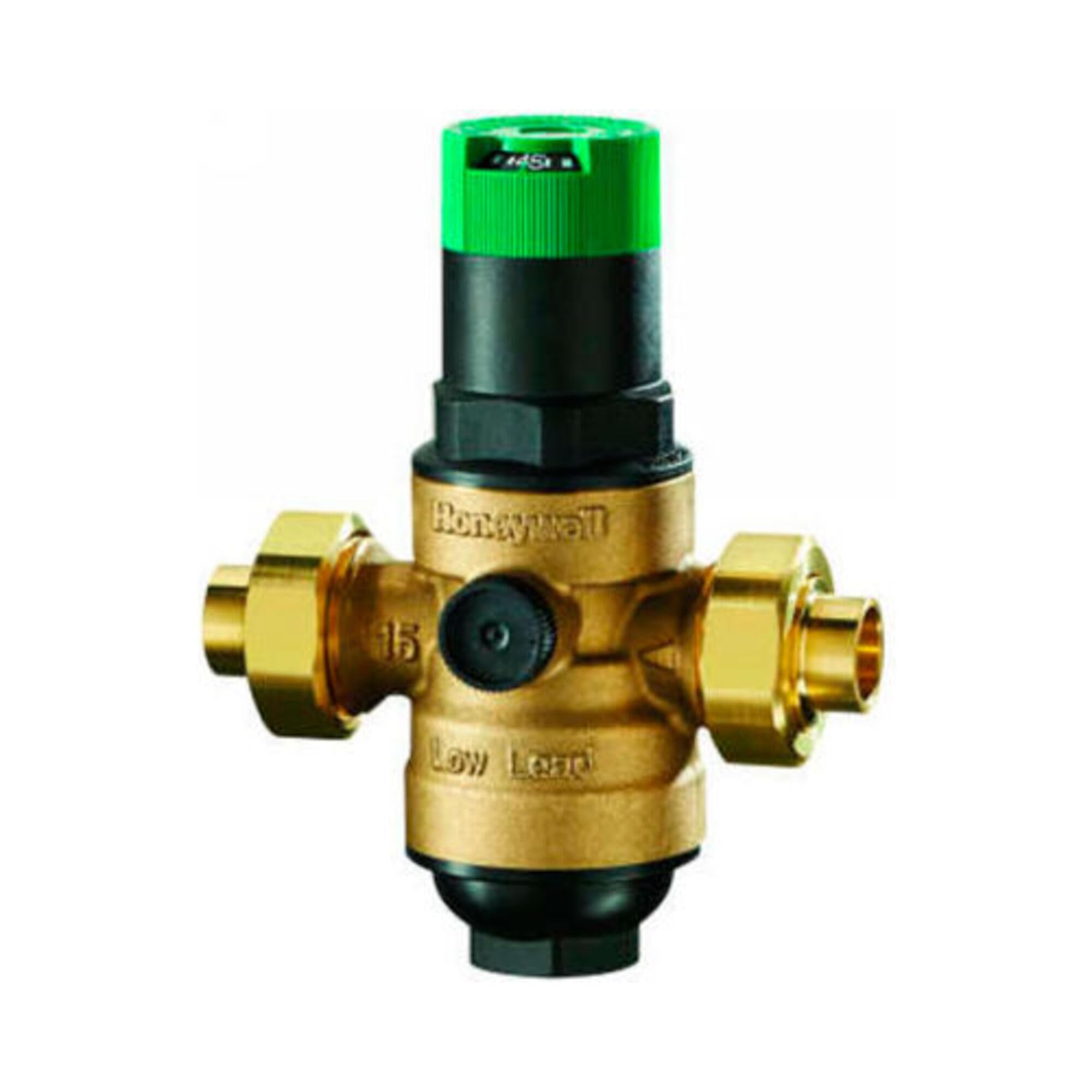

Honeywell DS06-104-SUT-LF 1 1/2 Inch Dialset Low Lead Pressure Regulating Valve Single Union NPT

Product Description

The Honeywell DS06-104-SUT-LF 1 1/2 Inch Dialset Low Lead Pressure Regulating Valve is a versatile component designed for various applications. This pressure regulating valve eliminates the need for a pressure gauge with its built-in adjustment dial. It features a reliable, non-corroding unitized cartridge, making all working parts easily replaceable. Suitable for household, commercial, industrial, and turf-and-irrigation applications. The valve includes an outlet adjustment range of 25 PSI to 90 PSI, a built-in strainer for simplified maintenance, and a 1/4 NPT tap on both sides for output validation.

• Built-in adjustment dial
• Non-corroding unitized cartridge
• Outlet adjustment range of 25 PSI to 90 PSI

Product Highlights

The Honeywell DS06-104-SUT-LF 1 1/2 Inch Dialset Low Lead Pressure Regulating Valve is ideal for reducing your inventory as it works in various applications. The built-in strainer simplifies maintenance, and the easily accessible gauge port allows for quick adjustments when needed.

Product Information

Standard Information

• Brand: Honeywell
• MPN: DS06-104-SUT-LF
• UPC: 085267440875
• ASIN: B06XP37R8M

Technical Specifications

• Body Material: Brass
• Pressure Range: 25 PSI to 90 PSI
• Standard Factory Setting: 60 PSI
• Nominal Size: 1 1/2 inch
• Operating Temperature: 33 to 140 degrees Fahrenheit
• Pressure Rating: 250 PSI
• Connection Type: Single Union NPT
• Gauge Tap Size: 1/4 inch
