Honeywell DS06-104-DUT-LF Dialset Low Lead Pressure Regulating Valve PRV 1-1/2 Inch

Product Description

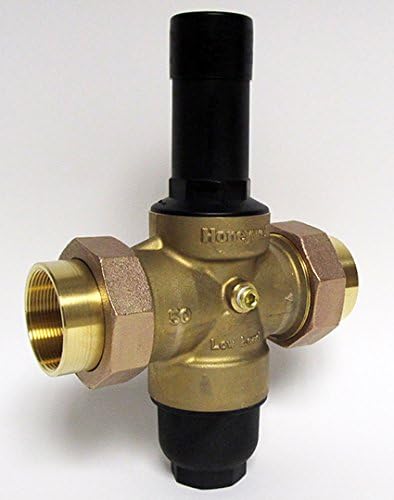

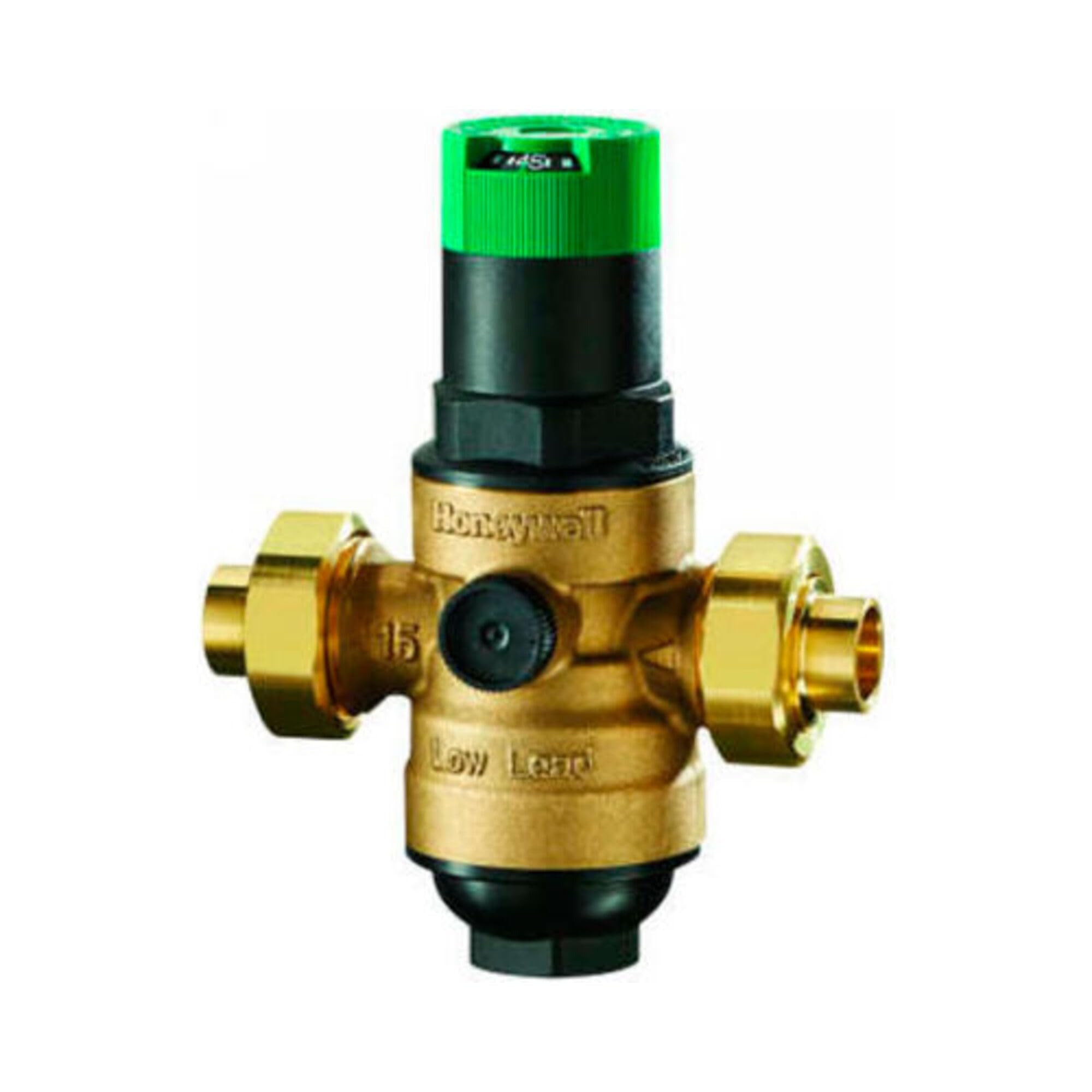

The Honeywell DS06-104-DUT-LF 1-1/2 Inch Dialset Low Lead Pressure Regulating Valve (PRV) is ideal for precise water pressure regulation. This bronze body PRV is suitable for potable water and irrigation applications.

• Designed for potable water and irrigation
• Wide outlet pressure range
• Non-corroding unitized cartridge

Product Highlights

This Honeywell pressure regulating valve boasts a wide outlet pressure range and a compact design for flexible installation. It includes a built-in strainer and thermal bypass, ensuring superior performance.

Product Information

Standard Information

• Brand: Honeywell
• Model: DS06-104-DUT-LF
• Type: Pressure Regulating Valve
• Application: Potable Water, Irrigation

Technical Specifications

• Media: Hot Water
• Pressure Rating: 25 - 90 psi, 250 psi Inlet, 60 psi Outlet
• Temperature Rating: 140 deg F
• End Style: NPT
• Nominal Size: 1-1/2 Inch
• Body Material: Bronze
• Dimensions: 9-3/16 Inch L x 11-13/16 Inch H
• Compliance: ASSE 1003-2027, IAPMO Listed, CSA B356-10
