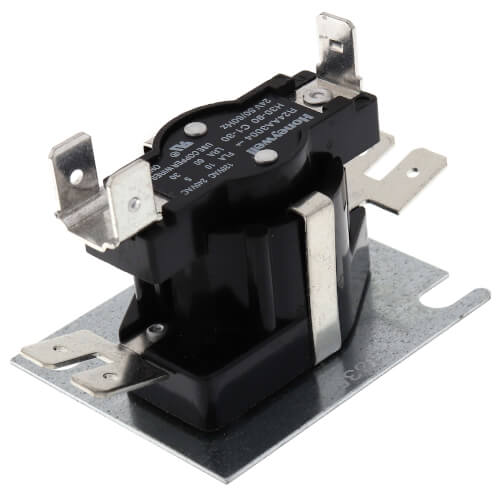

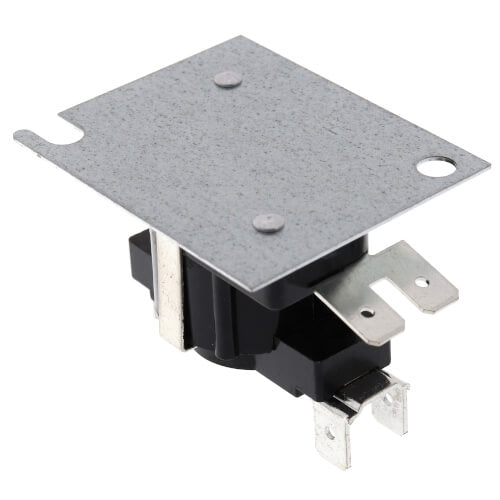

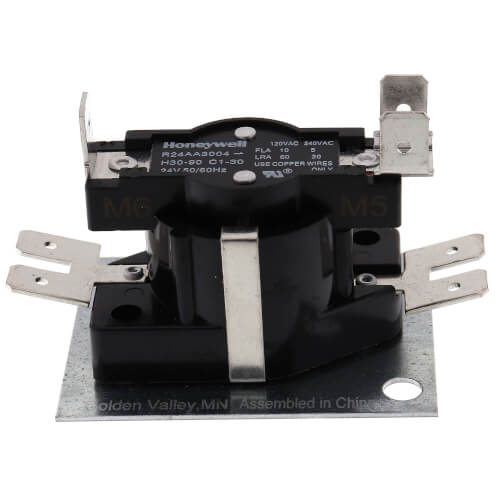

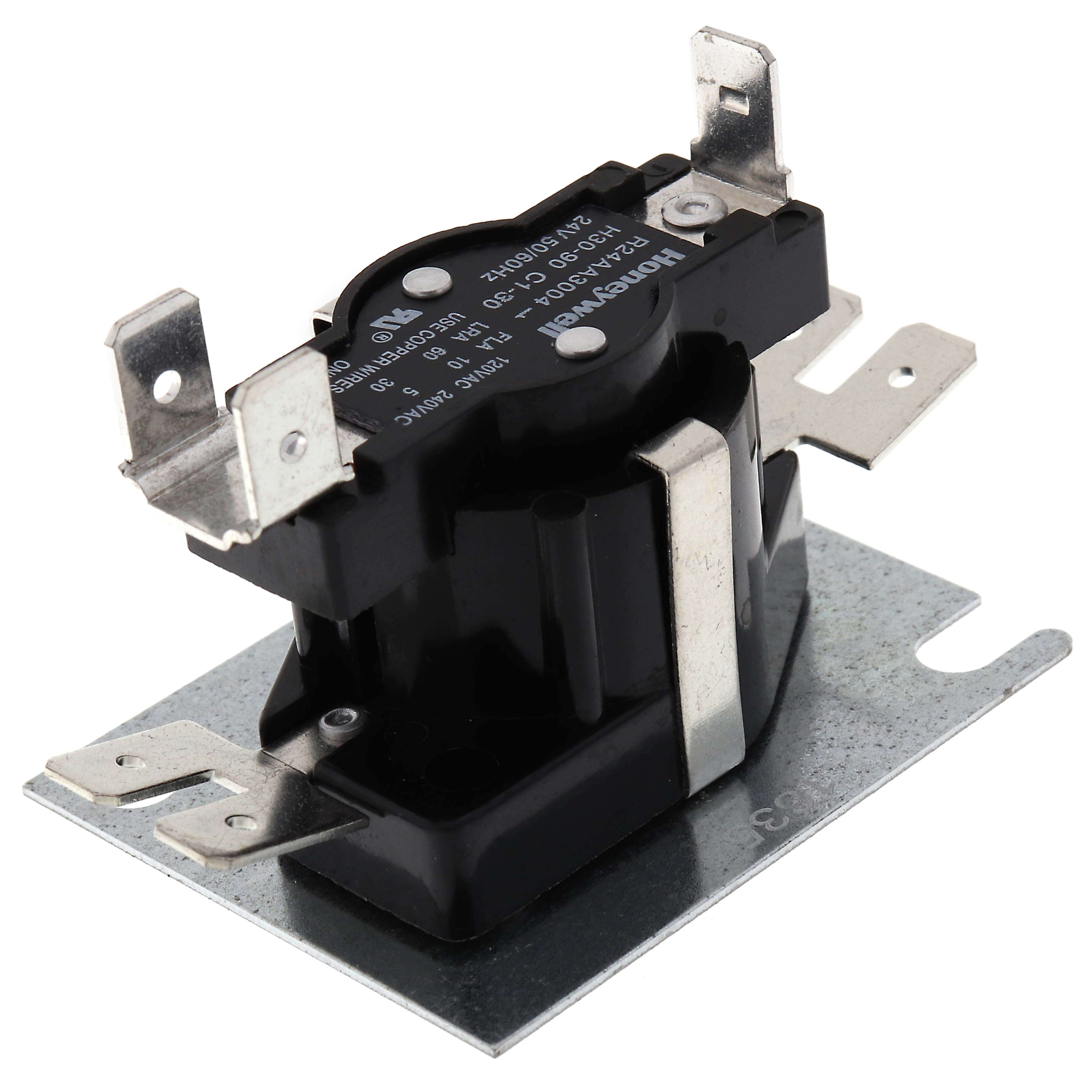

Honeywell Home R24AA3004 Electric Heat Sequencer 90 Sec Timing Replacement R24AA3003

Product Description

The Honeywell R24AA3004 Electric Heat Sequencer offers efficient control for electric air heating systems. Engineered by Honeywell Home, this device exemplifies high-quality construction with reliability in performance.

• Efficient control over heating elements, minimizing power wastage
• Mounts in any position for flexible installation
• Robust construction, resistant to shock and vibrations

Product Highlights

This sequencer replaces a broad array of older models, making it an ideal upgrade for various systems. It features quick-connect terminals to simplify the installation process.

Product Information

Standard Information

• Operating Temperature Range: -40 C to 73.8 C (-40 F to 165 F)
• Contact Ratings: Up to 25 Amps at 120 or 240 Volts

Technical Specifications

• Max Current: 25A resistive, 14A inductive at 120 VAC
• Timing Delays: ON 30-90 seconds, OFF 1-30 seconds
• Certifications: UL approved, CSA/CUR approval pending
• Mounting: Position-independent installation
