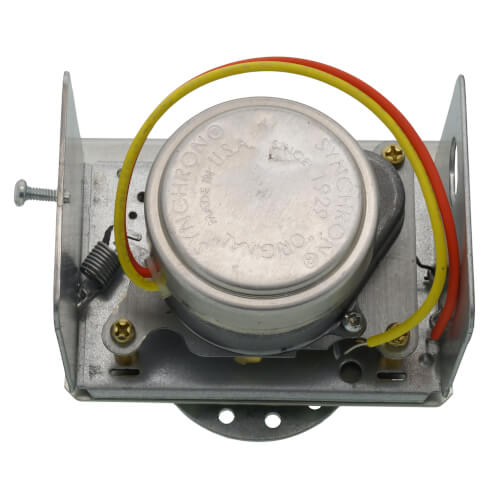

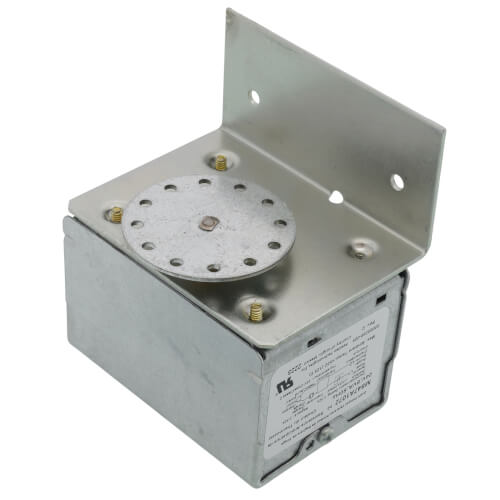

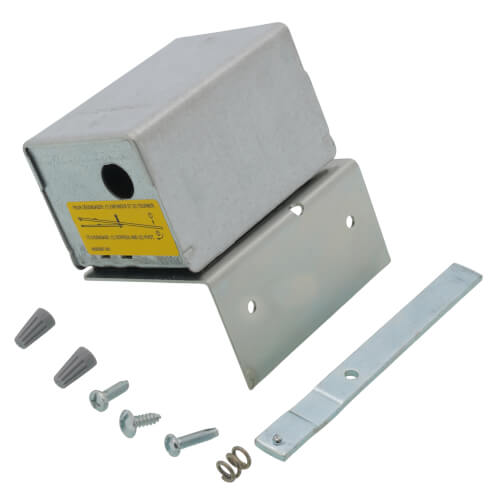

Honeywell Home M847A1072 24V 2 Position Damper Actuator w/ Arm Linkage

Product Description

The Honeywell Home M847A1072 is a 24V 2 Position Damper Actuator designed for reliable operation in HVAC systems. This model, equipped with an arm linkage, is typically employed in controlling draft dampers in solid fuel furnaces, boilers, and other light duty applications.

• Robust spring-return mechanism ensures fail-safe operations.
• Easy installation with various mounting options including wall, duct, or direct appliance.
• Operates within a wide temperature range from 40 to 125 degrees Fahrenheit.

Product Highlights

This actuator is optimized for low voltage applications, simplifying integration into existing setups without requiring extensive rewiring. The actuator wheel rotates clockwise when energized, illustrating its user-friendly design for straightforward maintenance and operation.

Product Information

Technical Specifications

• Control Signal: SPST, 2 Position
• Fail Safe Mode: Spring Return
• Stroke Maximum Degrees: 45 degrees
• Run Time: 20 seconds
• Voltage: 24 Vac
• Frequency: 60 Hz
• Operating Humidity Range: 5 to 95% RH
