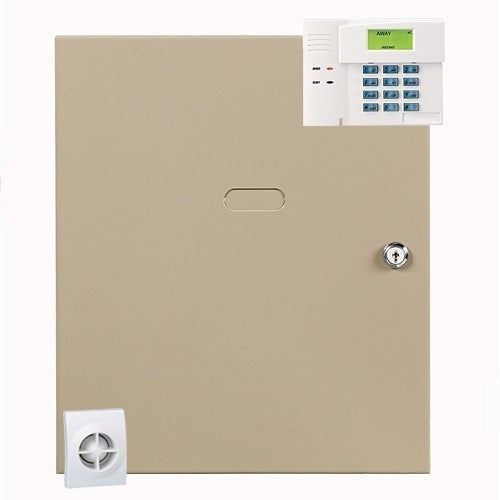

Honeywell Home Intrusion V1550KS209 Security Panel Kit

Product Description

The HONEYWELL HOME INTRUSION V1550KS209 is a hybrid security control panel kit designed for residential and light commercial intrusion detection systems. This kit centers on the Vista-15P control panel, a widely deployed zone-based alarm board, bundled with a 6150 fixed-word keypad and a Wave2 siren for a complete out-of-the-box installation. Licensed alarm installation technicians work with this type of kit to set up perimeter and interior zone coverage, configure entry and exit delays, and connect peripheral devices such as door contacts, motion detectors, and smoke detectors. The panel supports both hardwired and compatible wireless zones, giving installers flexibility across new construction and retrofit applications.

This kit is suited for residential properties and small commercial spaces requiring a code-compliant intrusion detection system. The Vista-15P at its core handles zone input and alarm output logic, the 6150 keypad provides user arming and disarming control, and the Wave2 siren delivers local audible alarm output. Alarm contractors and licensed security technicians are the primary installers. The bundled components reduce sourcing time when outfitting a standard residential security installation from scratch.

Key Features

• Kit includes Vista-15P hybrid control panel, 6150 fixed-word keypad, and Wave2 siren
• Hybrid panel architecture supports hardwired zones alongside compatible wireless expansion
• 6150 keypad provides straightforward user interface for arming, disarming, and status display
• Wave2 siren delivers local audible alarm signaling
• Designed for residential and light commercial intrusion detection installations

Compatibility

Designed as an OEM-style kit for residential and light commercial hybrid intrusion detection systems using Vista-series control panel infrastructure.

Installation Notes

Installation should be performed by a licensed alarm or low-voltage contractor in accordance with local codes and NFPA 731 guidelines. Power down and disconnect the backup battery before servicing any wiring connections on the control panel. All zone wiring, keypad wiring, and siren connections should be completed before applying AC power. Follow the individual component installation guides for zone programming and keypad address configuration.
