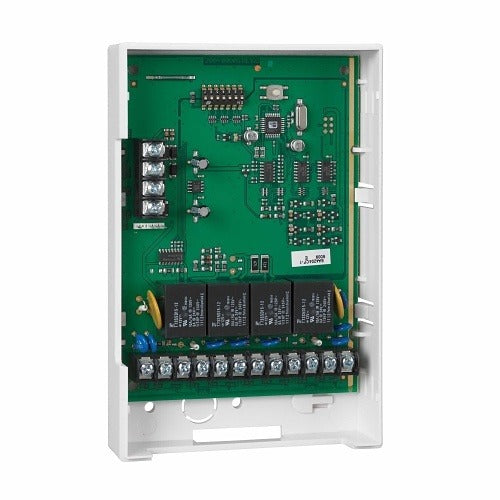

Honeywell Home Intrusion 4204CF Nac Expander Module

Product Description

The Honeywell Home Intrusion 4204CF is an addressable notification appliance circuit (NAC) expander module designed to extend the notification output capacity of compatible fire alarm and intrusion control panels. The 4204CF adds addressable NAC zones to a system, allowing additional horns, strobes, or other notification appliances to be supervised and controlled from the main panel. It is typically installed by licensed fire alarm technicians and low-voltage electricians working on commercial or residential life-safety systems.

The 4204CF is suited for installations where the primary control panel requires additional supervised NAC outputs to meet code coverage requirements. It is commonly deployed in commercial buildings, multi-unit residential properties, and light industrial facilities where expanding notification circuit capacity without running additional homerun wiring back to the main panel is necessary. Installers integrating it into an addressable loop can manage the module through the panel's address programming interface.

Key Features

• Addressable NAC expander adds supervised notification appliance circuit capacity to compatible control panels
• Supports connection of horns, strobes, and other listed notification appliances
• Addressable design allows identification and control from the main panel interface
• Sold individually as a single unit for precise quantity ordering

Compatibility

Designed as an OEM-style addressable NAC expander for use with compatible Honeywell Home Intrusion fire alarm and intrusion control panel systems that support addressable notification circuit expansion modules.

Installation Notes

Installation should be performed by a licensed fire alarm technician or low-voltage electrician in accordance with NFPA 72 and all applicable local codes. Power down and fully discharge the control panel before connecting or disconnecting the module. Verify address programming matches the panel's loop configuration before restoring power. Do not connect non-listed notification appliances to the NAC output circuits.
