Honeywell Home HZ432K TrueZONE Zone Panel Kit 24V (4-Zone) Y8835A1044

Product Description

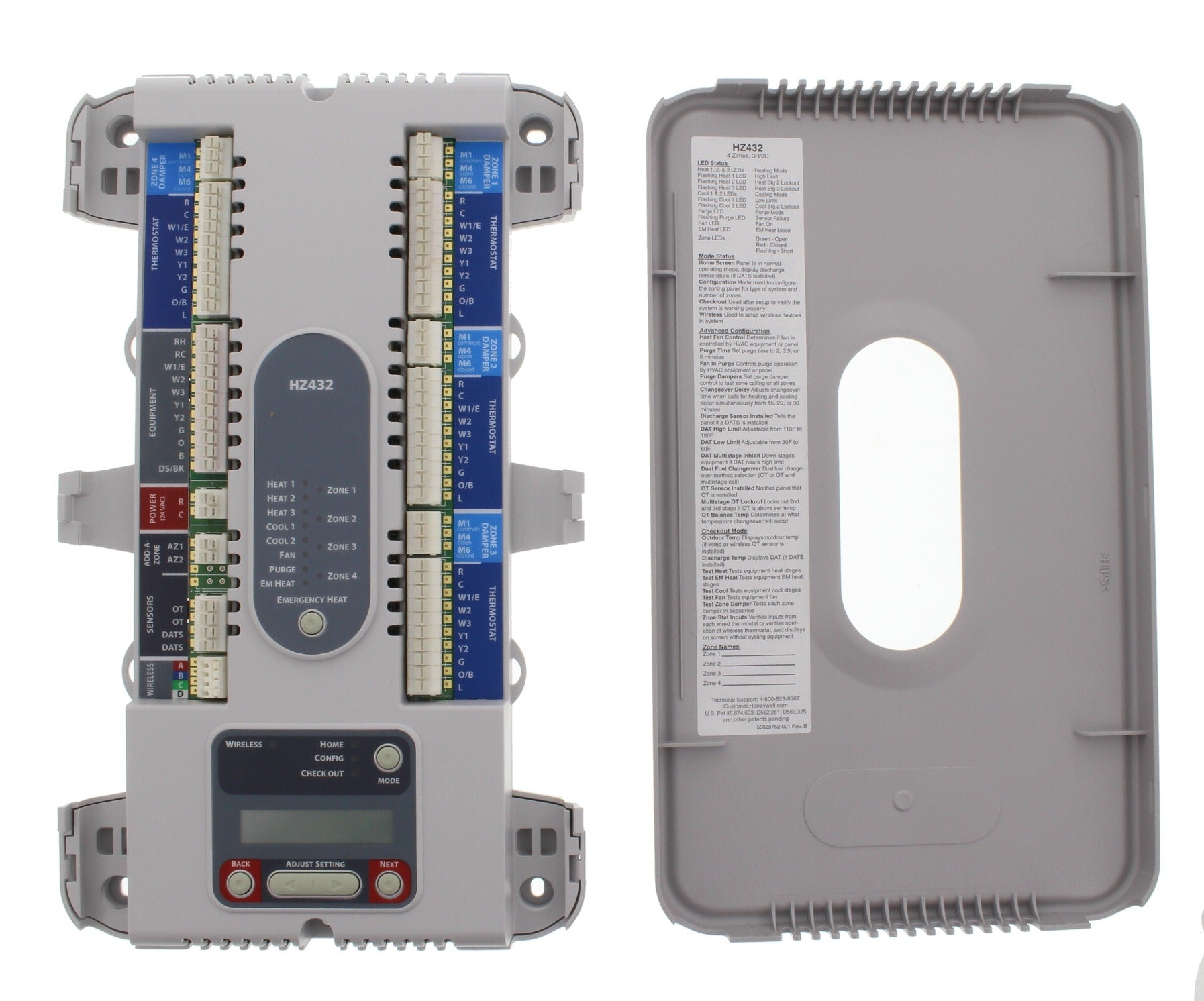

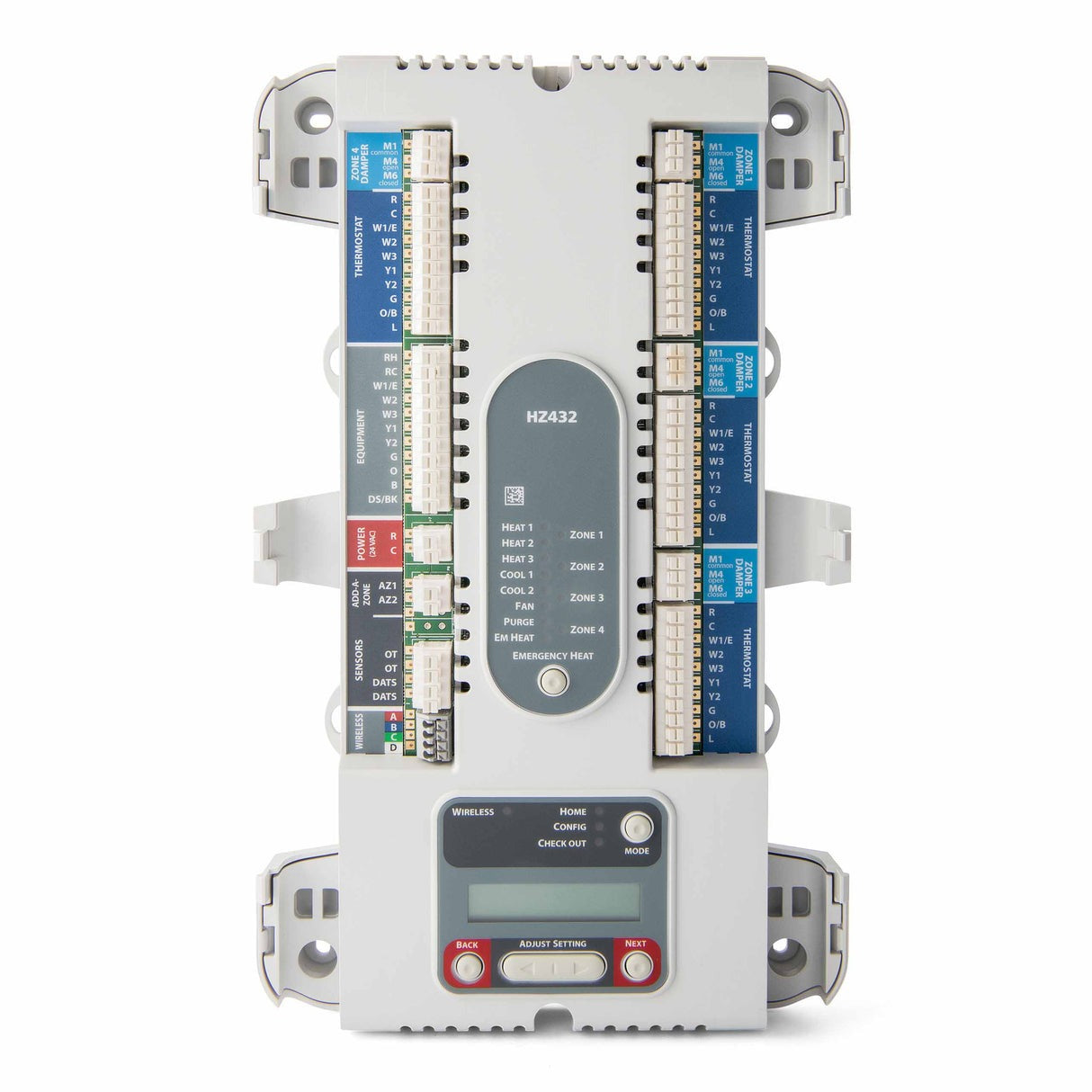

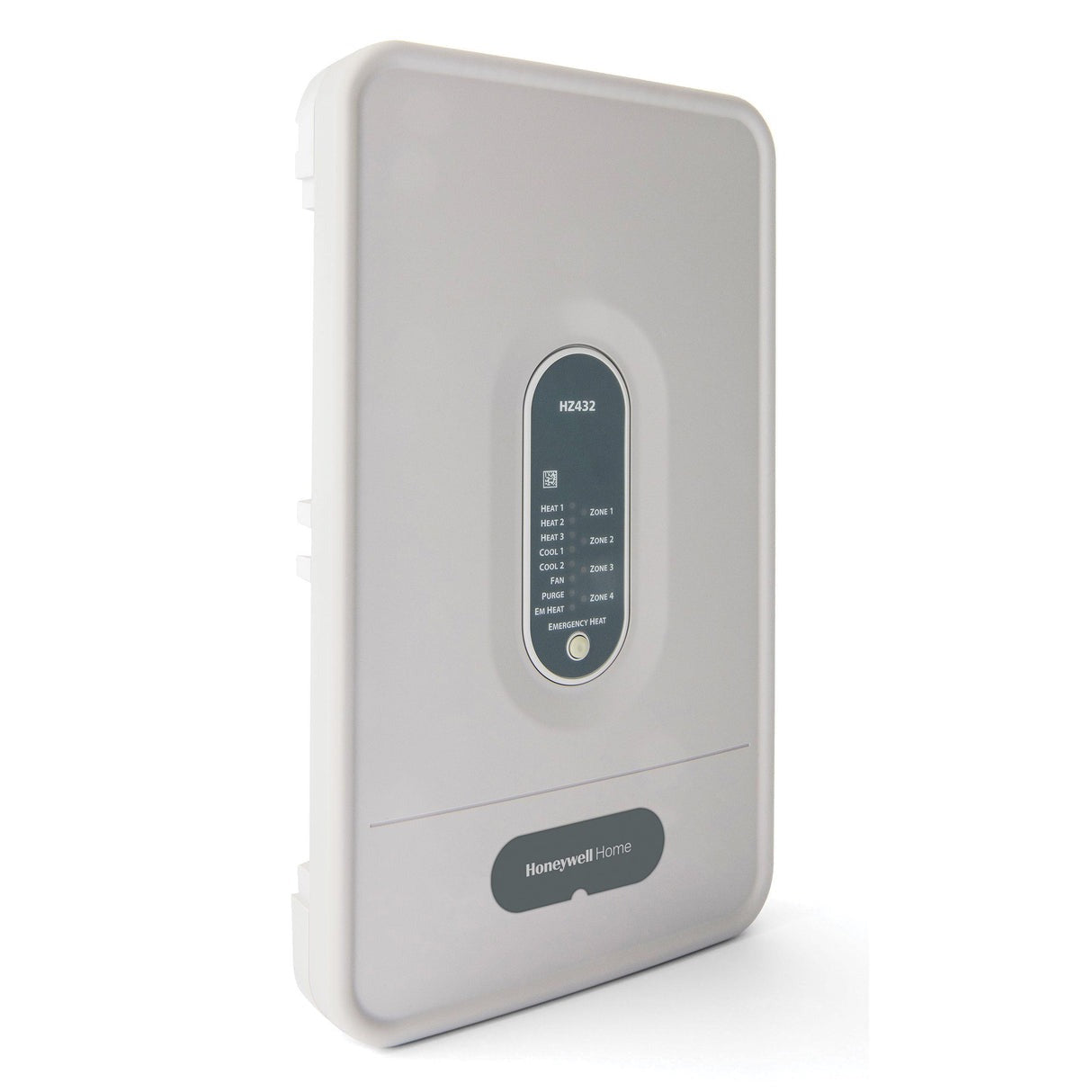

Honeywell Home HZ432K is a TrueZONE Zone Panel Kit for HVAC zoning, supporting conventional, heat pump, or dual-fuel systems for up to 4 zones. The kit operates at 24V and includes the HZ432 zone panel, transformer, and discharge air temperature sensor; the panel provides variable-speed fan control, discharge air temperature staging, LED indicators, and an installer-guided digital setup. Dimensions are 13.42 in H x 8 in W x 1.86 in D.

• Controls up to 4 zones for conventional, heat pump, or dual-fuel systems and supports 3 heat / 2 cool stages.
• Installer-guided digital setup with LED status indicators, robust push terminals, resettable fuse, and emergency heat switch.

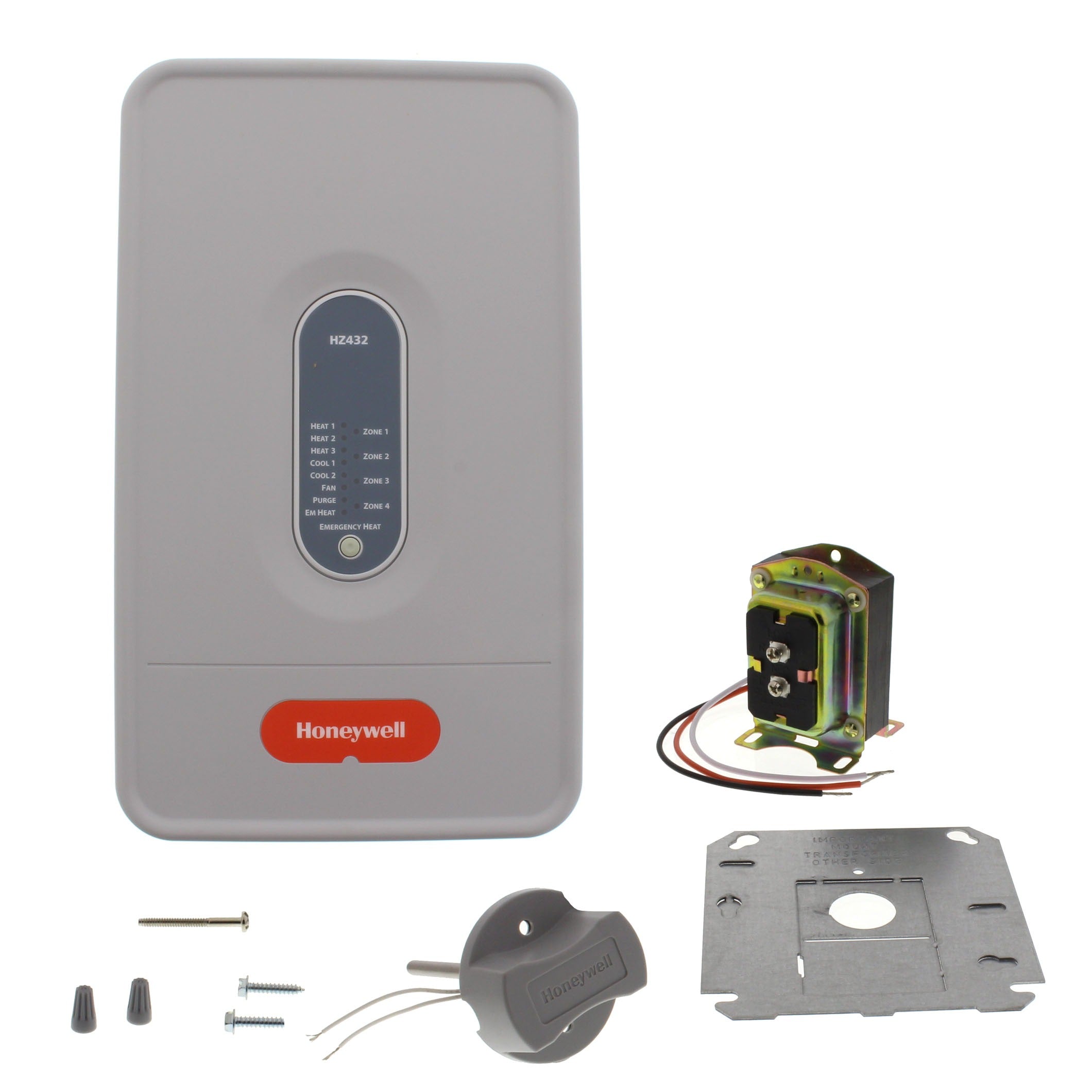

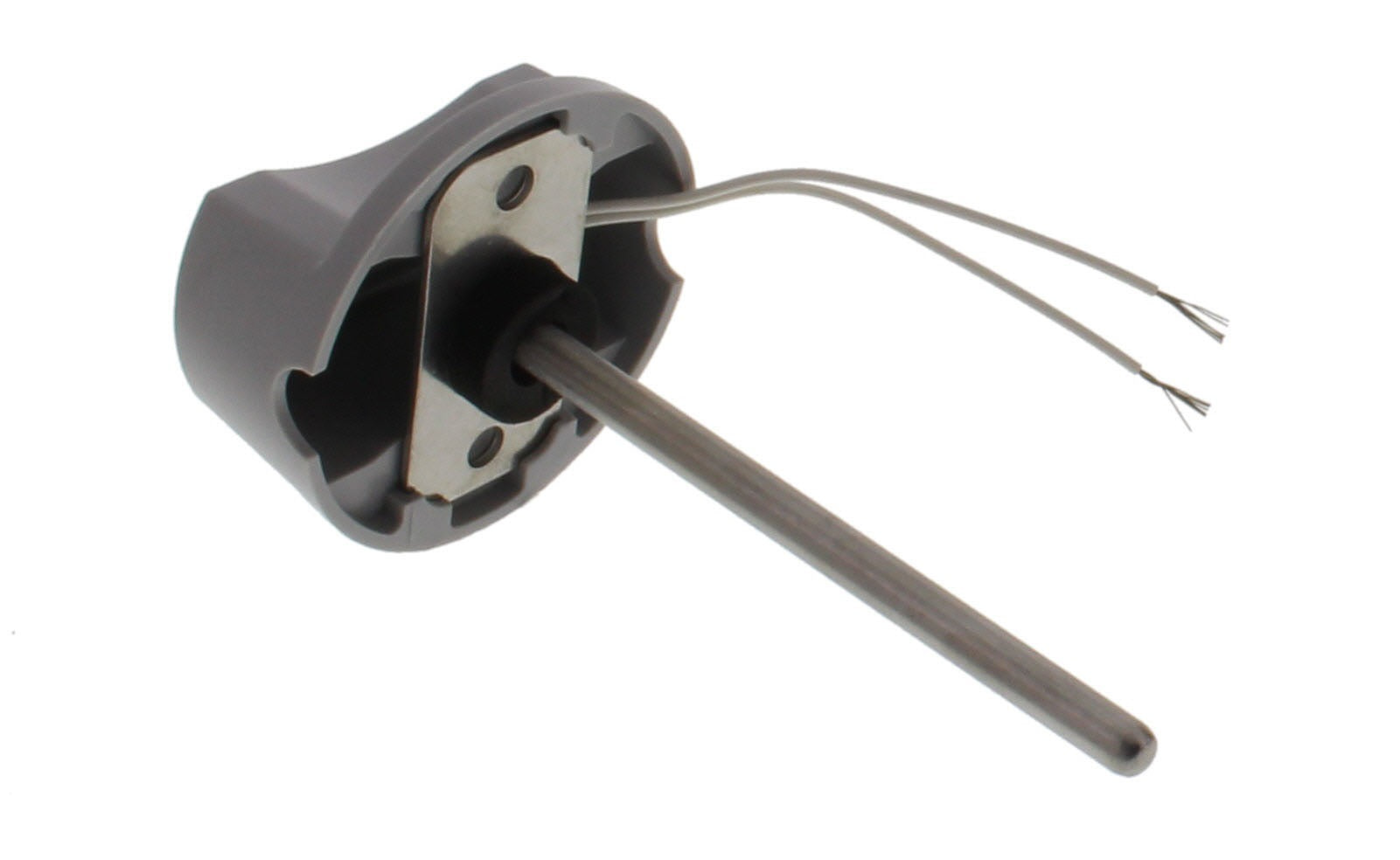

• Includes transformer and discharge air temperature sensor; supports variable-speed fan control and discharge air temperature staging; RedLINK compatible with THM4000R1000.

Product Highlights

4-zone TrueZONE panel kit (24V) with digital installer setup, discharge air staging, and RedLINK compatibility.

Product Information

Standard Information

• Brand: HONEYWELL HOME
• Manufacturer Part Number: HZ432K
• Country of Origin: Mexico
