Honeywell Home HZ311K Truezone kit with Dats HZ311 panel AT140 40VA (3-zone)

Product Description

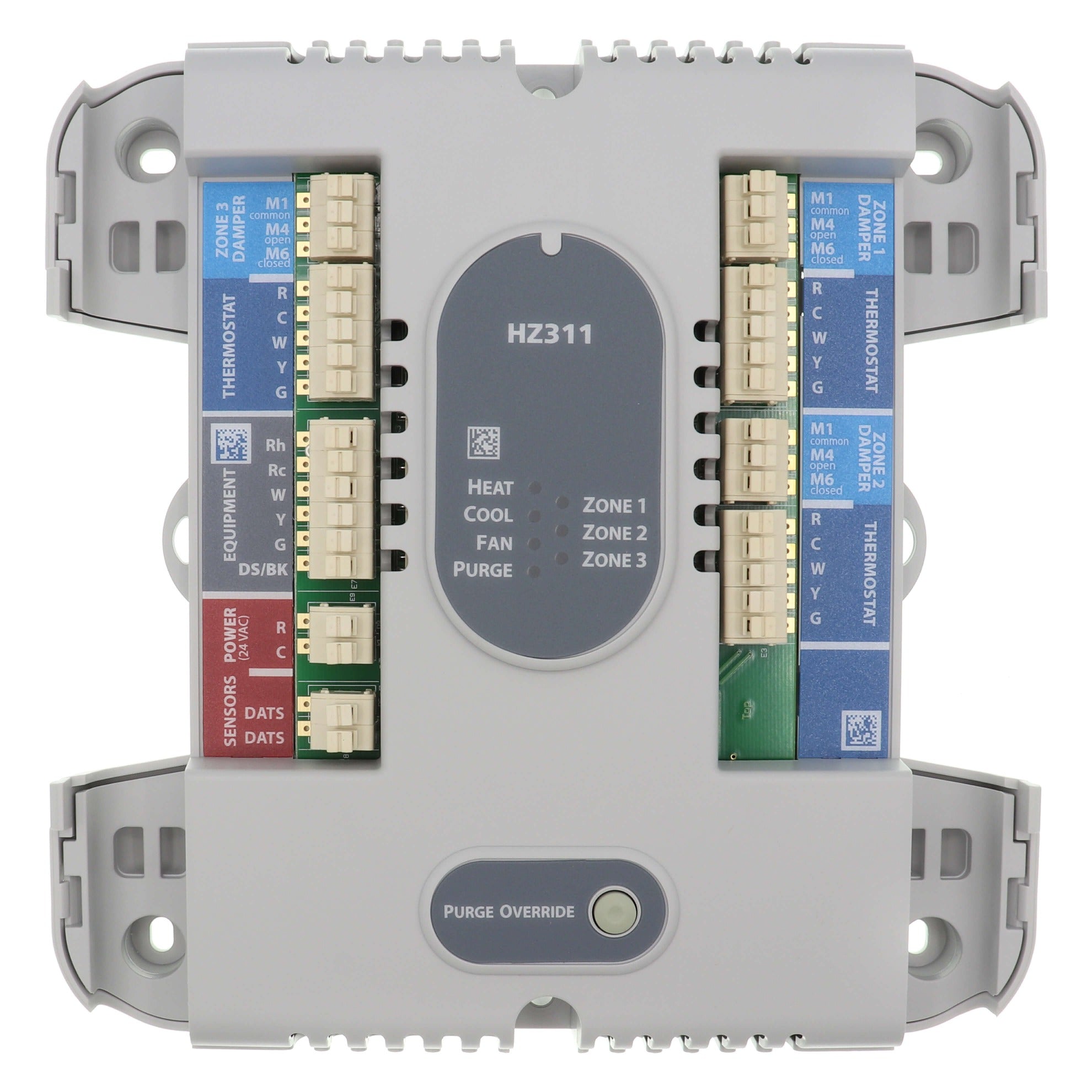

Honeywell Home HZ311K is a Truezone 3-zone control panel kit for conventional single-stage HVAC systems (1 heat / 1 cool). The kit includes the HZ311 panel, AT140 40VA transformer and C7735A discharge air temperature sensor and provides variable-speed fan control, robust push terminals and common-sense LEDs. It operates on 24 VAC nominal, supports 18-20 gauge solid wiring and provides auto changeover and a resettable fuse.

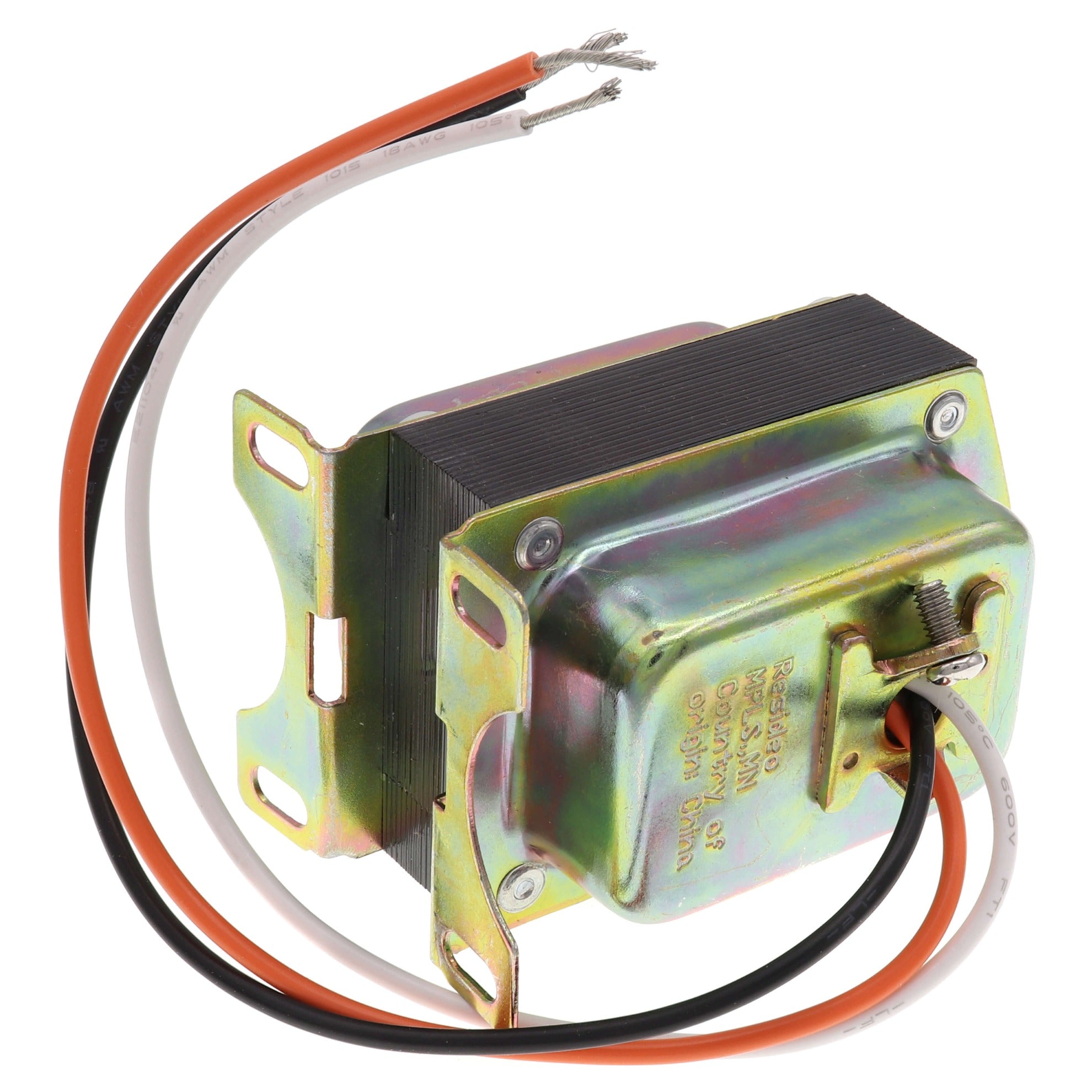

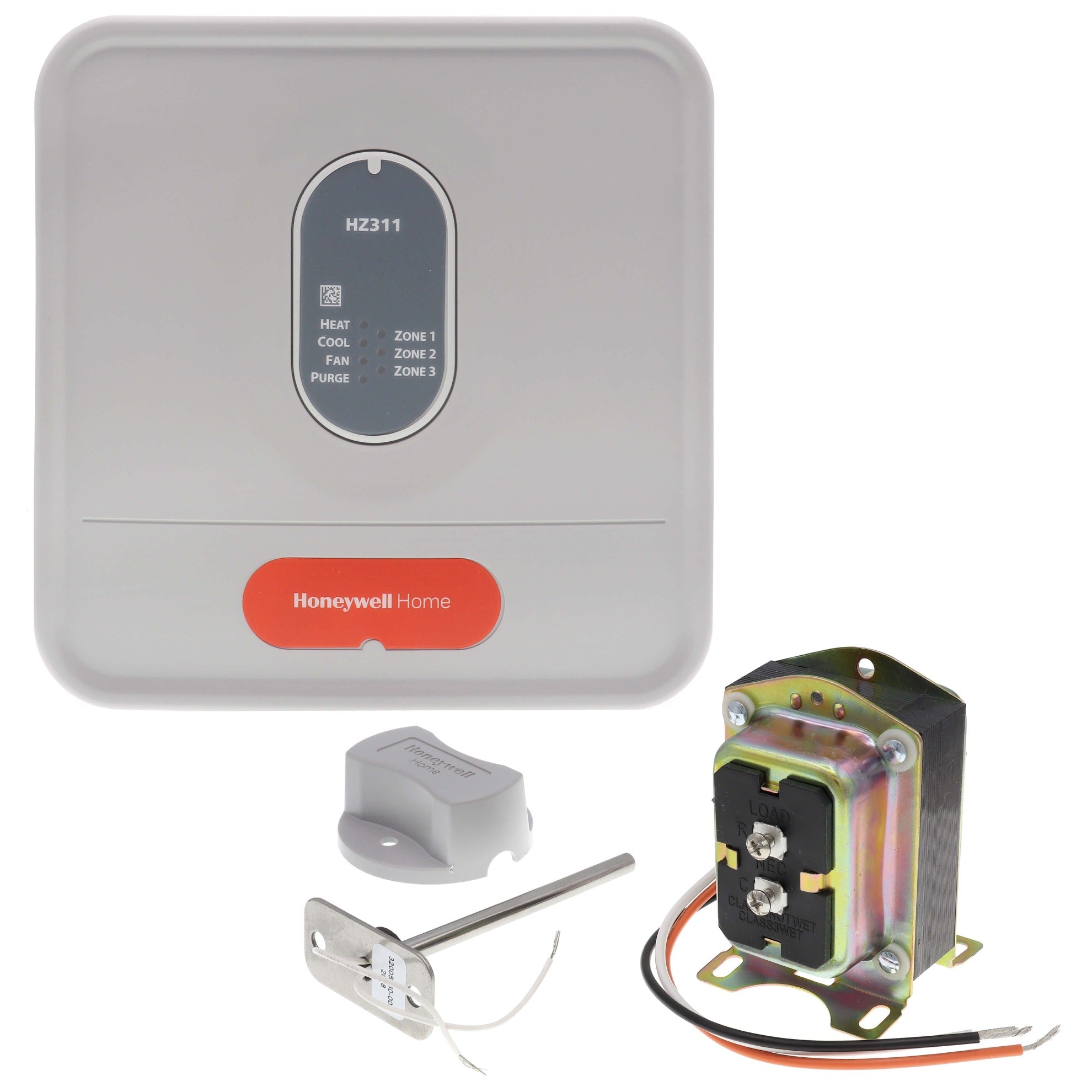

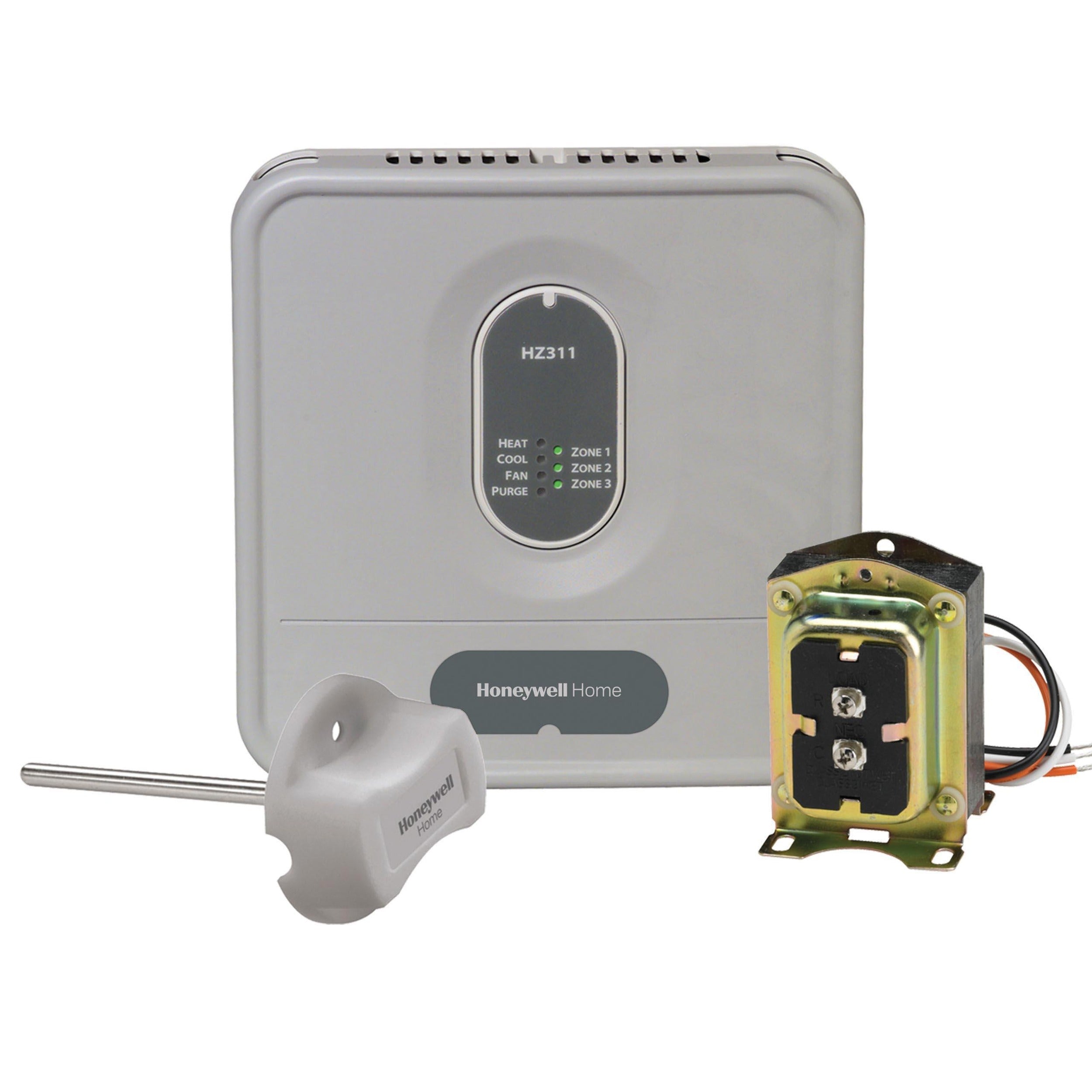

• Includes HZ311 zone panel, AT140 40VA transformer and C7735A discharge air temperature sensor (DATS)
• Supports up to 3 zones for 1 heat / 1 cool conventional systems; not compatible with heat pumps
• Features variable-speed fan control, robust push terminals and LED status indicators; dimensions 8.12 x 8 x 1.86 in; temperature range -40°F to 165°F

Product Highlights

3-zone Truezone kit for conventional 1H/1C systems; includes AT140 40VA transformer and C7735A DATS; 8.12 x 8 x 1.86 in; 24 VAC nominal, 50/60 Hz.

Product Information

Standard Information

• Brand: HONEYWELL HOME
• Manufacturer Part Number: HZ311K
• Country of Origin: Import
