Resideo HZ221K/U TrueZONE Kit—DATS/Transform/HZ221 Panel

Product Description

Resideo HZ221K/U is a Temperature Zoning System designed for efficient heating and cooling. This kit helps manage temperature levels across different areas in a home. It operates through dampers installed in the ductwork and adjusts according to thermostat settings in each zone. This capability allows homeowners to choose specific temperatures in different rooms, improving energy efficiency.

This zoning system can be paired with a T10 Pro Smart Thermostat and RedLINK sensors. When certain areas do not require heating or cooling, the dampers close, preserving energy and enhancing comfort elsewhere in the home.

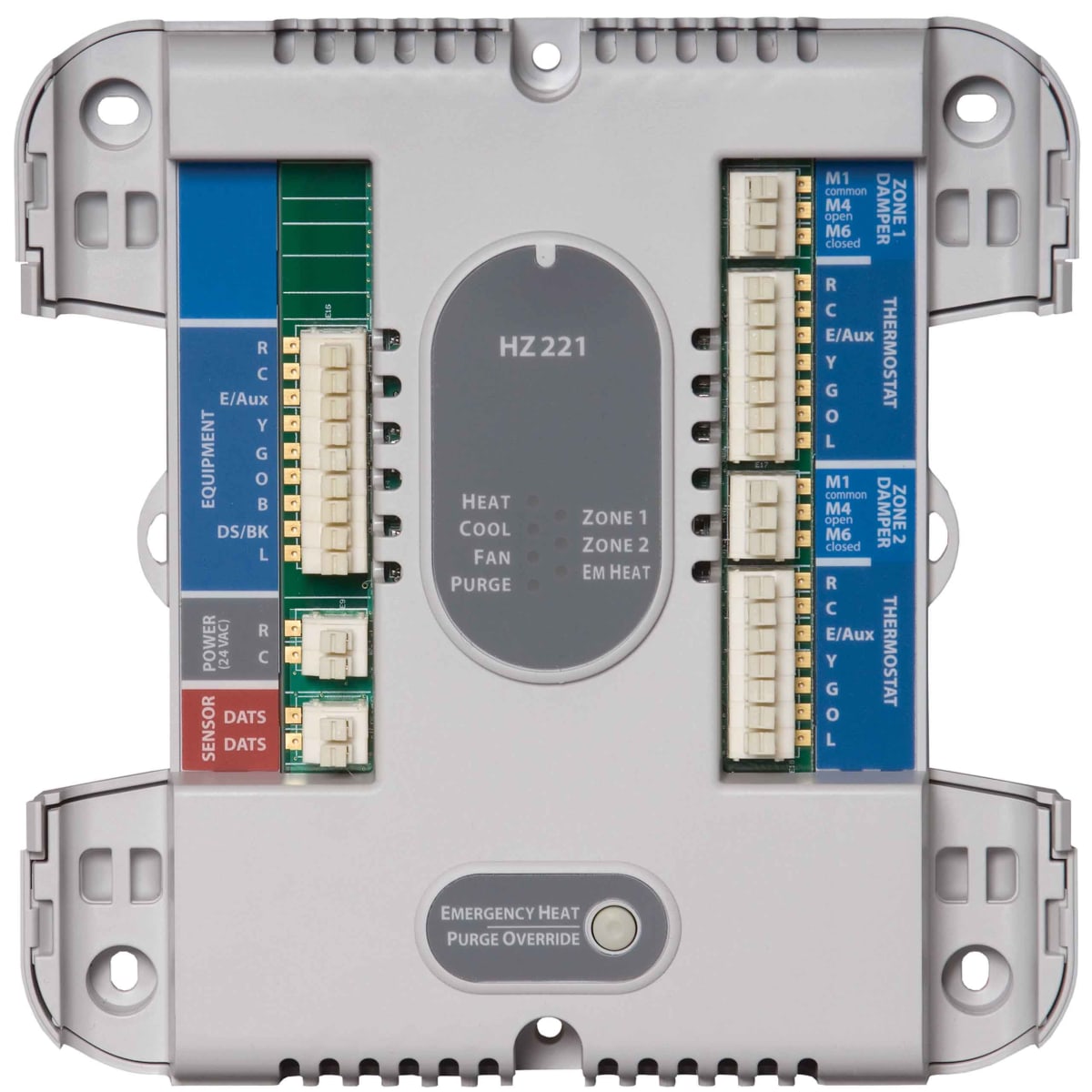

• Robust push terminals for easy connections
• Clean installation for a professional look
• Supports variable-speed fan control

Product Highlights

This product promotes energy efficiency and comfort through effective temperature control and convenient installation.

Product Information

Standard Information

• Brand: Resideo
• Part #: HZ221K/U

Technical Specifications

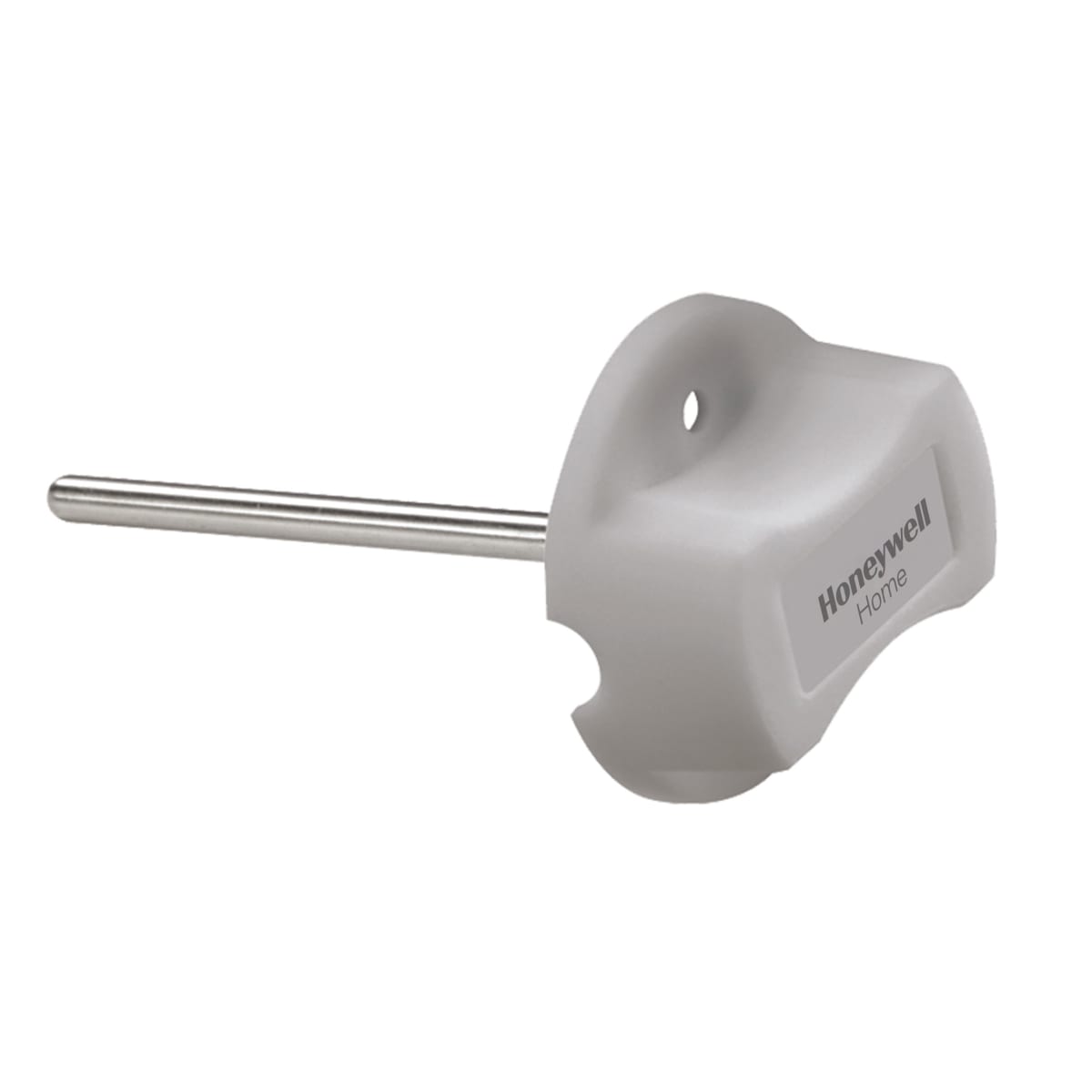

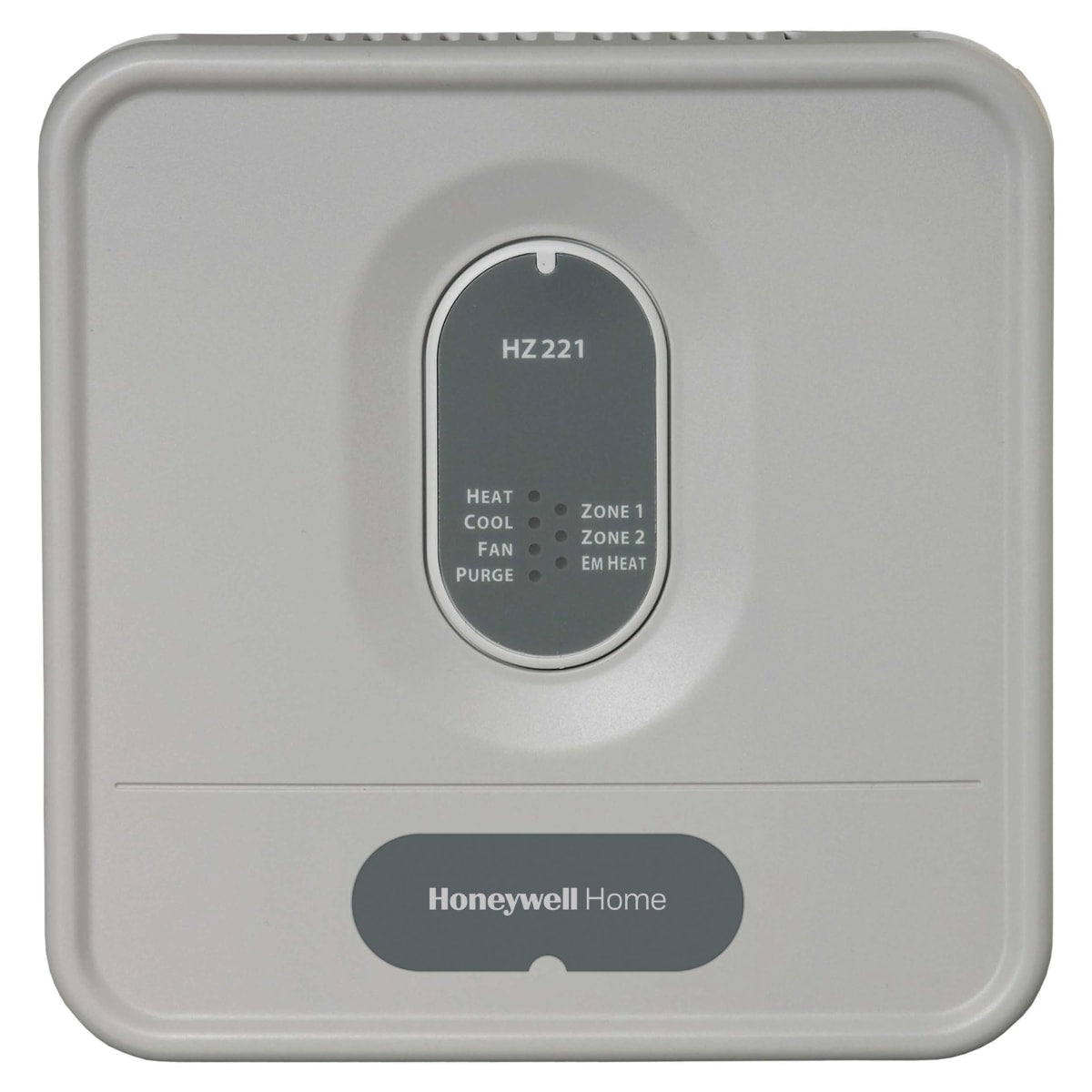

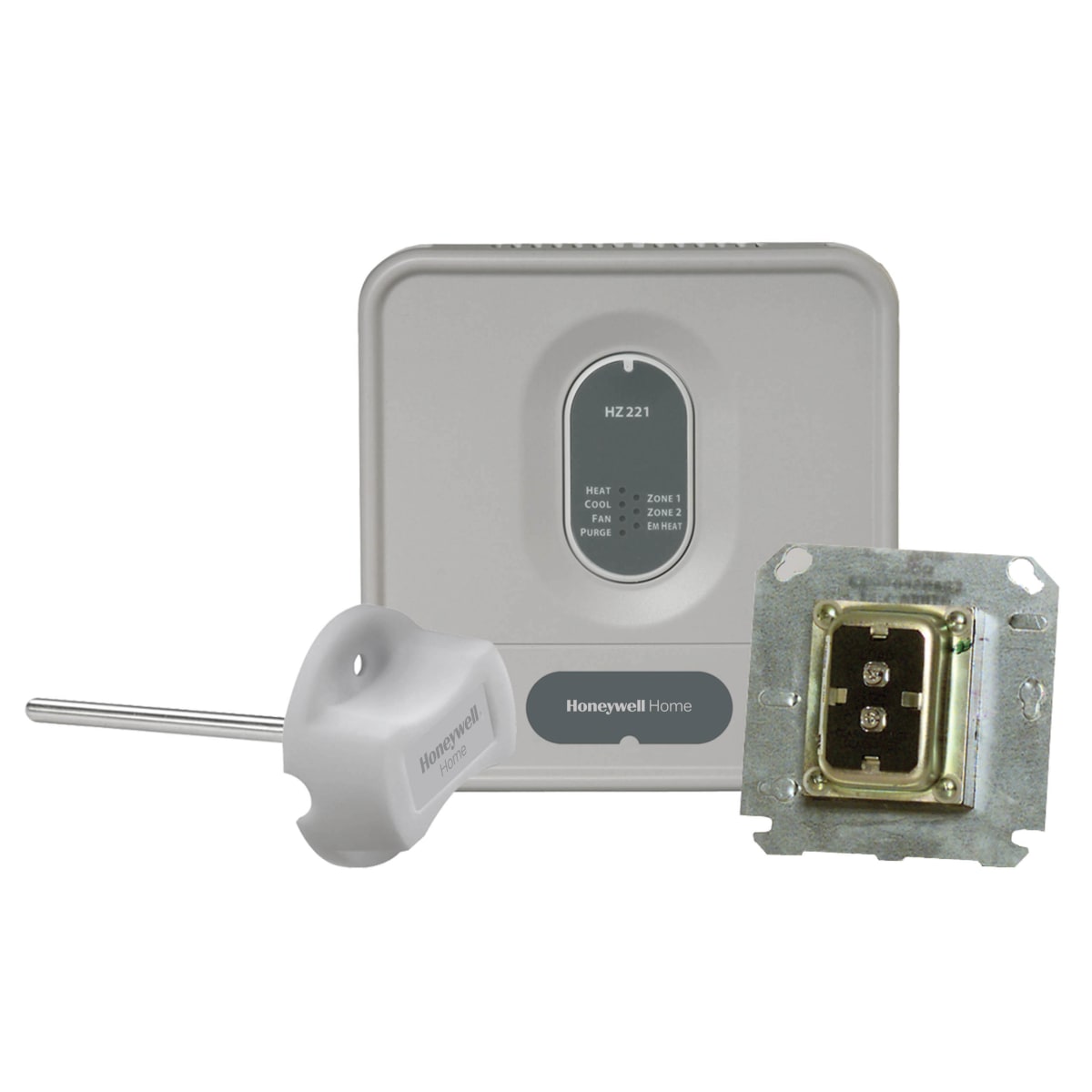

• Includes: HZ221 Zone Control Panel, AT140 Transformer, C7735A Discharge Air Temperature Sensor
• Weight: 4.05 lb.
• Dimensions: 8 inches (Height) x 8 inches (Length) x 1.86 inches (Width)
• Operating Voltage: 24V AC
• Temperature Stages: Up to 2 Heat/1 Cool
• Compatible With: RedLINK Technology and Single Stage Heat Pumps
