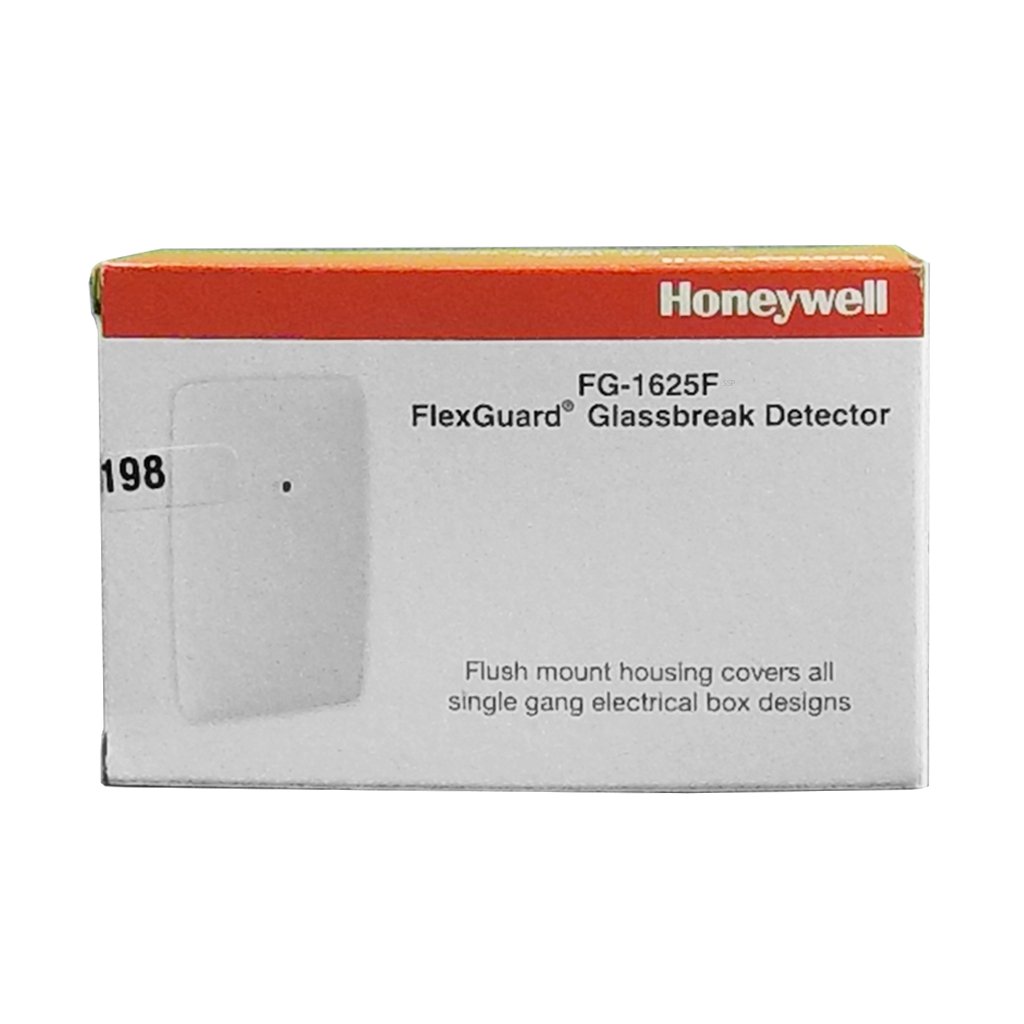

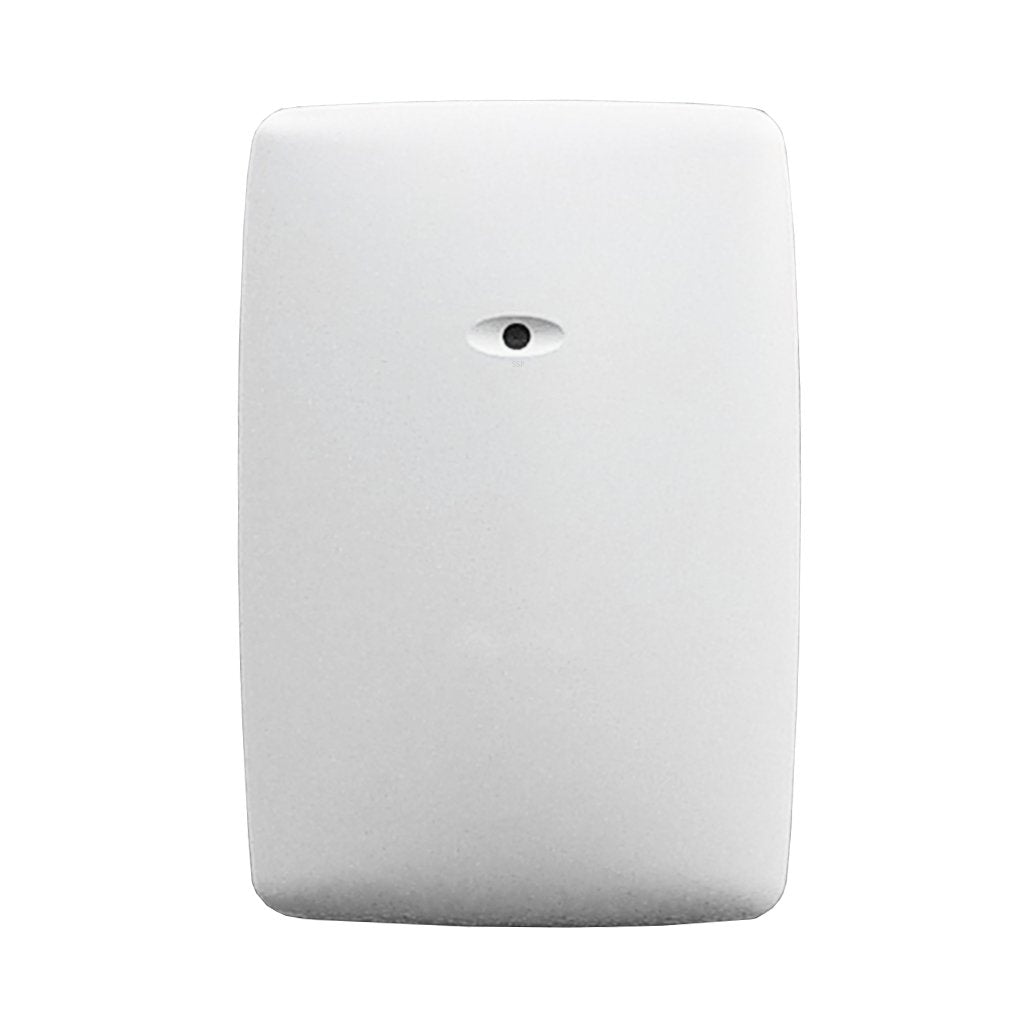

Honeywell Home FG1625F FlexGuard Flush-Mount Glassbreak Detector, 25 feet Range

Product Description

The Honeywell Home FG1625F FlexGuard flush-mount glassbreak detector uses the latest technology to provide faster response and increased false alarm immunity. Designed for fast, easy installation, its adjustable sensitivity settings compensate for room acoustics. It can be quickly verified using the FG-701 Glassbreak Simulator and adequately covers all sizes of single gang electrical boxes.

• Features FlexCore Signal Processor
• Offers selectable sensitivity with four different sensitivity levels available
• Mounts on any wall or ceiling with no minimum range and a maximum range of 25' to the glass

Product Highlights

The Honeywell Home FG1625F glassbreak detector distinguishes between real breaking glass and false alarms. It is easy to install and setup and can be remotely tested.

Product Information

Standard Information

• Brand: Honeywell Home
• Manufacturer Part Number: FG1625F
• Country of Origin: China

Technical Specifications

• Brand Name: Honeywell Home
• Manufacturer: Resideo
• Product Line: FlexGuard
• Product Name: FlexGuard FG-1625F Audio Detector
• Product Type: Glass Break Detector
• Product Model: FG-1625F
• ADI Part Number: CK-FG1625F
• Application/Usage: Security System Sensors
• Additional Information: 25' Maximum range Flush mount design No minimum range
• Manufacturer Part Number: 0-001-030-01
• Depth: 7/8"
• Width: 2.76
• Height: 4.5"
• Range: 25' (7.6m) maximum, omnidirectional. Range is adjustable; no minimum range
• Power Requirements: 6 - 18VDC, 12mA typical at 12VDC; 22mA max (Latched LED) AC ripple: 4V peak-to-peak at nominal 12VDC
• Operating Temperature: 14° to 122° F (-10° to 50° C)
• Storage: -4° to 122° F (-20° to 50° C)
• Maximum Range: 300 Inches
• Mounting Type: Wall Mount
• Number of Batteries: 1 CR123A batteries required.
• Item model number: FG1625F
• Batteries: 1 CR123A batteries required.
• Product Series: FlexGuard
• Country of Origin: CN
