Honeywell Home ARD20TZ 20 Inch Round Automatic TrueZONE Damper

Product Description

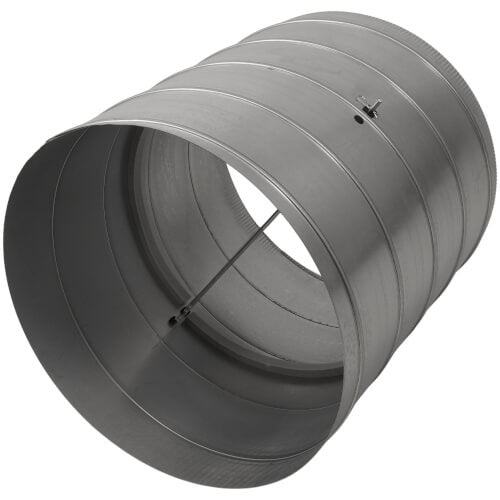

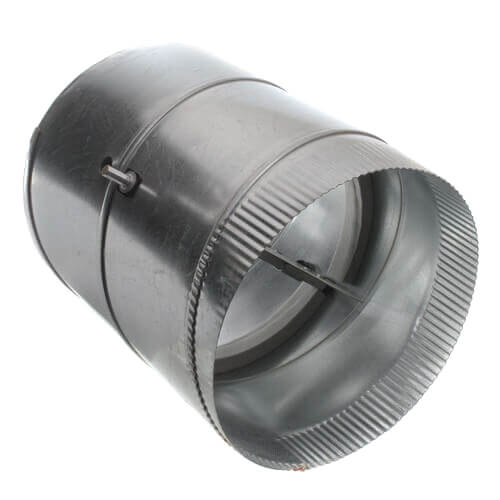

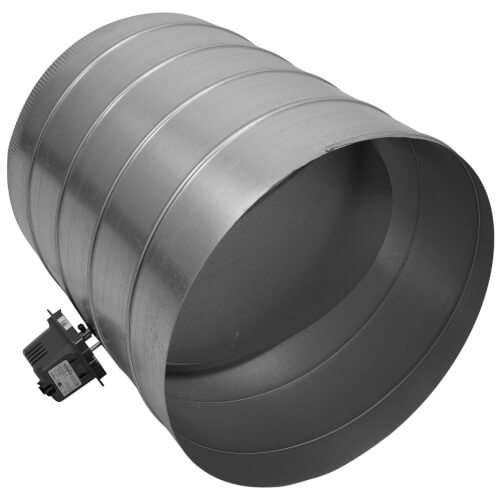

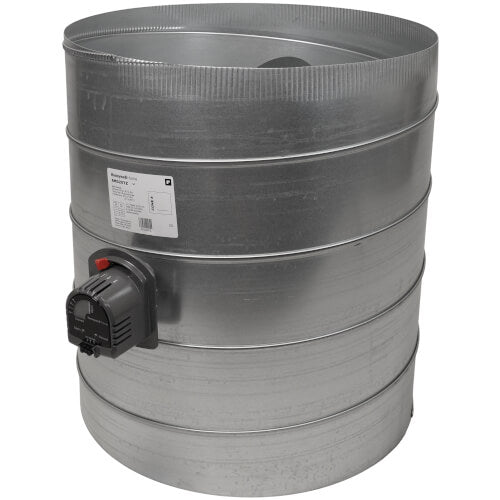

The Honeywell Home ARD20TZ is a 20-inch round automatic TrueZONE damper designed for efficient air circulation control in HVAC systems. This high-quality damper is crafted from galvanized steel and features a single-blade design that minimizes air leakage.

• Power-close, spring-open mechanism ensuring reliable performance.
• Compatible with Honeywell Zoning Systems for optimal adaptability.
• Field-convertible functionality suited for independent zones or fresh air intake.

Product Highlights

Rated to operate up to one inch wc, the ARD20TZ is ideal for a variety of installation sizes ranging from five to 18 inches in diameter.

Product Information

Standard Information

• Brand: Honeywell Home
• Application: Air Quality Control

Technical Specifications

• Motor: Reversible, Power Closed, Spring Open
• Material: Galvanized Steel
• Size: 20 inches
• Shape: Round
• Voltage: 24v
• Motor Mount: Top, Side
• Motor Timing: 10 seconds Spring Return, 30 Seconds Power Closed
• Wires to Motor: 2
