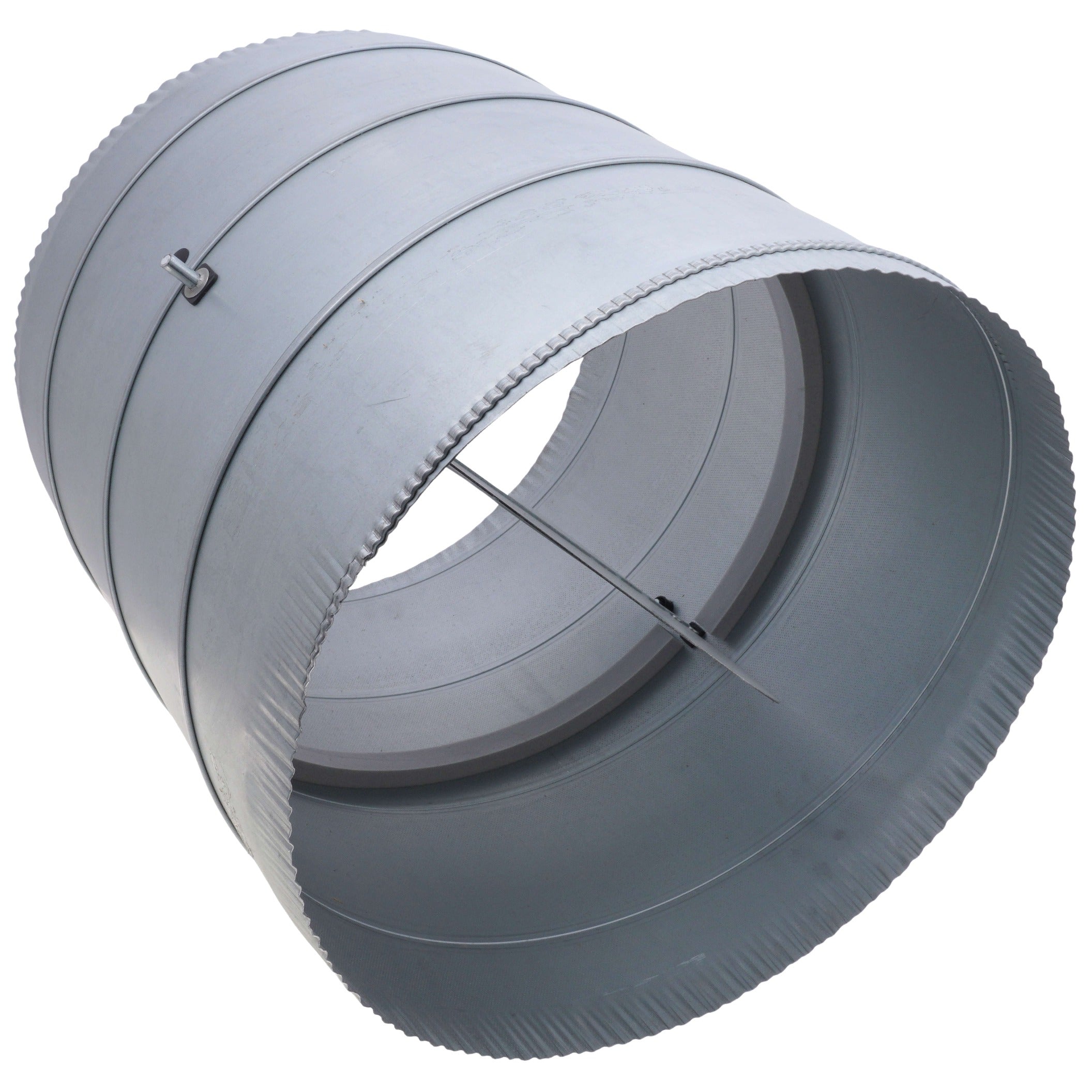

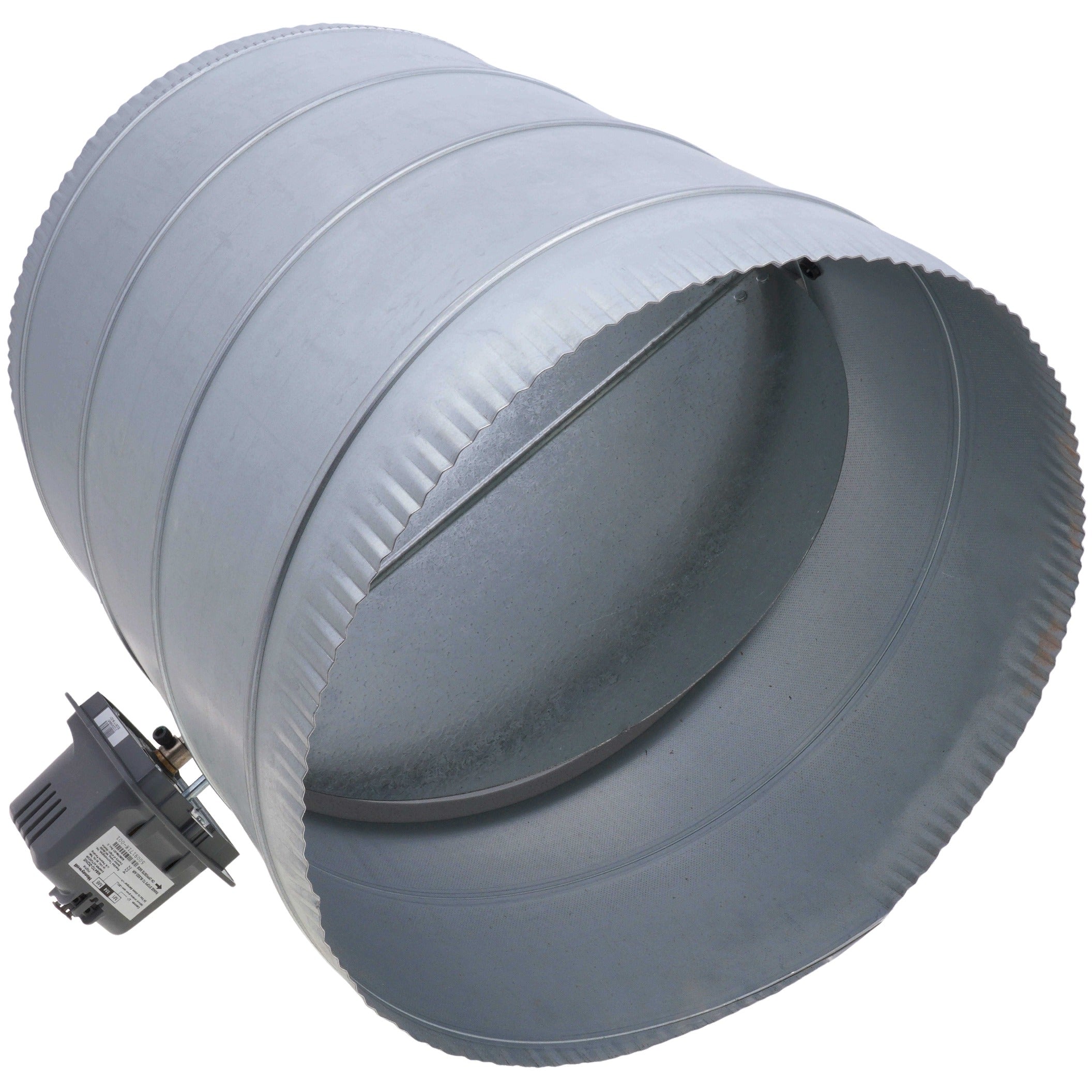

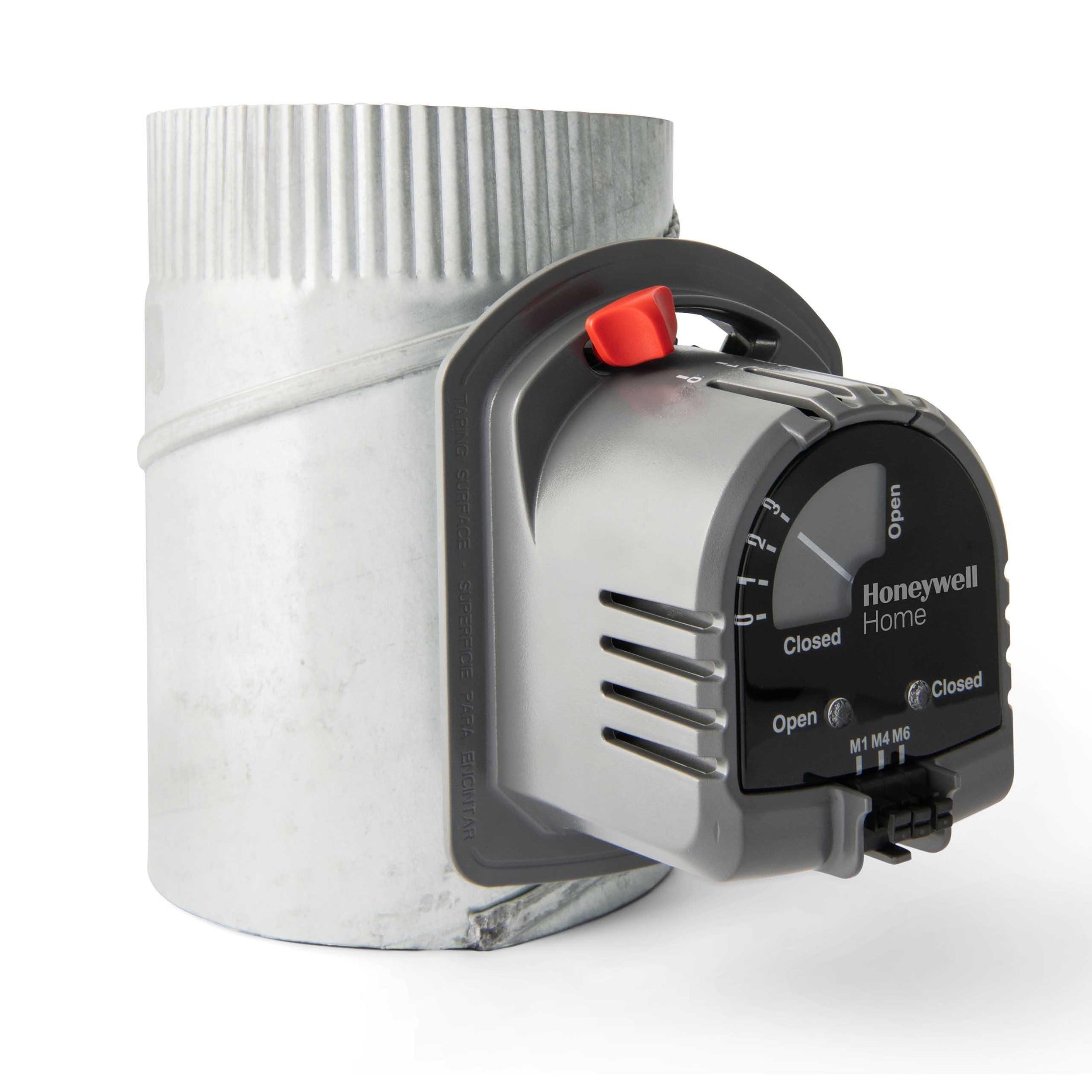

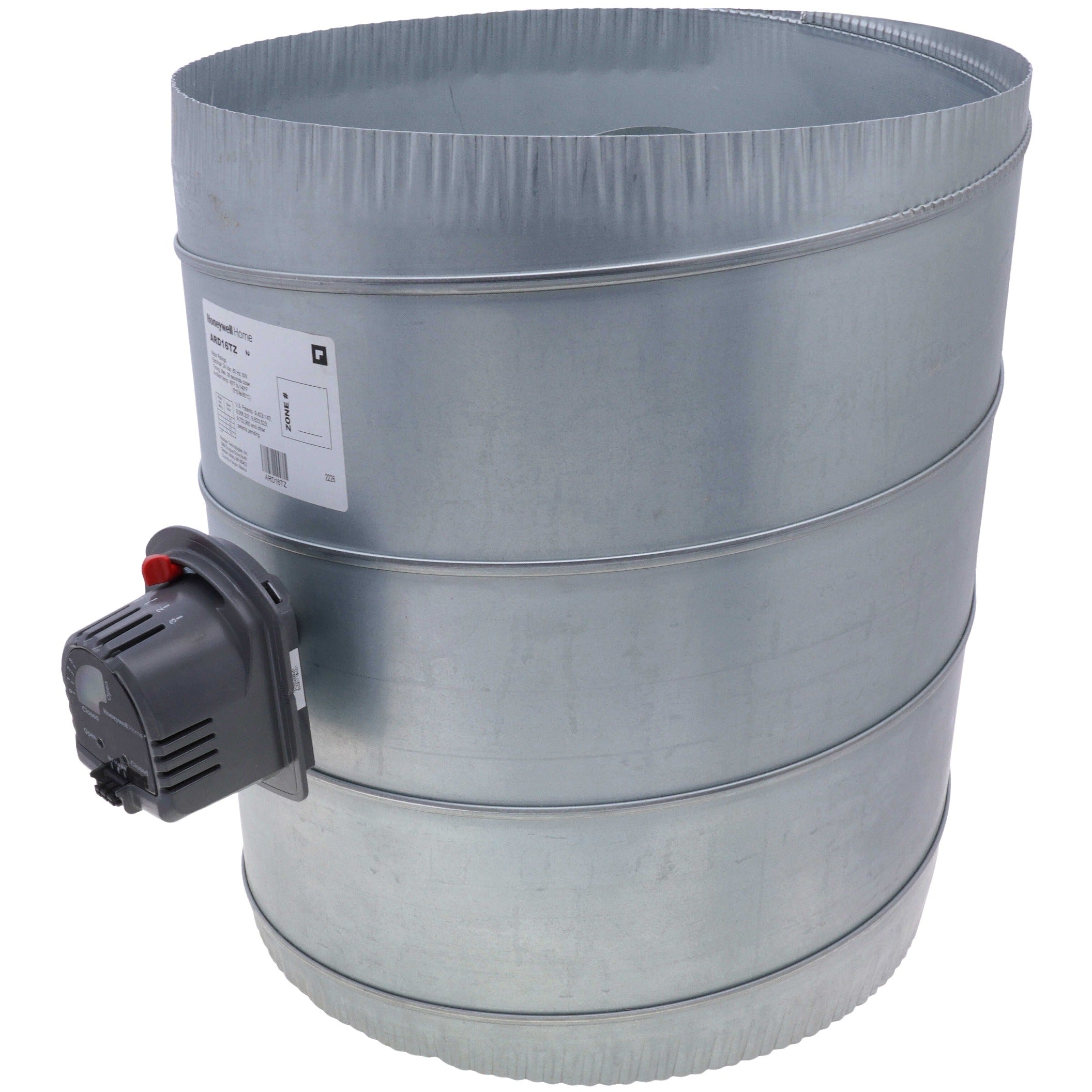

Honeywell Home ARD16TZ 16 inches Round Automatic TrueZONE Damper 24V (16 in) Replaces ARD16

Product Description

The Honeywell Home ARD16TZ is a 16 in round automatic TrueZONE damper designed to control airflow in heating, cooling, and ventilation systems. The galvanized steel single-blade damper is power-closed and spring-open, closes against a gasket for low leakage, and is rated to operate up to 1 inch water column. It uses a 24 V motor, supports top or side motor mounting, and can be field-converted for independent zone or fresh air intake.

• Galvanized steel single-blade construction with gasket for minimal leakage; nominal 16 in diameter
• Power-closed / spring-open motor operation, 24 V, motor timing ~30 s power-close and 10 s spring return; two-wire connection
• Rated to operate up to 1 in WC; top or side motor mount; field-convertible for independent zone or fresh air intake

Product Highlights

16 in round, single-blade galvanized damper; 24 V power-close/spring-open motor; rated to 1 in WC for HVAC zoning

Product Information

Standard Information

• Brand: HONEYWELL HOME
• Manufacturer Part Number: ARD16TZ
• Country of Origin: Import
