Honeywell Home ARD14TZ 14 inches Round Automatic TrueZONE Damper 24V (14 Inch) Replacement ARD14

Product Description

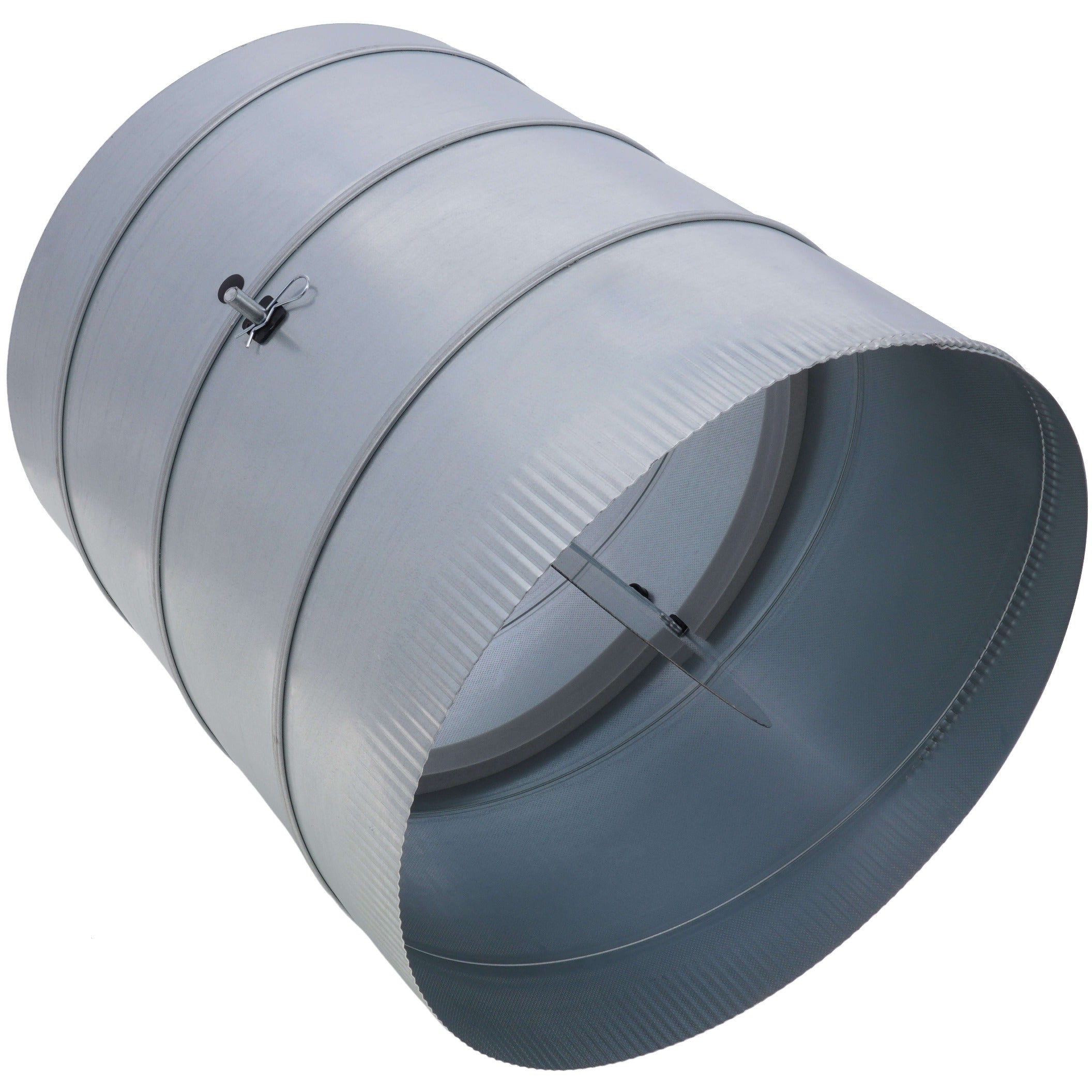

Honeywell Home ARD14TZ is a 14-inch round automatic TrueZONE damper that controls circulating air in heating, cooling, and ventilation systems. It is a power-closed/spring-return-open single-blade damper constructed of galvanized steel that closes against a gasket to minimize leakage. The unit uses a 24V reversible motor with 90° rotation, top or side motor mounting, 10s spring return / 30s power-close timing, and is rated to 1 inch WC.

• Power-closed / spring-return-open operation with 24V reversible motor and 90° angular rotation
• Galvanized steel single-blade damper closes against gasket for minimal leakage; field-convertible for independent zone or fresh air intake
• Top or side motor mounting, 2-wire motor, motor timing: 10s spring return / 30s power closed; rated to operate up to 1 inch WC

Product Highlights

14-inch galvanized steel automatic damper, 24V motor, 90° rotation, fail-safe spring-open, rated to 1 in. WC

Product Information

Standard Information

• Brand: HONEYWELL HOME
• Manufacturer Part Number: ARD14TZ
• Country of Origin: Mexico
