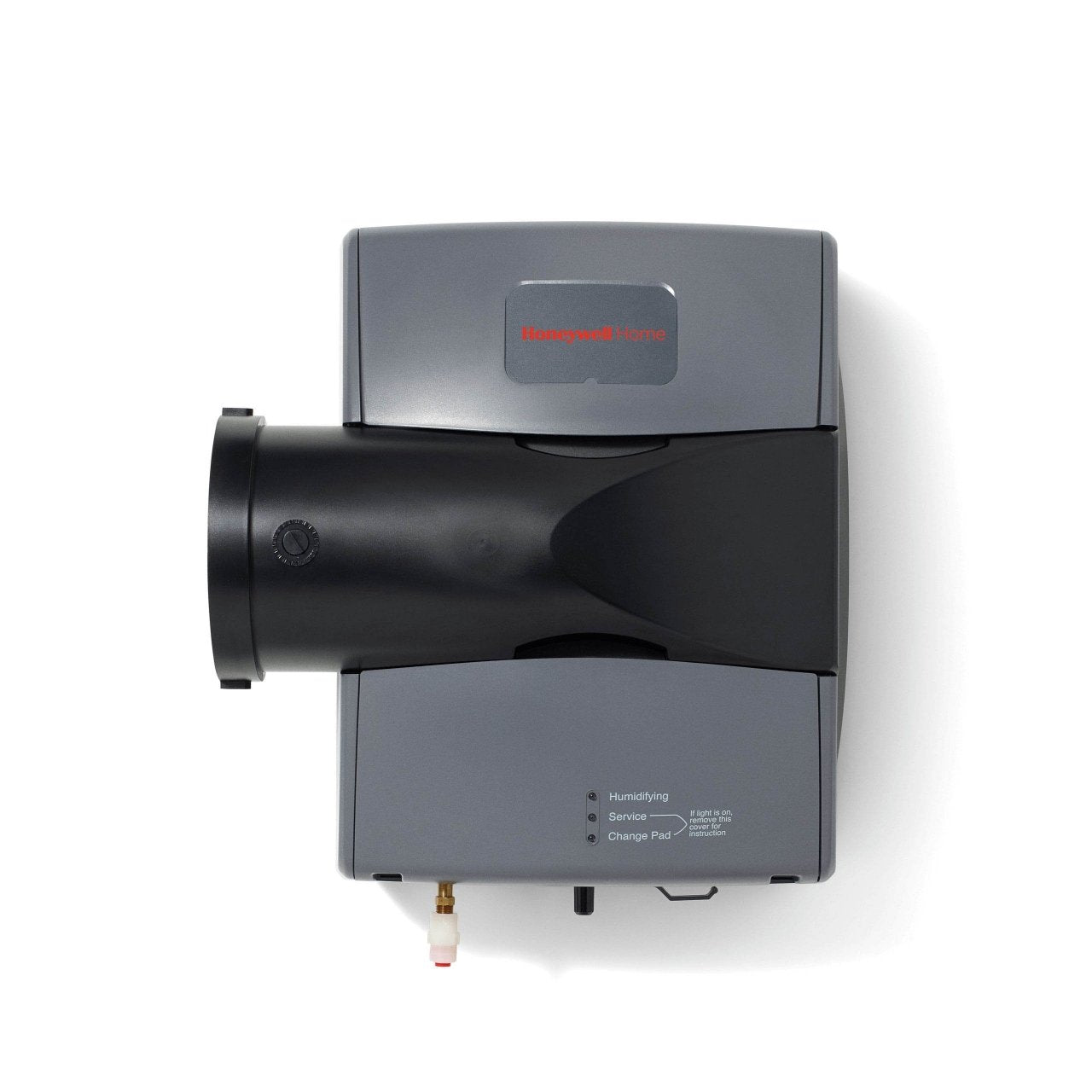

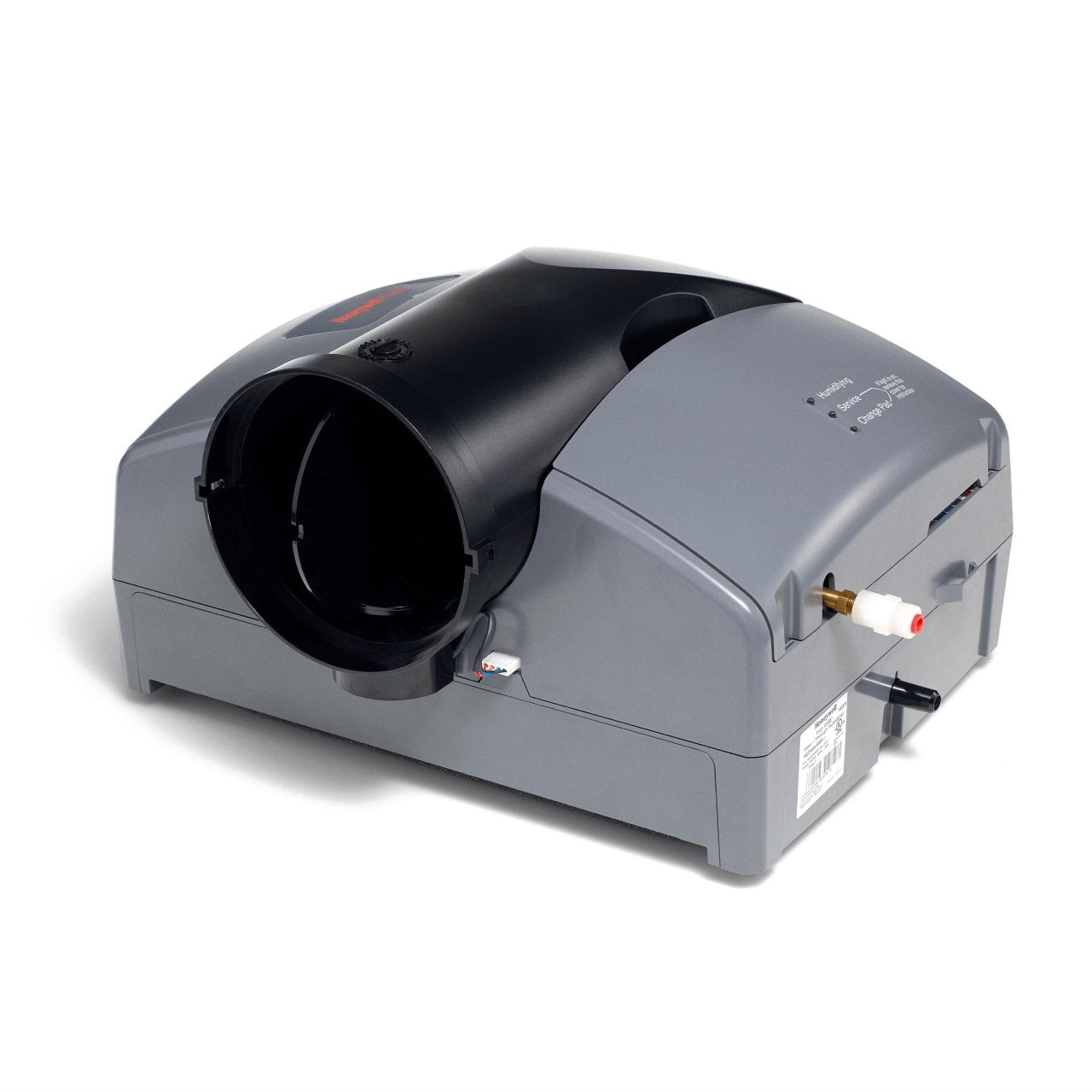

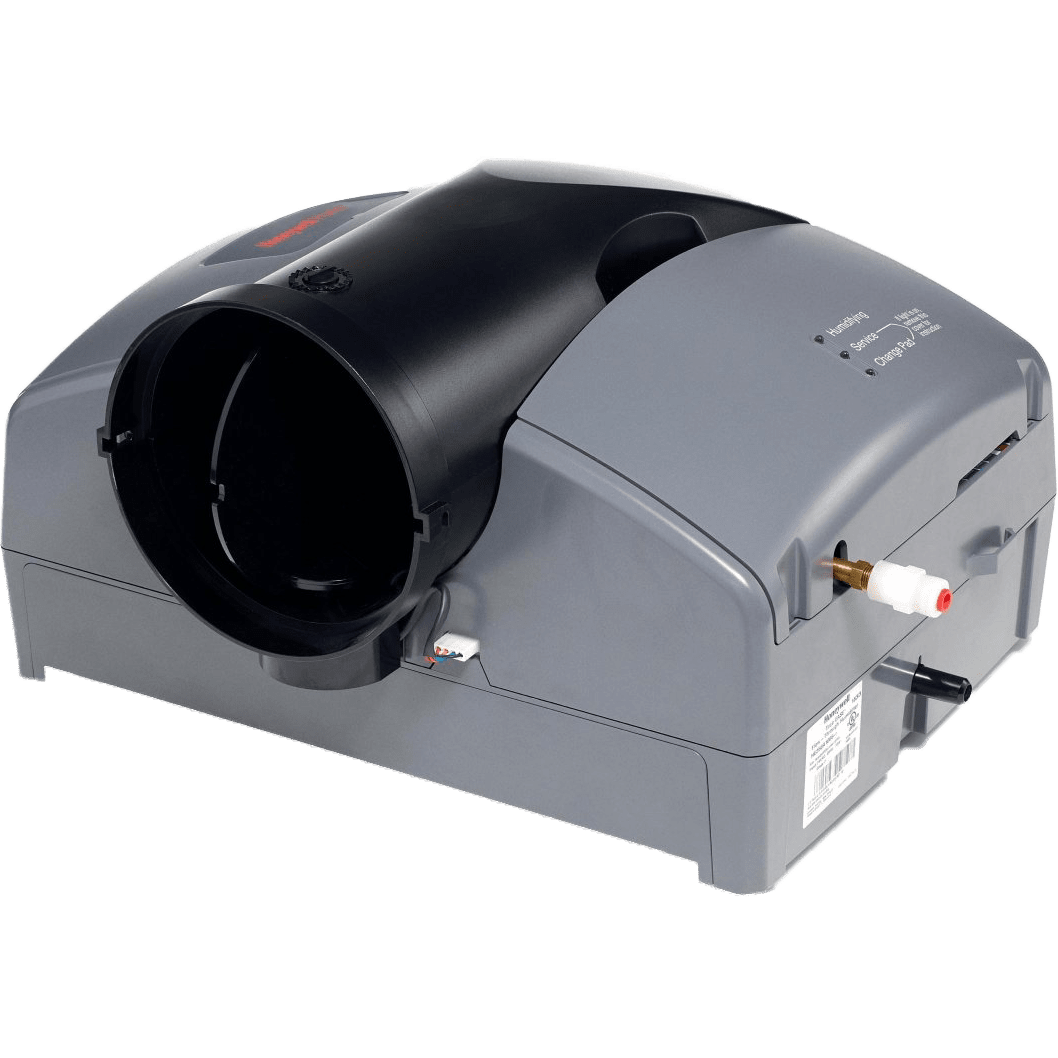

Honeywell HE250A1005/U True Ease Large Advance Bypass Evaporative Humidifier 24 VAC 17 gal/day

Product Description

The Honeywell HE250A1005/U is a True Ease large advance bypass evaporative humidifier that provides up to 17 gallons per day capacity for residential and light commercial spaces. The unit operates as an evaporative bypass humidifier with touch control and integrates into HVAC systems to deliver humidity control. It is designed for use in offices, living rooms, bedrooms and other ducted applications and fits a 6 in duct.

• Bypass evaporative design with up to 17 gallons per day nominal capacity
• Control method: touch control; operates at 24 VAC, 0.75 A
• Quick-snap bypass adjustment and slide-out humidifier pad for maintenance

Product Highlights

Whole-house bypass humidifier; 17 gpd capacity; 24 VAC operation

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: HE250A1005/U

Technical Specifications

• Brand: Honeywell
• MPN: HE250A1005/U
• Model Name: Evaporative humidifier
• Series: HE250
• Humidifier Type: Bypass, evaporative (flow-through)
• Humidification Capacity: 17 gpd (17 gallons per day)
• Control Method: Touch

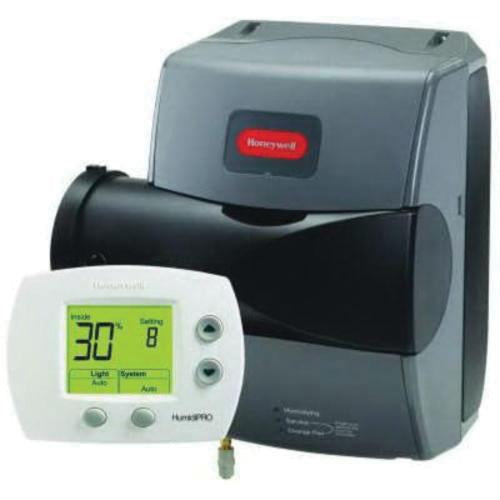

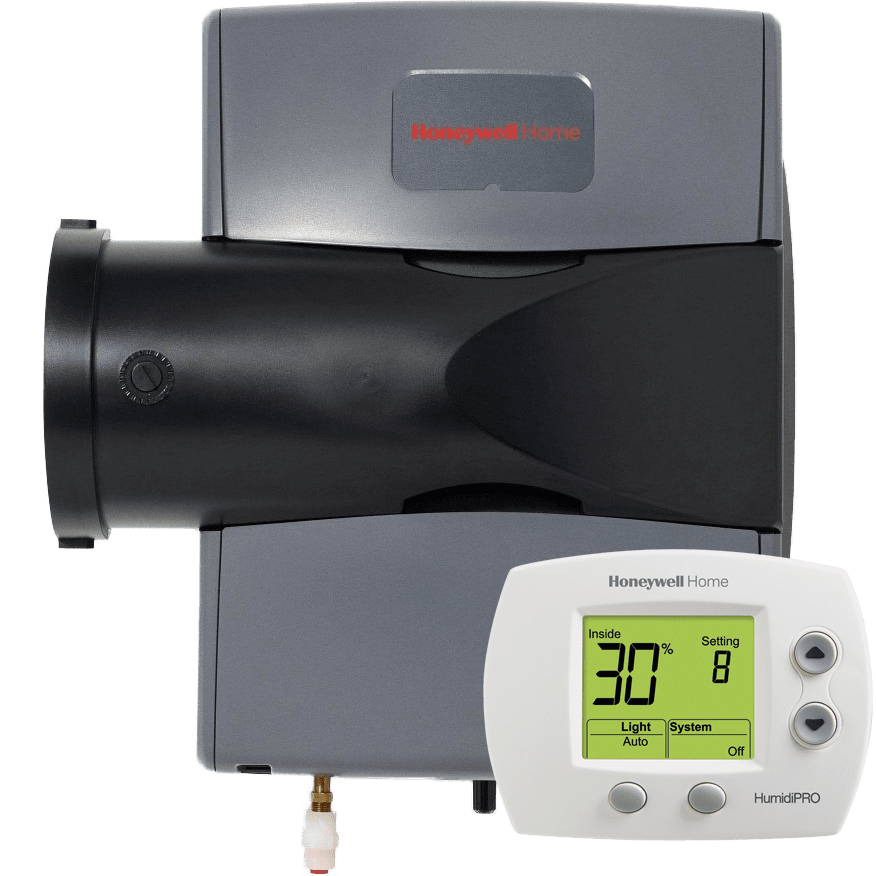

• Includes: H6062 digital humidity control and outdoor sensor (in some configurations)
• Input Voltage: 24 VAC
• Current: 0.75 A
• Power Supply Frequency: 60 Hz
• Dimensions: 17.15 in H x 15.0 in W x 10.1 in D
• Plenum Opening: 12-5/8 in H x 9-3/4 in W
• Duct Size: 6 in
• Operating Temperature Range: 34 to 90 F
• Static Pressure (Max): 0.3 in wc
• Fill Type: Direct water line
• Humidity Control Range: 10-45% (specified range in some listings)
• Recommended Coverage Area: Up to 2,500 sq. ft. (per some listings)
• Recommended Service Life: Approximately 10 years
• UPC: 085267819213
• Features: Quick-snap bypass direction adjustment; slide-out replaceable pad; timer-metered solenoid to wet pad only as needed; front status LEDs on advanced models
