Honeywell HE100A1000/U Furnace Humidifier 12 GPD (2000 sq. ft) HO15146

Product Description

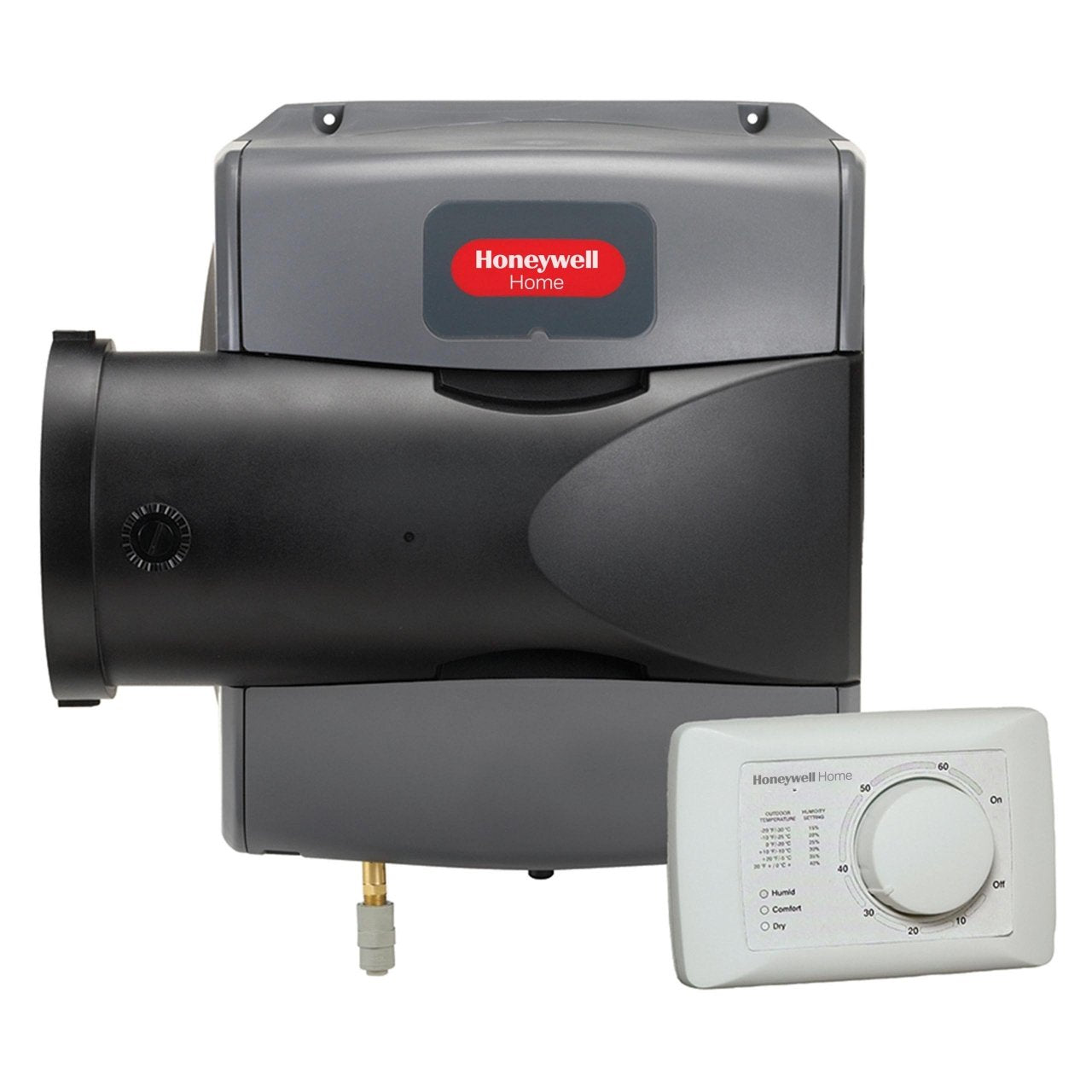

Honeywell HE100A1000/U is a bypass drain evaporative furnace humidifier that provides whole-home humidification for up to 2000 sq. ft and delivers up to 12 gallons per day. The unit operates at 24 VAC, features automatic water refill, and uses an antimicrobial-coated slide-out pad for maintenance. It includes the HumidiPRO digital humidity control for integration with a central HVAC system and is designed for low-maintenance, continuous operation.

• Bypass drain evaporative humidifier with up to 12 gallons per day capacity and coverage up to 2000 sq. ft.
• Operates at 24 VAC with automatic water refill, antimicrobial-coated slide-out pad, quick-connect plumbing gasket, and interchangeable bypass orientation.
• Includes HumidiPRO digital humidity control; designed for whole-home integration with central heating and cooling.

Product Highlights

Bypass evaporative humidifier; 12 GPD capacity; includes HumidiPRO digital control; operates at 24 VAC; product dimensions 24 x 18 x 13 in.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: HE100A1000/U
• Country of Origin: United States

Technical Specifications

• Brand: Honeywell
• MPN: HE100A1000/U
• Replacement MPN: HO15146
• Model: HE100A1000/U
• Type: Drain bypass evaporative humidifier
• Coverage: 2000 sq. ft.
• Humidification Capacity: Up to 12 gallons per day
• Includes: HumidiPRO digital humidity control
• Operating Voltage: 24 VAC
• Current Draw: 0.417 A
• Power Supply Frequency: 60 Hz
• Item Weight: 13.5 pounds
• Product Dimensions: 24 x 18 x 13 inches
• Maximum Building Volume: Up to 13,000 cubic feet
• Static Pressure (Max): 0.3 in wc
• Features: Automatic water refill; antimicrobial-coated slide-out pad; quick-connect gasket; interchangeable bypass
