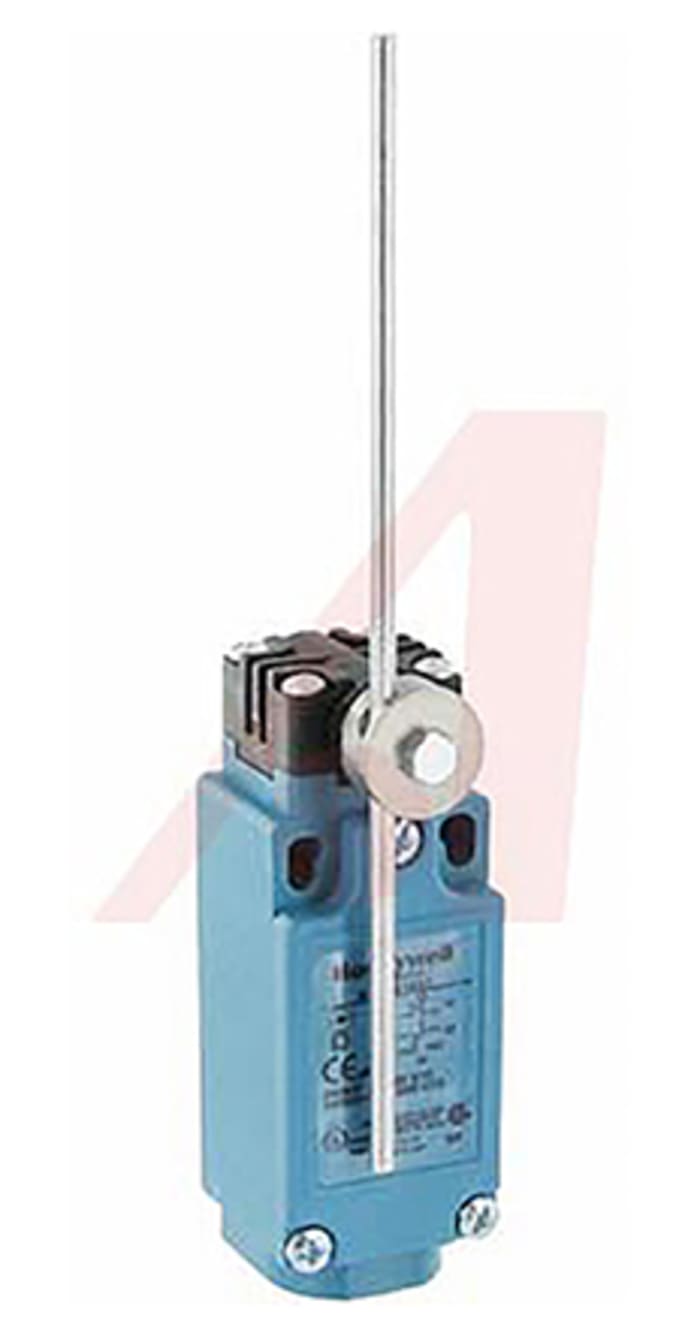

Honeywell GLDA01A4J Global Limit Switch Adjustable Rod Rotary

Product Description

The Honeywell GLDA01A4J is a limit switch suitable for industrial applications. This device features a rod actuator and rotary style operation. It includes a SPDT 1NO/1NC pole and throw configuration with snap action functionality. The housing is made from glass fibre reinforced thermoplastic and is rated IP66, ensuring protection against dust and water.

• Actuator Type: Rod
• Normal State Configuration: NO/NC
• IP Rating: IP66

Product Highlights

This limit switch is designed for reliability in tough environments.

Product Information

Standard Information

• Brand: Honeywell
• MPN: GLDA01A4J

Technical Specifications

• Fuse Type: Switch
• Switch Style: Rotary
• Mounting Type: Screw
• Number of Phases: 1
• Material: Plastic
• Item Height: 2.16 inches
• Depth: 26.35 mm
• Width: 30.5 mm
• Length: 68.5 mm
• Maximum Current: 10A
• Maximum AC Voltage: 300V
• Maximum DC Voltage: 300V
• Connection Type: 1/2 in NPT
• Series: GLD
• Action Type: Snap Action
• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: +85°C
• Standards Met: CCC, CE, CSA, UL
• Mounting Orientation: EN50047
• Operating Force: 0.12 N
• Mechanical Life: 10,000,000 Cycles
