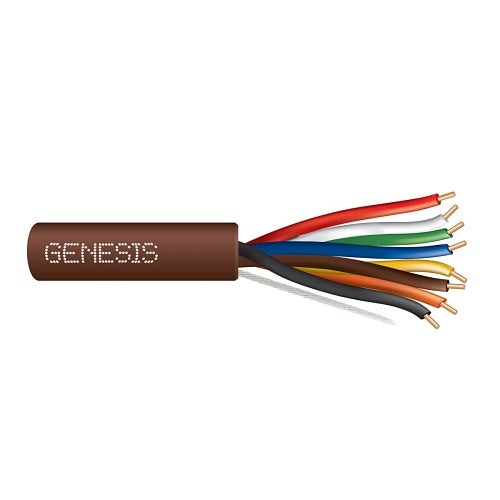

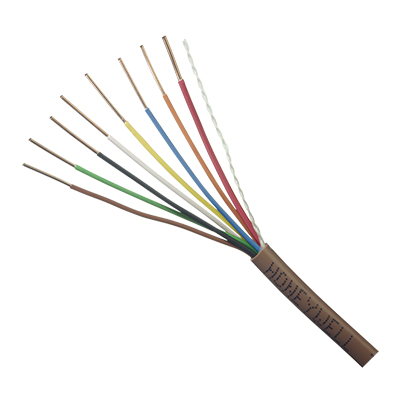

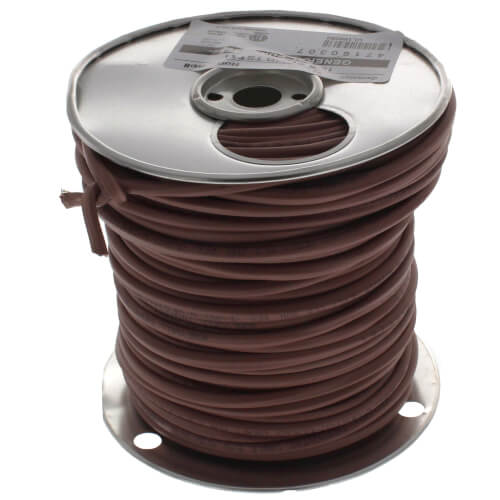

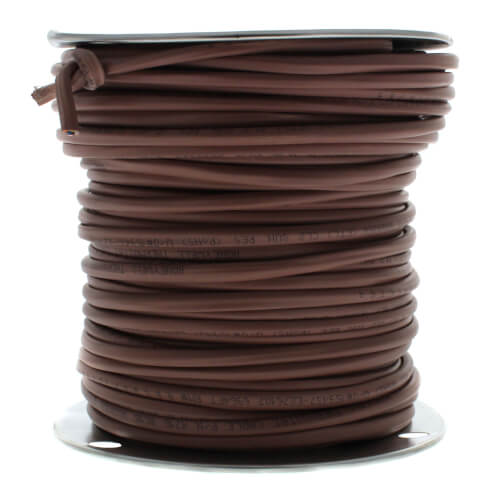

HONEYWELL GENESIS 47160307 250 ft - 18/8 Solid CL2 PVC Thermostat Cable

Product Description

The HONEYWELL GENESIS 47160307 is a 250-foot length of 18/8 solid CL2 thermostat cable designed for various low voltage applications. This cable is ideal for wiring thermostat controls, HVAC systems, heating and air conditioning units, and doorbells. It features sequential footage markings and a braided ripcord for easy measurement and installation.

• Length: 250 feet
• Solid bare copper conductors
• Polypropylene insulation with PVC jacket

Product Highlights

This thermostat cable supports reliable electrical connections in HVAC systems and other low voltage setups. It is suitable for indoor use and designed with quality materials for durability.

Product Information

Standard Information

• Brand: HONEYWELL GENESIS
• Manufacturer: Genesis Cable

Technical Specifications

• Length (Feet): 250
• Application: HVAC
• Wire Type: Thermostat Wire
• AWG: 18
• Jacket Material: PVC
• Color: Brown
• Conductors: 8
• Outside Diameter: 0.204 inches
• Package Type: Reels
• Approvals: CL2
• Limited Warranty: 3-Year
• Country of Origin: US
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Voltage: 300 VAC
• Standards/Approvals: NEC Article 725
• Ground Wire Included: Yes
