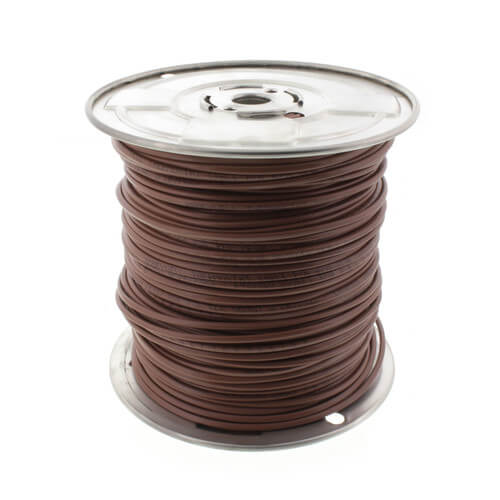

HONEYWELL GENESIS 47114807 Thermostat Cable 500 ft

Product Description

The HONEYWELL GENESIS 47114807 is a reliable thermostat cable used for connecting thermostat controls to various heating and cooling systems. Its suitable for low voltage applications like doorbells. The cable consists of solid bare copper conductors, insulated with polypropylene and protected by a durable polyvinyl-chloride jacket.

• Length of 500 feet
• Solid bare copper wire with 18 gauge

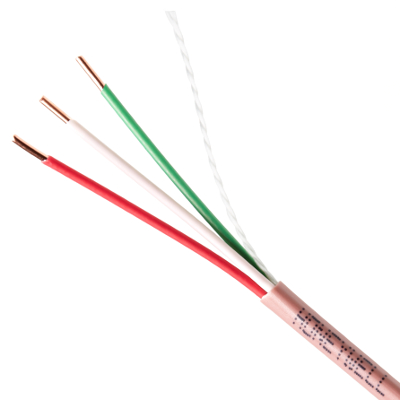

• Three conductors featuring red, white, and green jackets

Product Highlights

Use this thermostat cable for HVAC systems and other low voltage applications that require dependable wiring solutions.

Product Information

Standard Information

• Brand: Honeywell
• Catalog Number: 21P62

Technical Specifications

• Length (Feet): 500
• Application: HVAC
• Wire Type: Thermostat Wire
• AWG: 18
• Features: PVC Coated
• Color: Brown Jacket
• Type: Solid
• Conductors: 3
• Outside Diameter: 0.144 in
• Package Type: Reels
• Approvals: CL2
• Voltage Rating: 150 VAC
• Conductor Material: Copper
• Conductor Size: 18 AWG
• Insulation Thickness: 0.006 in
• Jacket Thickness: 0.015 in
• Resistance: 6.5 Ohm
• Capacitance: 25 pF/ft
• Impedance: 100 Ohm
• Insulation Material: Polypropylene
• Insulation Color: Green/Red/White
• Jacket Material: PVC
• Jacket Color: Brown
• Temperature Rating: -20 to 60 deg C
• Gauge: 18 GA
• Ground Wire Included: Yes
• Conductor Type: Bare Solid Copper
• Packaging Type: Spool
• Series: Genesis
