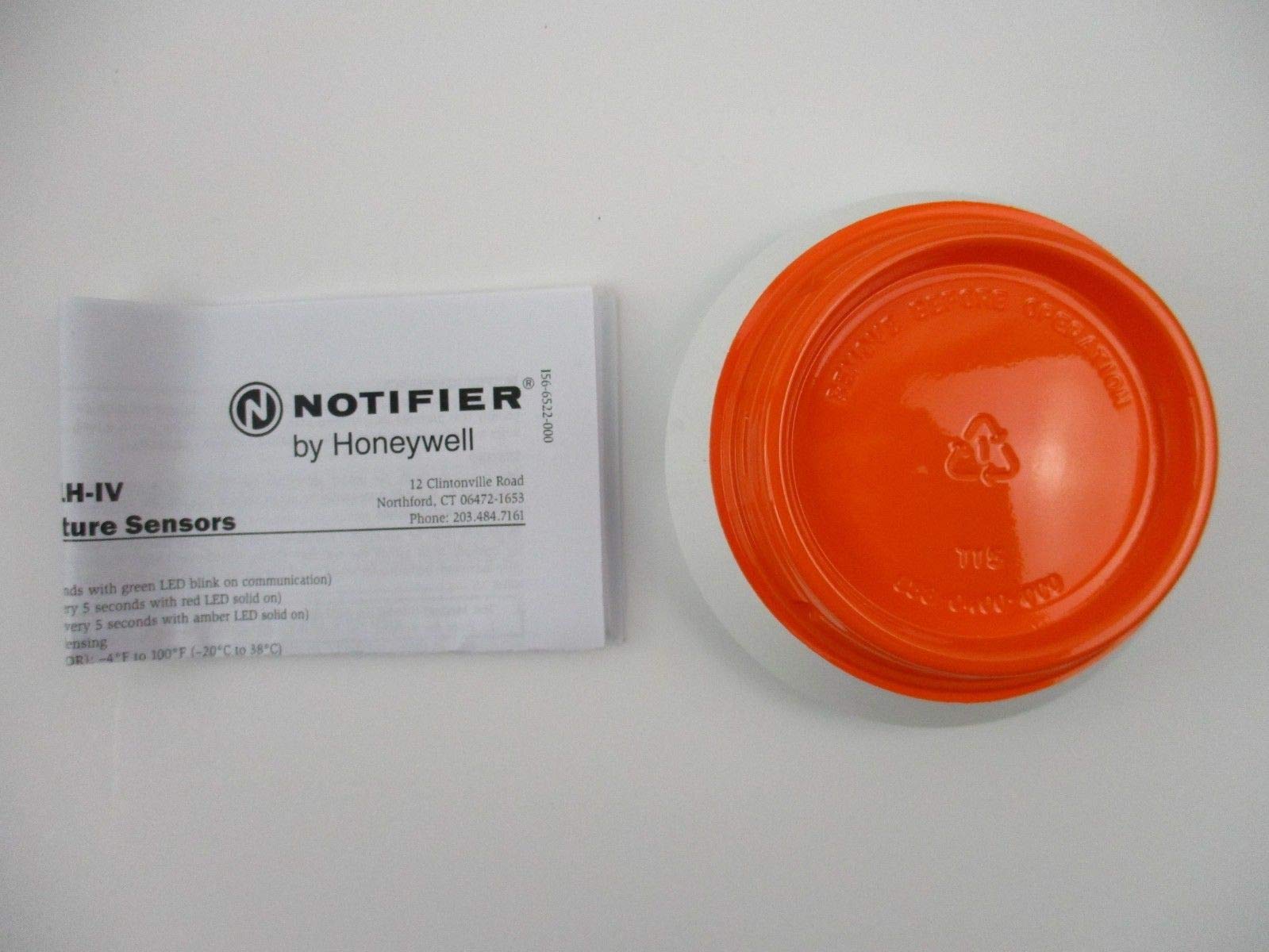

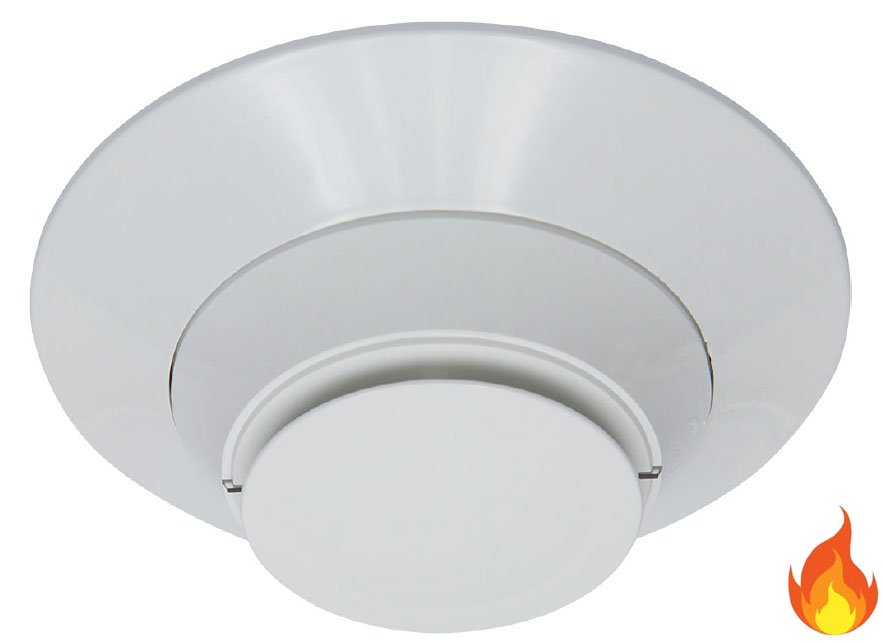

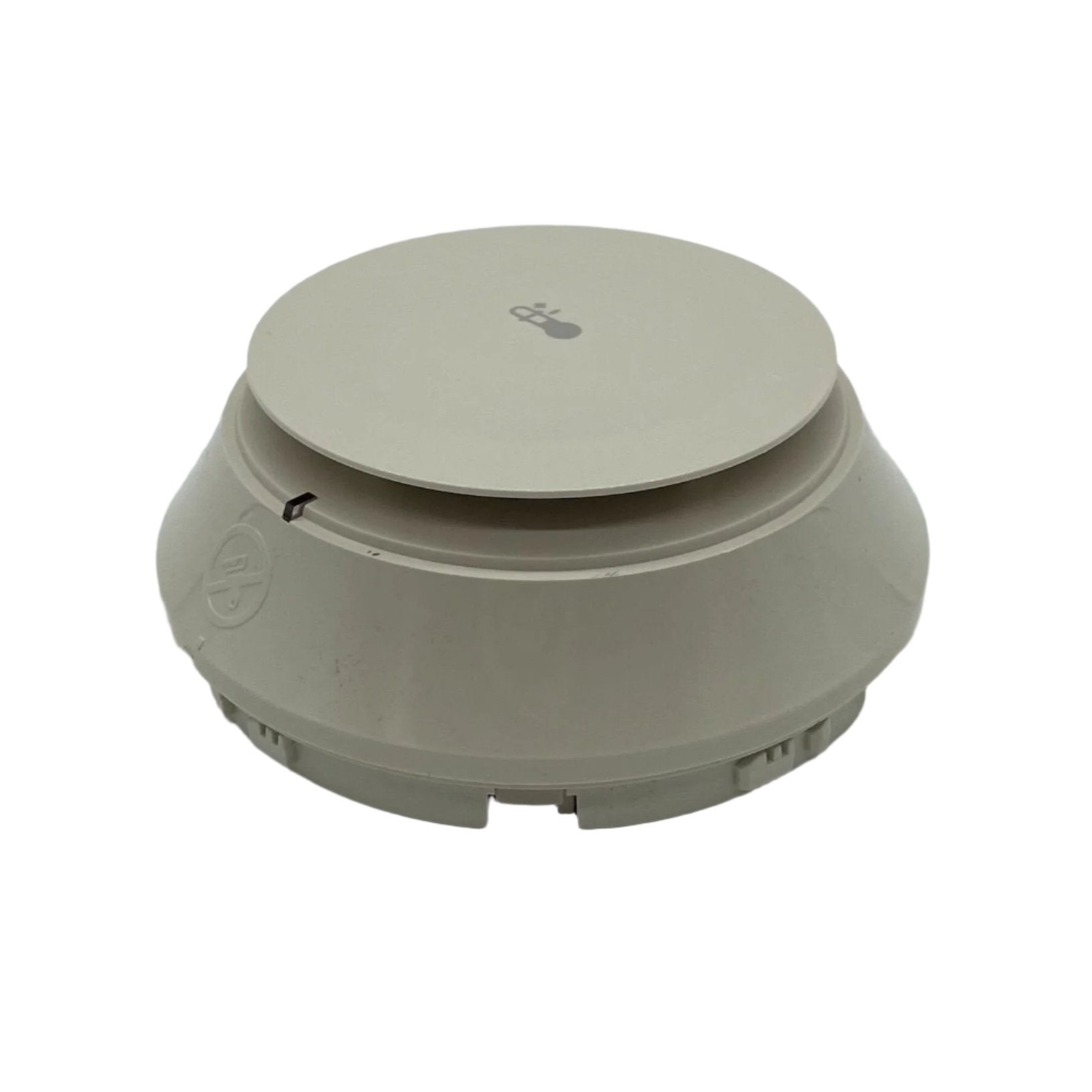

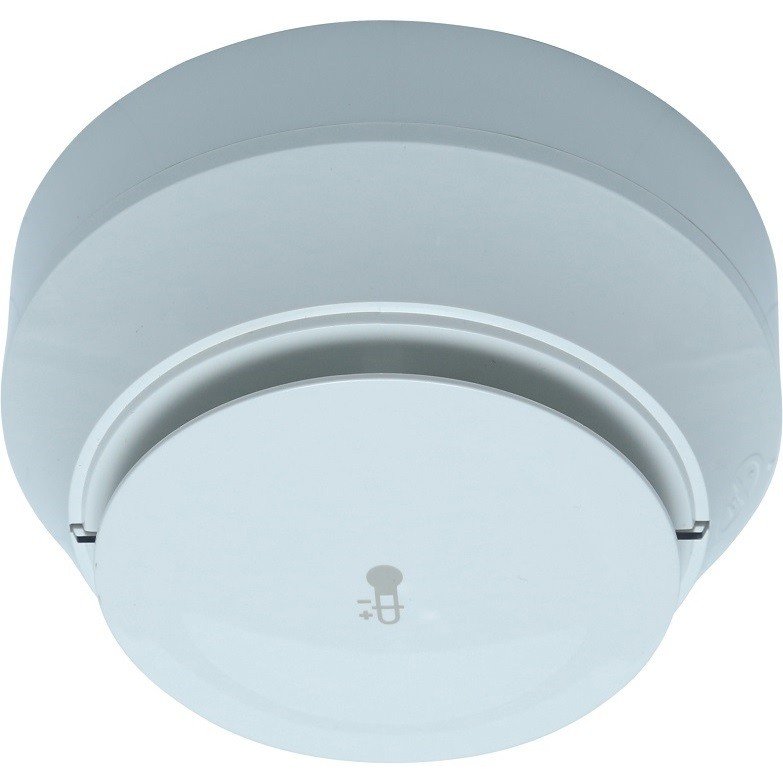

HONEYWELL FST-951 HONEYWELL NOTIFIER FST-951 Series Intelligent Thermal Detector

Product Description

The HONEYWELL NOTIFIER FST-951 is an intelligent thermal detector designed for reliable performance in various environments. This model is a direct replacement for the FST-851 Series, featuring advanced thermal technologies to enhance both operation and design. Ideal for commercial and residential settings, this detector supports point ID addressing through rotary decimal switches, allowing for easy location identification.

• Two-wire SLC loop connection
• Addressable by device with rotary, decimal addressing
• Low-profile design for better aesthetics

Product Highlights

This detector is suitable for a range of applications, providing reliable heat detection through fixed-temperature, rate-of-rise, and high-temperature capabilities.

Product Information

Standard Information

• Brand: HONEYWELL
• MPN: FST-951
• Country of Origin: Mexico

Technical Specifications

• Operating Temperature: -4°F to 100°F (-20°C to 38°C) for FST-951, FST-951R Series; -4°F to 150°F (-20°C to 66°C) for FST-951H Series
• Relative Humidity: 10% - 93% non-condensing
• Fixed Temperature: 135°F/57°C
• Rate-of-rise: 15°F (8.3°C) per minute
• High Temperature: 190°F/88°C
• Voltage: 15-32 VDC
• Weight: 3.4 oz. (95 g)
• Dimensions: 2.0 inches high; base diameter depends on model, B501: 4 inches diameter
