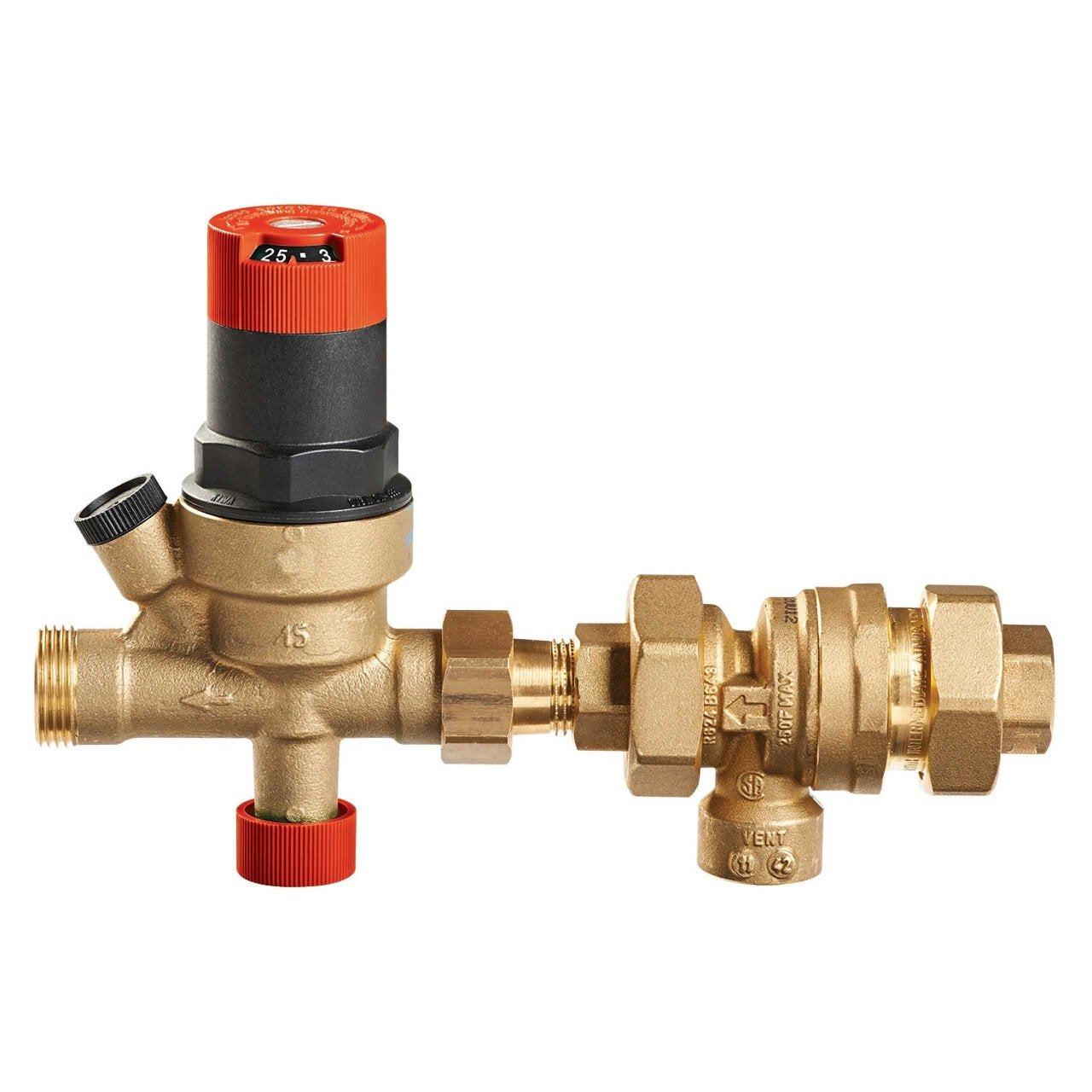

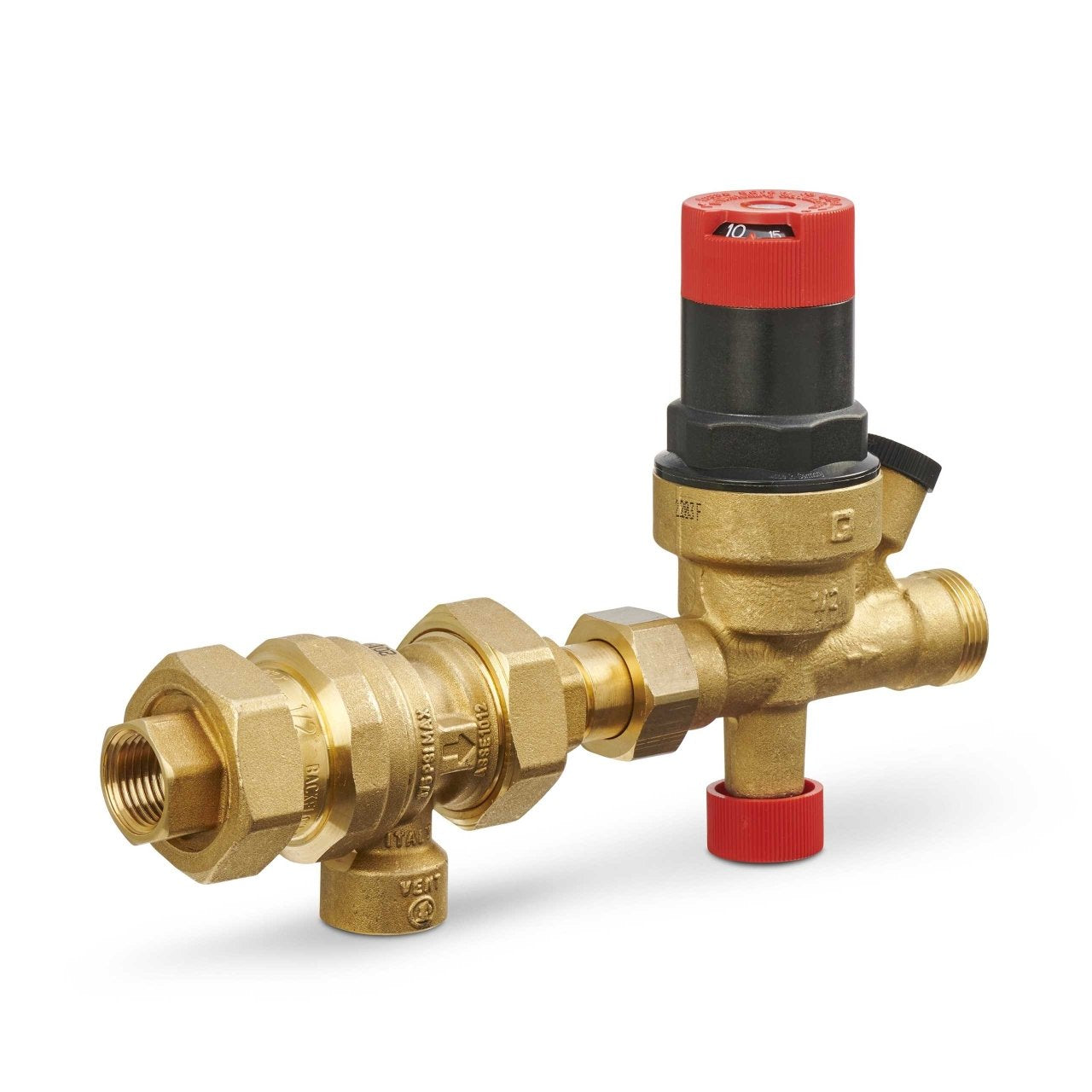

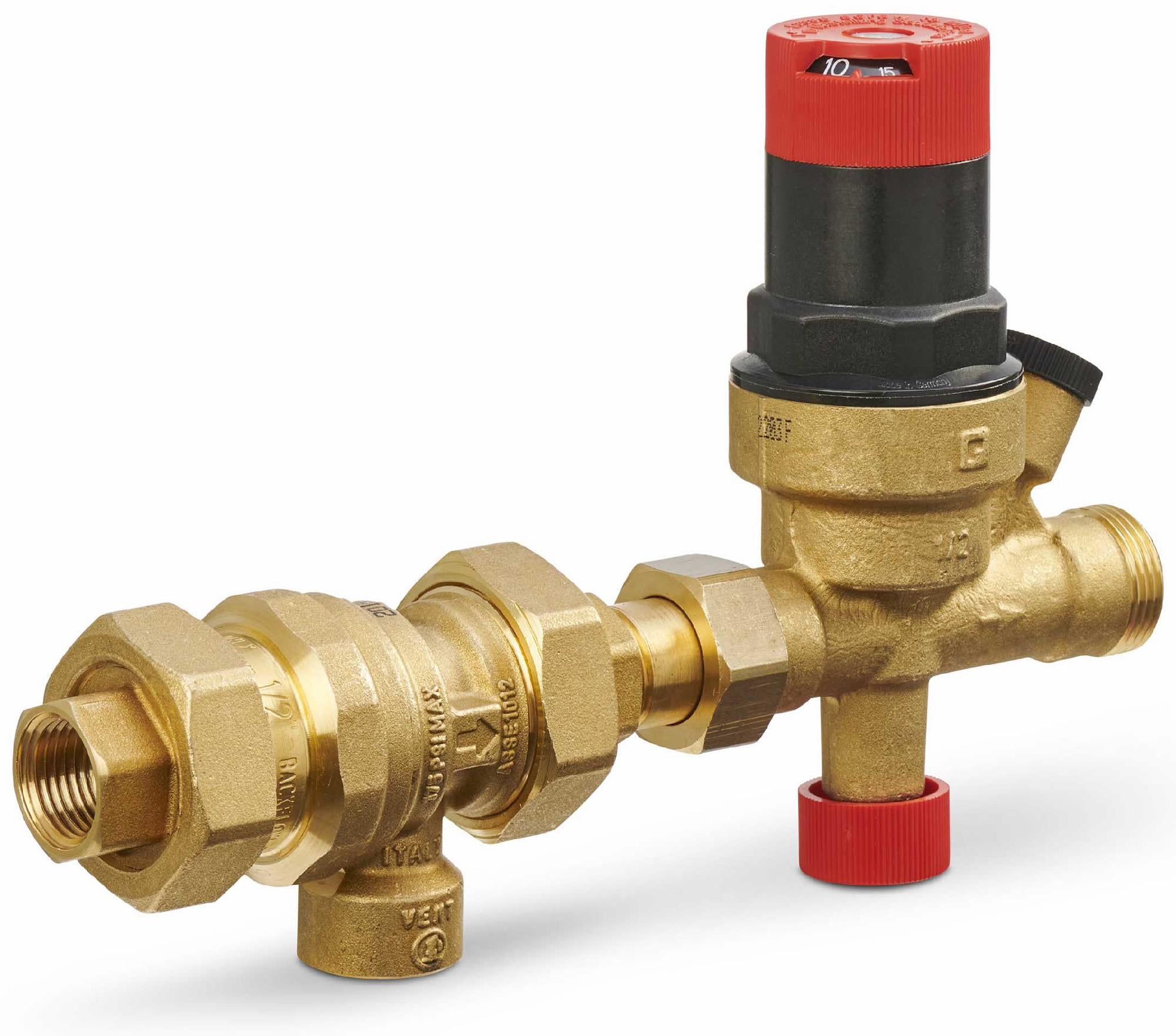

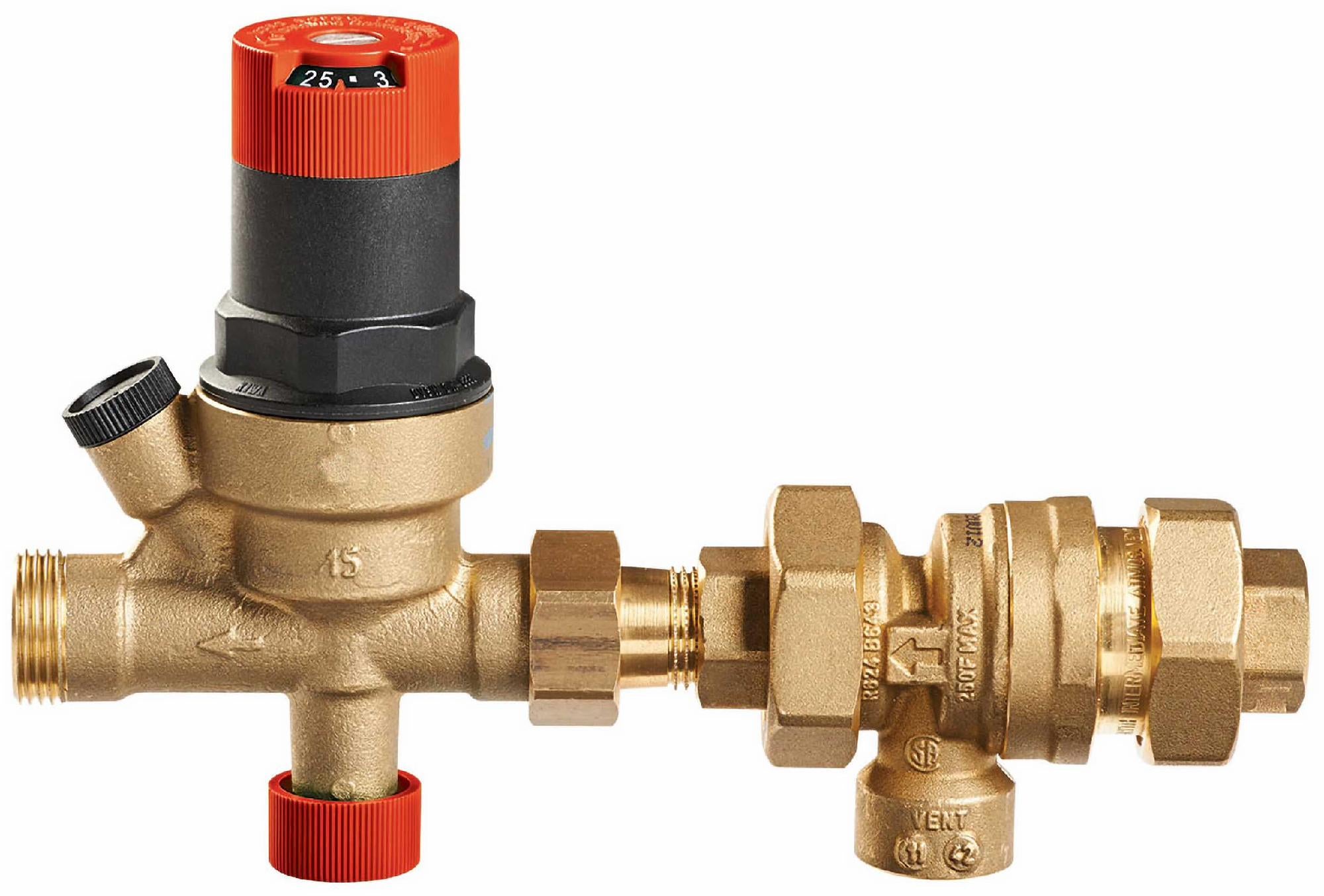

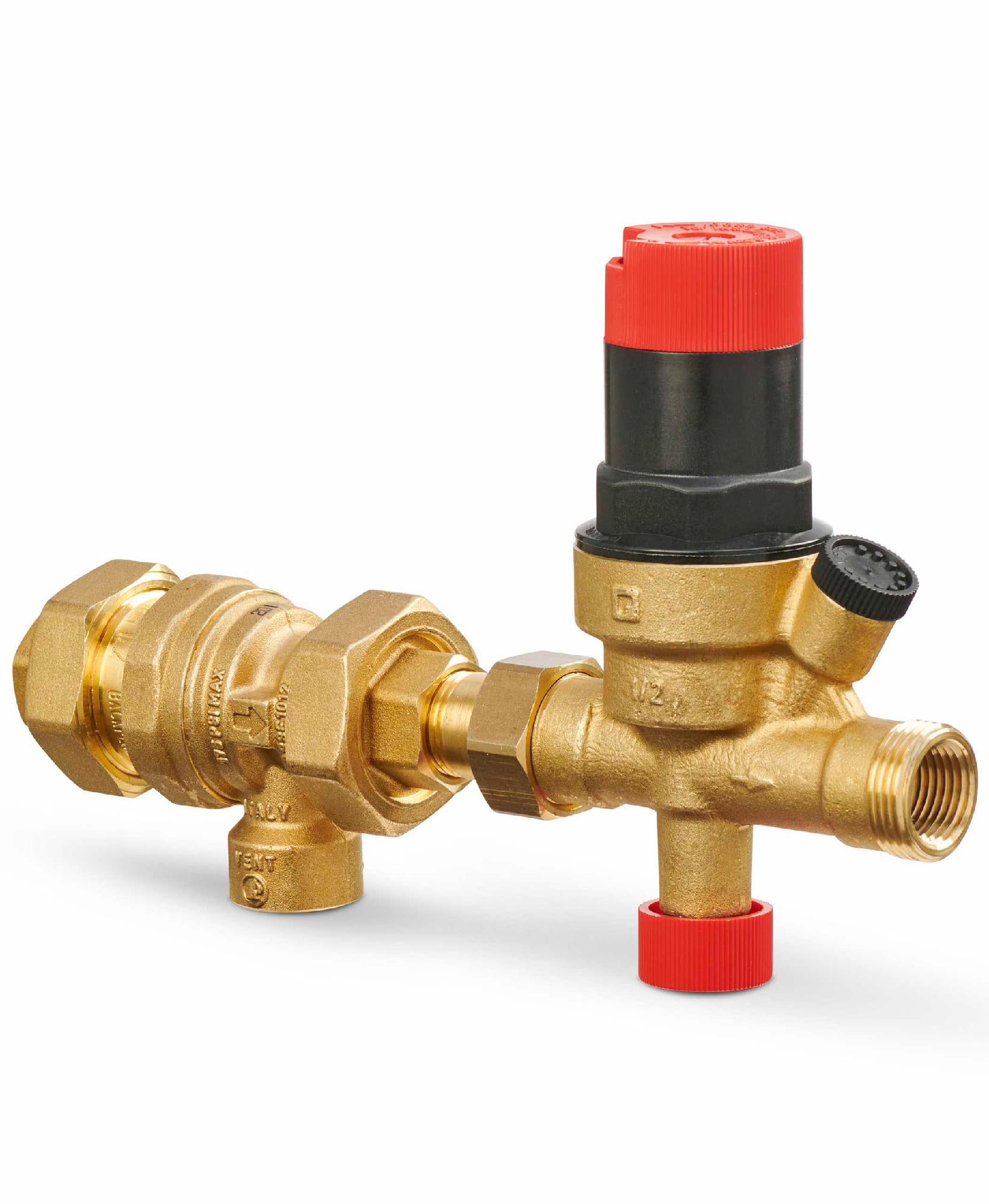

Honeywell FM911/U Pressure Regulating Valve 1/2 in. NPT

Product Description

The HONEYWELL FM911/U is a pressure regulating valve designed for automatic control of boiler feed water and other pressure reducing applications. It is especially constructed for expansion tank mounting and features a fast fill feature and built-in check valve. The valve offers an inlet connection that can be sweat or threaded.

• Pressure regulating valve for automatic control of boiler feed water
• Especially constructed for expansion tank mounting
• Fast fill feature

Product Highlights

This valve is designed for automatic control of boiler feed water and other pressure reducing applications.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: FM911/U

Technical Specifications

• Size: 1/2"
• Material: Brass
• Connection Ends: NPT
• Pressure: 150 psi
• Vendor: Honeywell
• Inlet connection: sweat or threaded
• Regulating pressure range: 4 psi to 60 psi
• Maximum operating pressure: 150 psi
• Application: Boiler Feed Water Control
• Pipe Size: 1 in
• DN Size: DN15
• Includes: Union nut, Tailpiece with Sweat and NPT connections
• Compatible With: Hot Water
• Valve Body Material: Brass
