Honeywell FK06-101-DUT-LF Pressure Regulating Valve and Filter Combination

Product Description

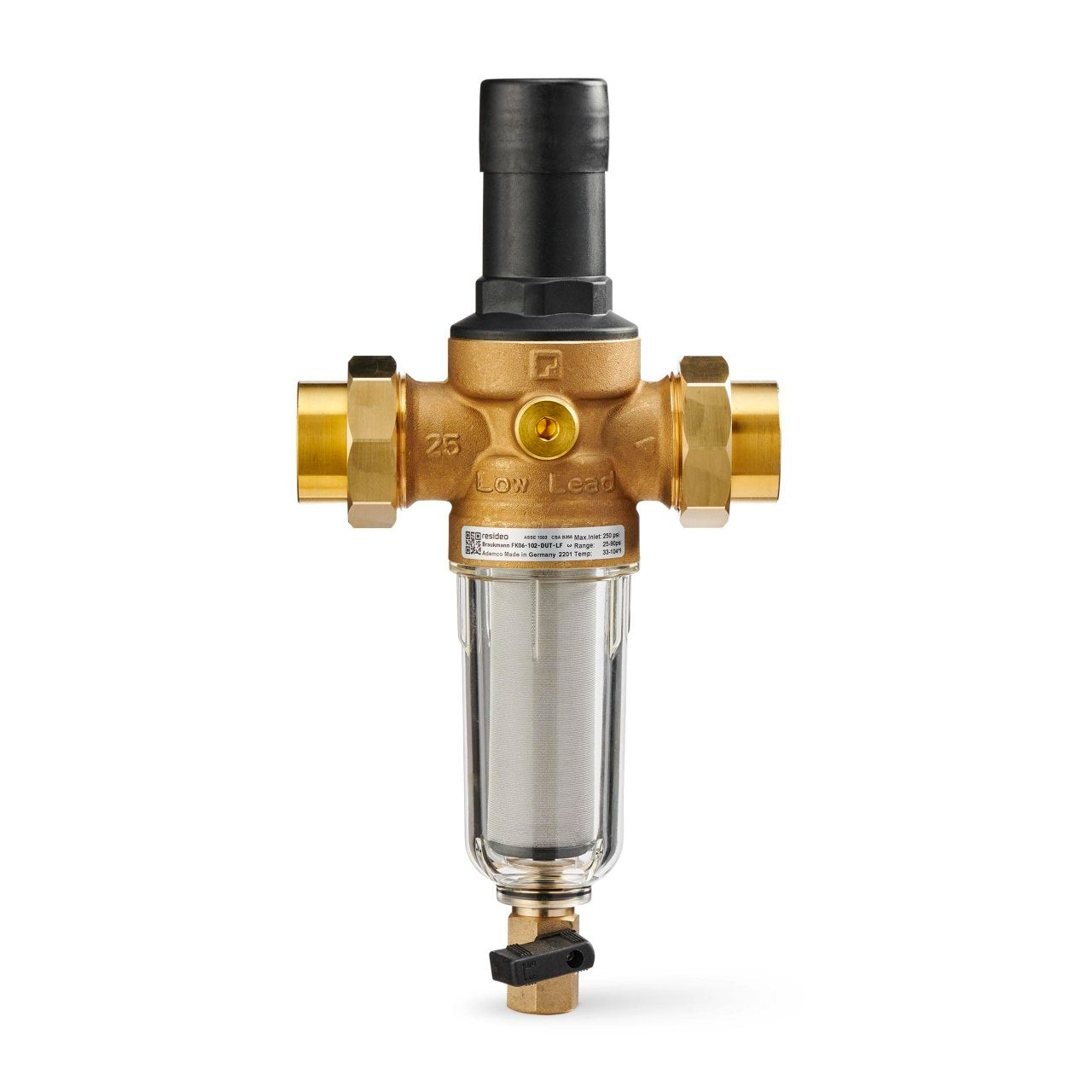

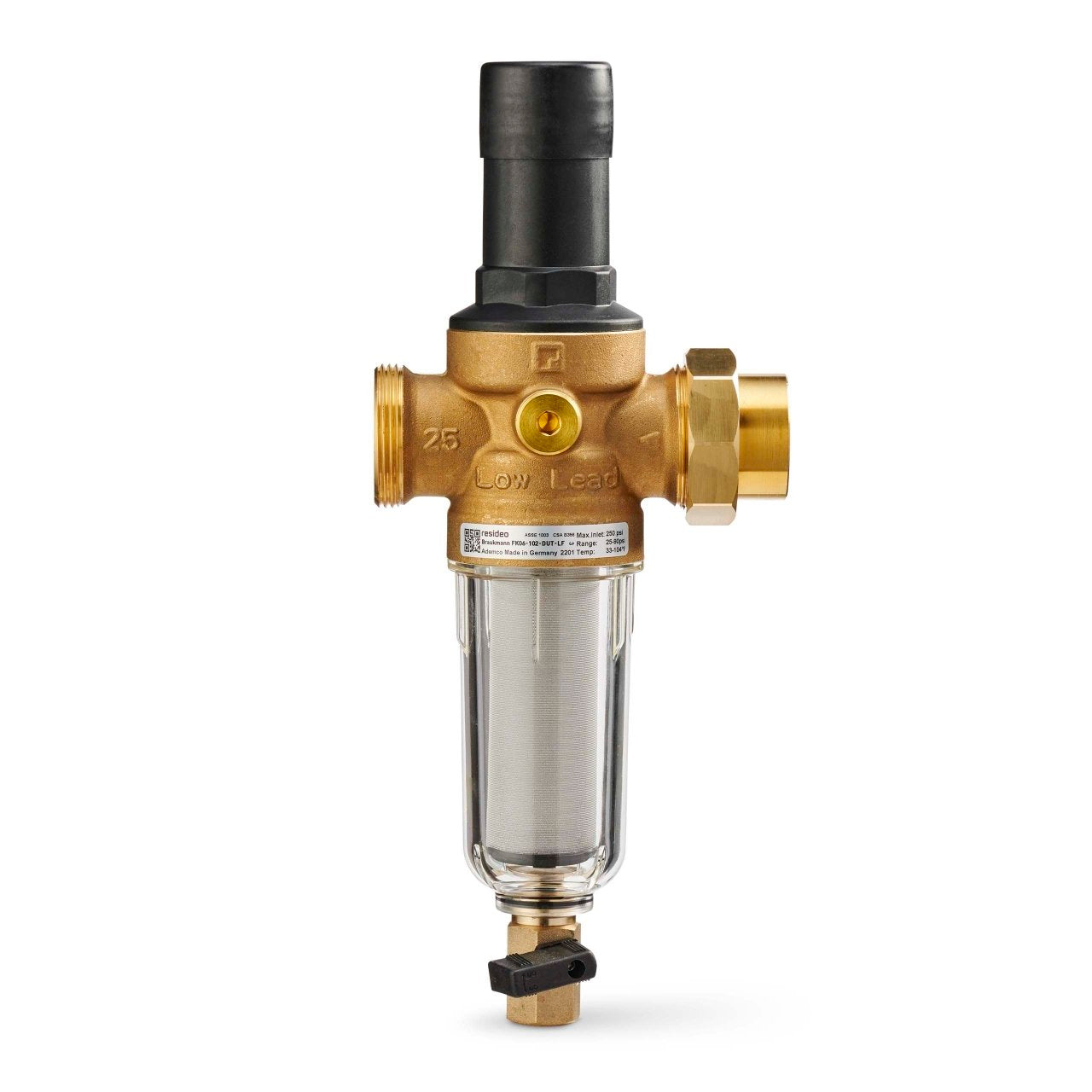

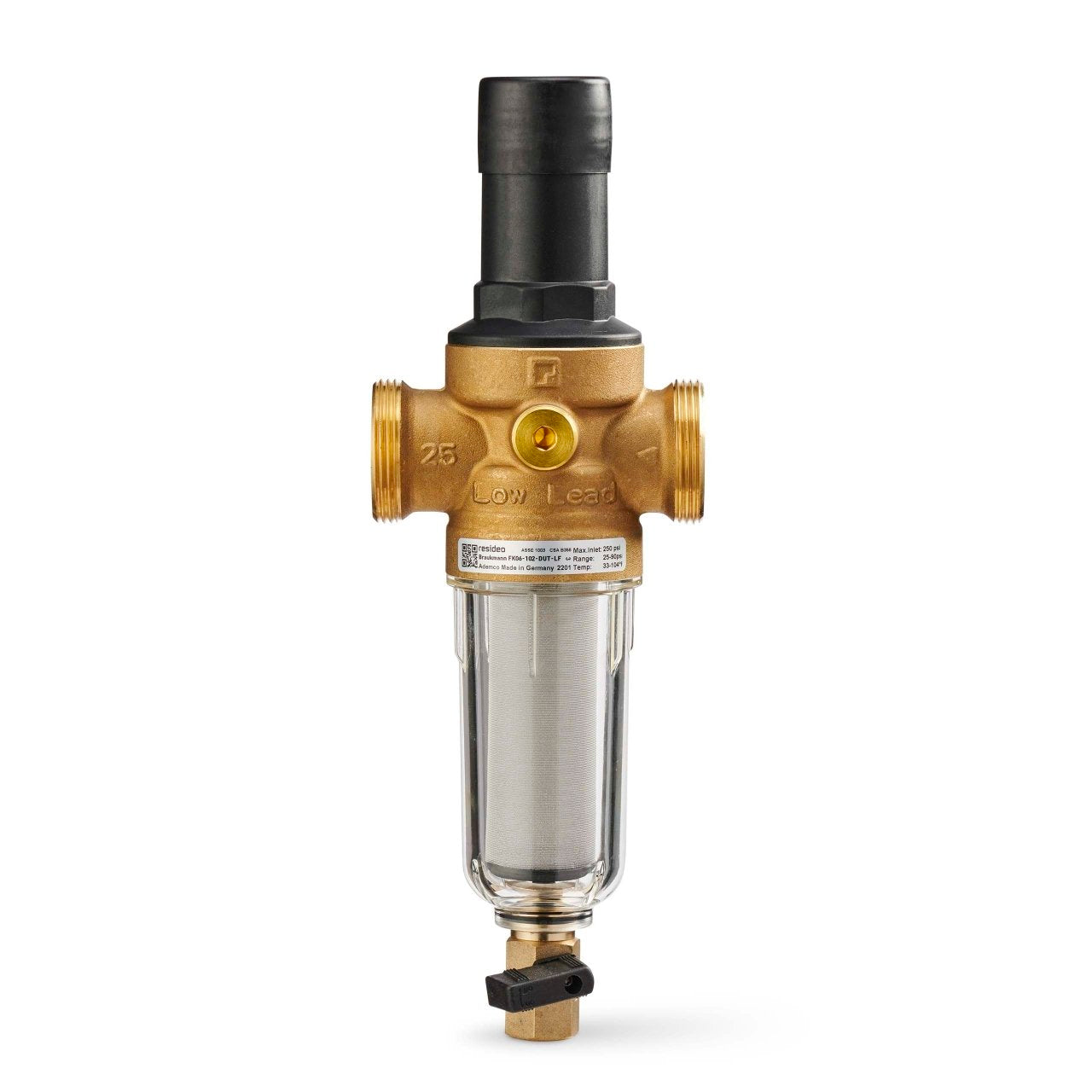

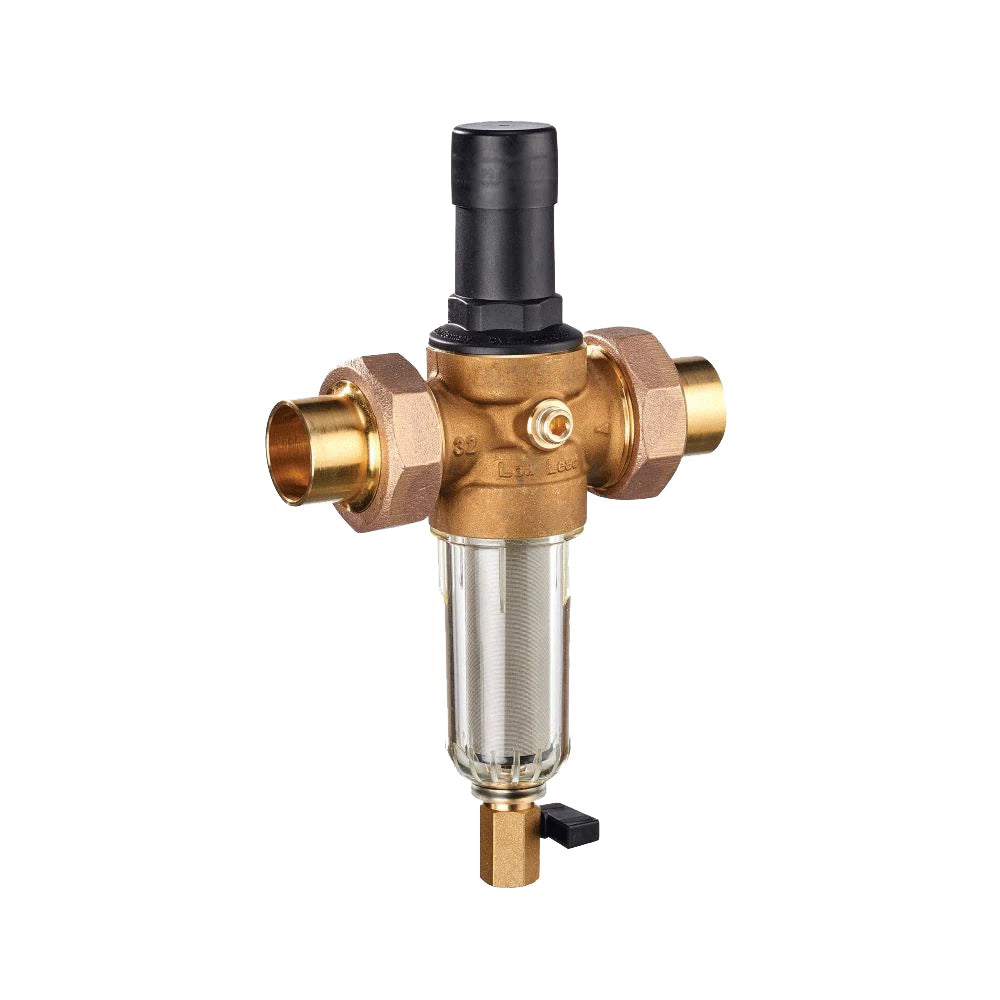

The Honeywell FK06-101-DUT-LF is a pressure regulating valve and filter combination built to maintain a steady outlet pressure. Ideal for potable water and irrigation applications, this unit guarantees a continuous supply of filtered water. Key features include a rinsable filter that offers easy maintenance and a downstream pressure adjustment dial for precise control.

• Maintains constant outlet pressure over varying inlet pressures.
• Includes a rinsable filter for effective water filtration.
• Versatile for both potable water and irrigation use.

Product Highlights

This valve and filter combo is straightforward to install and operate, making it suitable for various plumbing and irrigation projects.

Product Information

Standard Information

• Brand: Honeywell
• MPN: FK06-101-DUT-LF

Technical Specifications

• UPC: 0085267442473
• Valve Body Material: Brass
• Inlet Diameter: 3/4 in
• Outlet Diameter: 3/4 in
• Pressure Reducing Valve Type: Double Union
• Suitable Media: Water
• Max Inlet Pressure: 250 psi
• Min Differential Pressure: 14.5 psi
• Ambient Operating Temperature Range: 33°F to 140°F
• Connection Size: 3/4 in
• Filter Mesh Size: 50 micron
• Preset Outlet Pressure: 60 psi
• Product Height: 9.75 in
• Product Length: 5.2 in
• Product Width: 5.2 in
• Application: Potable Water Pressure Regulation and Irrigation
• Lead Free: Yes
