Resideo F300E1027/U Electronic Air Cleaner 120V (20 x 20) 50000293-003

Product Description

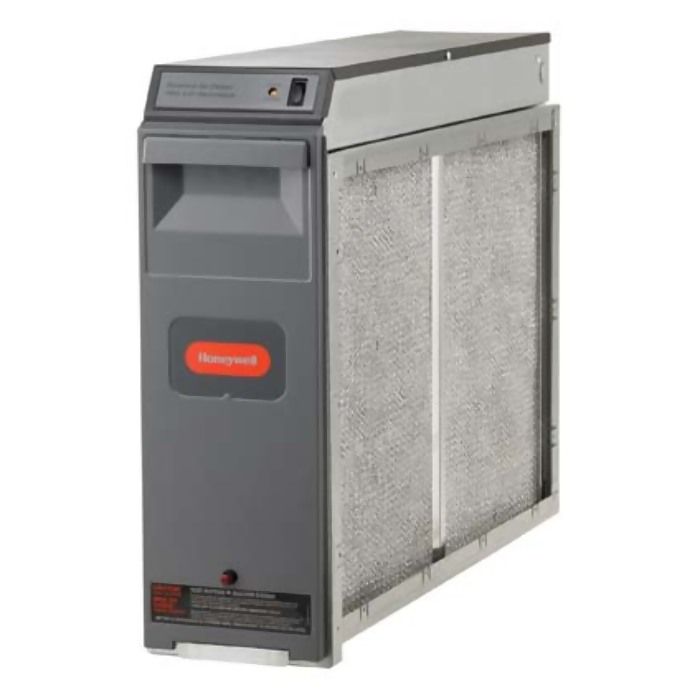

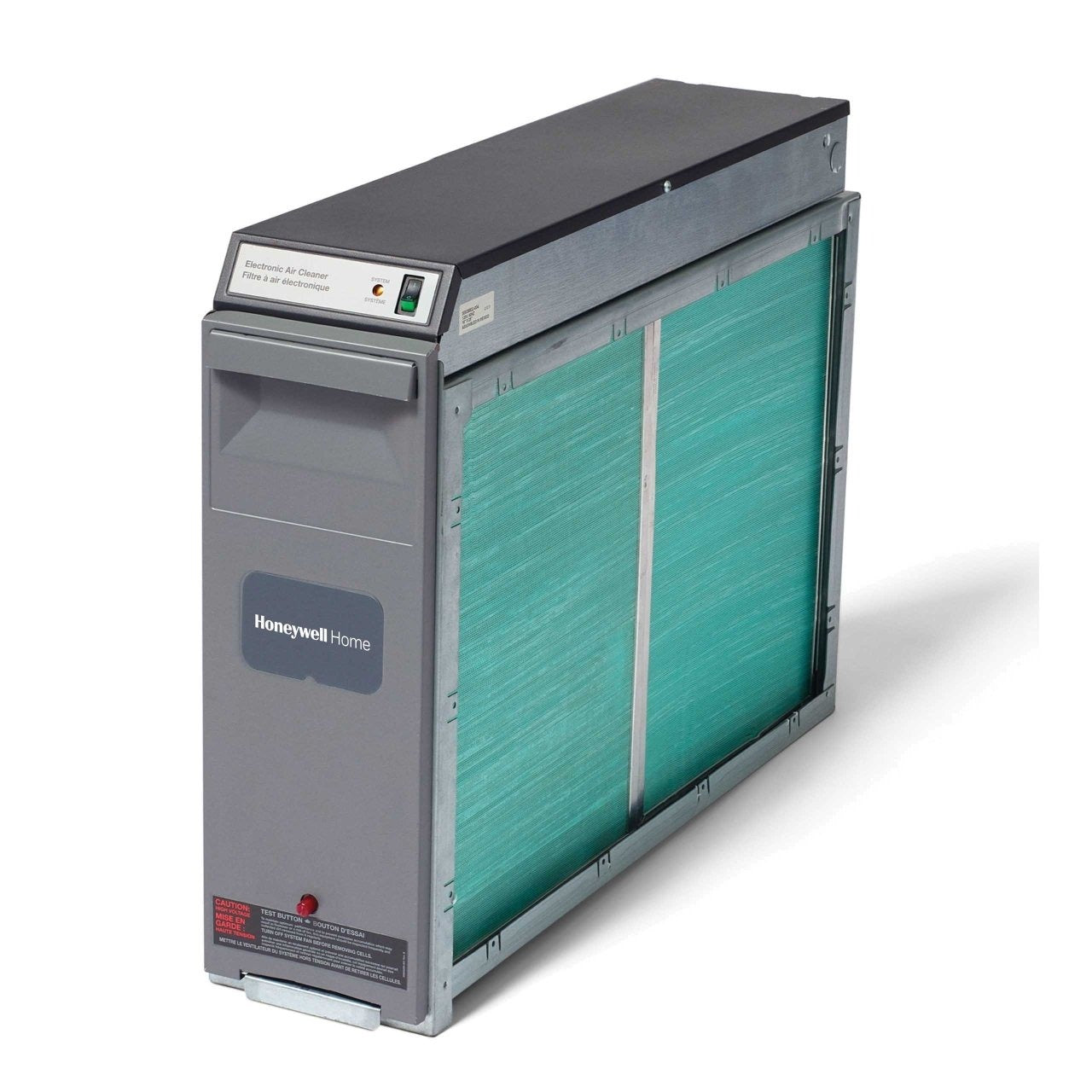

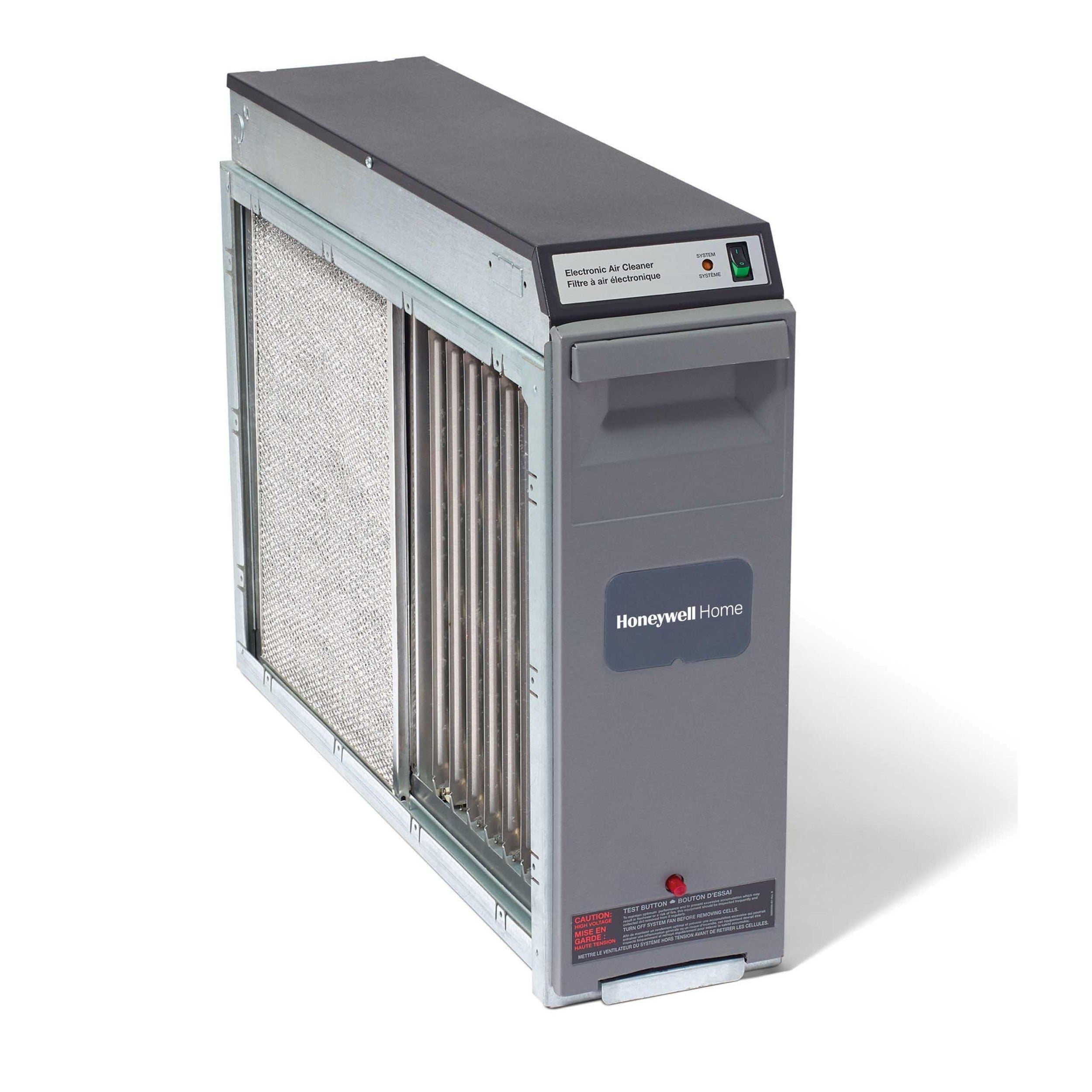

Resideo F300E1027/U is a duct-mounted electronic air cleaner for residential and light commercial HVAC systems that captures up to 98% of airborne particles and includes a performance-enhancing media post-filter. The unit operates at 120 Vac, 60 Hz with a 0.4 A rating and supports up to 1400 cfm airflow. It features a self-regulating solid-state power supply, low-profile access door with test button, low pressure drop, and a rugged zinc-coated cabinet.

• Captures up to 98% of particles passing through the unit; fractional efficiencies E1=81%, E2=93%, E3=99%; MERV 11.
• Electrical ratings: 120 Vac, 60 Hz, 0.4 A; rated airflow up to 1400 cfm; static pressure drop 0.26 in. w.c. at 500 FPM.
• Includes cabinet, access door, solid-state power supply, 2 electronic cells, 2 metal mesh prefilters and 2 media postfilters; conversion kit 203365A available for 240V.

Product Highlights

Duct-mounted electronic air cleaner, 20 x 20 in, 120V operation, MERV 11, UL listed (Report E30954).

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: F300E1027/U
