Honeywell f200f1625/u Merv 13 Media Air Cleaner 16x25 4 Inch

Product Description

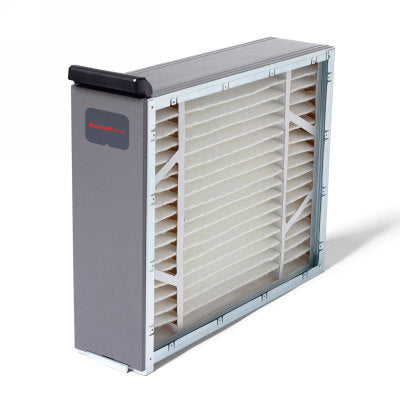

The Honeywell f200f1625/u is a whole-home media air cleaner designed for duct-mounted installation in residential forced-air HVAC systems. It fits in the return air duct and works with all gas, oil, and electric forced-air furnaces. It is also compatible with compressor cooling systems up to 5 tons. The unit measures 16 inches by 25 inches with a 4-inch filter depth, making it a direct fit for standard residential duct openings in that size class. The cabinet is constructed from zinc-coated, roll-formed steel. This corrosion-resistant build can support the weight of a residential furnace and evaporator coil when stacked above the unit. The f200f1625/u requires no electrical connections and mounts in any position, giving HVAC technicians flexibility during installation. The included MERV 13 pleated media filter captures airborne particles as small as 0.3 microns. Fractional efficiency ratings tested to ASHRAE Standard 52.2-1999 show E1 efficiency of 63 percent for particles 0.3 to 1.0 microns, E2 efficiency of 91 percent for particles 1.0 to 3.0 microns, and E3 efficiency of 99 percent for particles 3.0 to 10.0 microns. Maximum airflow capacity is 1400 CFM, with a static pressure drop of 0.3 inches water column at 500 FPM. The filter element carries UL Listed certification under UL900, Class 2. Maintenance is limited to periodic media filter replacement. Compatible replacement filters include FC200E1029, FC100A1029, and POPUP1625. The system is also upgradeable to higher-performance media or an electronic air cleaner at a later date, protecting the initial investment for homeowners and building owners alike.

• MERV 13 charged-media filter captures particles as small as 0.3 microns with E3 efficiency of 99 percent
• Zinc-coated, roll-formed steel cabinet resists corrosion and supports furnace and evaporator coil weight
• No electrical connections required — mounts in any position in the return air duct

Product Highlights

The Honeywell f200f1625/u delivers high-efficiency MERV 13 air filtration in a durable, duct-mounted cabinet that requires no electrical hookup and fits standard 16x25 return air openings. It is a reliable baseline air quality solution for residential HVAC service and replacement work.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: f200f1625/u

Technical Specifications

• Application: Duct mounted
• Dimensions: 16 inches x 25 inches
• Filter Depth: 4 inches
• Type of Air Cleaner: Media Air Cleaner
• Airflow Capacity (Maximum): 1400 CFM
• MERV Rating: MERV 13
• Fractional Efficiency: E1 63 percent, E2 91 percent, E3 99 percent
• Static Pressure Drop: 0.3 inches w.c. at 500 FPM
• Efficiency Standard: ASHRAE Standard 52.2-1999
• Compatible Replacement Filters: FC200E1029, FC100A1029, POPUP1625
• Includes: Cabinet, Access Door, and MERV 13 Filter
• Approvals: UL Listed, UL900 Class 2
• Compatible Systems: Gas, oil, and electric forced-air furnaces; compressor cooling up to 5 tons
