Honeywell F100F2044 Media Air Cleaner 2000 Cfm (25 x 20) FC100A1037

Product Description

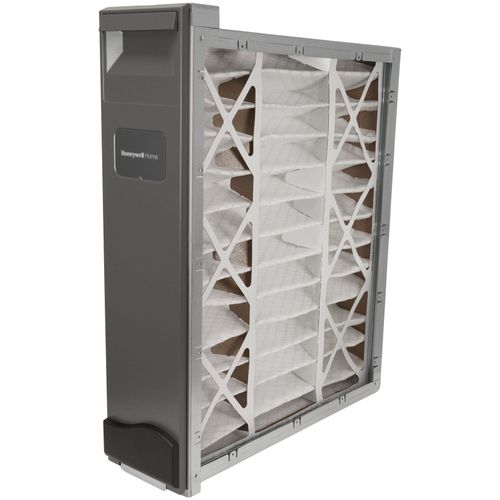

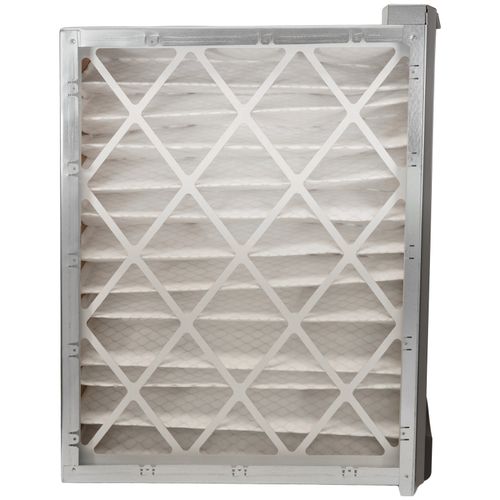

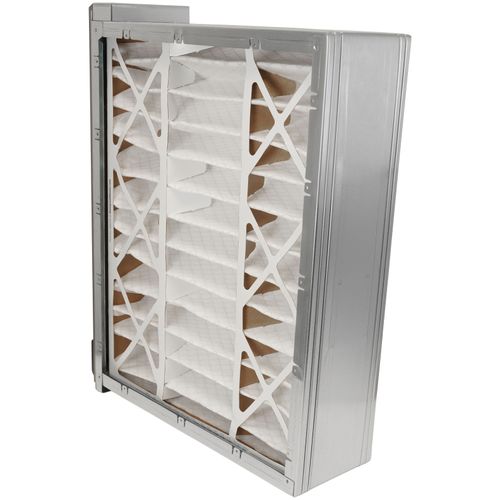

Honeywell F100F2044 is a media air cleaner that mounts in the return air duct and includes a 4-inch MERV 11 pleated media filter. The unit provides up to 2000 Cfm airflow, captures particles as small as 0.3 microns, and features a zinc-coated cabinet with an access door. The design requires no electrical connections and uses periodic filter replacement for maintenance.

• Includes 4 in MERV 11 pleated media filter plus cabinet and access door
• Rated airflow up to 2000 Cfm; captures particles down to 0.3 microns
• Duct-mounted return-air installation; no electrical connections required

Product Highlights

Duct-mounted 4-inch MERV 11 media air cleaner, 2000 Cfm capacity, captures particles to 0.3 microns; UL900 Class 2 filter element.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: F100F2044

Technical Specifications

• Brand: Honeywell
• Manufacturer Part Number: F100F2044
• Product Name: Media Air Cleaner
• Series: F100F
• Product Type: Media air cleaner
• Size: 25 x 20 inches
• Dimensions: 25 x 20 x 4 inches
• Filter Thickness: 4 in
• Filter Rating (MERV): MERV 11
• Rated Airflow: 2000 Cfm
• Airflow Capacity (m3/hr): 3400 m3/hr
• Particle Capture Size: As small as 0.3 microns
• Filter Efficiency: 85% (3-10 micron range)
• Efficiency E1/E2/E3: E1 (0.3-1.0 μm): 25%; E2 (1.0-3.0 μm): 62%; E3 (3.0-10.0 μm): 85%
• Static Pressure Drop: 0.23 in. w.c. at 500 FPM
• Mounting Type: Duct-mounted (return air duct)
• Includes: Cabinet, access door, MERV 11 pleated media filter (FC100A)
• Approvals: Filter element: UL Listed, UL900 Class 2
• Applicable Systems: Gas, oil and electric forced air furnaces; compressor cooling up to 5 tons
• Replacement Filters: FC100A1037, FC200E1037, FC100C1017
• UPC: 085267371148
• Number of Items: 1
• Opening Dimensions: 23 1/4 D x 18 7/16 H inches
