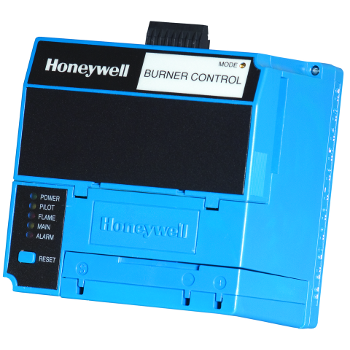

Honeywell EC7895C1000 (C) 220-240V; 50/60 Hz. 0.8 Or 3 Sec Ffr

Product Description

This Honeywell product, model EC7895C1000, operates at 220-240 volts and supports fifty to sixty hertz. It functions as an on/off primary control with prepurge capabilities. This relay module is designed to provide reliable operation in HVAC applications.

• 220-240V operation for consistent performance.
• Supports prepurge functionality for safety.
• Interlocking features ensure reliable control during operation.

Product Highlights

The Honeywell EC7895C1000 relay module is efficient for various heating and cooling systems.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: EC7895C1000

Technical Specifications

• Voltage: 220-240VAC
• Prepurge: Determined by ST7800A Purge Timer Card
• Interlocks: Running
• Pilot Type: Interrupted
• Application: On/Off Primary Control w/Prepurge
• Item Weight: 2.00 lbs per EA
• Delayed Main Valve: Yes
• Main Flame Establishing Period: 10 Sec
• Pilot Flame Establishing Period: 4 Sec, 10 Sec
