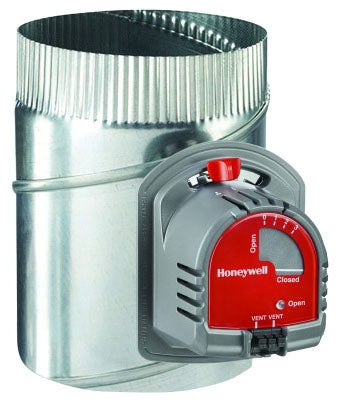

Honeywell EARD8TZ/U Fresh Air Damper, 8 in Dia, Round, 24 VDC

Product Description

The Honeywell EARD8TZ/U is a fresh air damper designed for HVAC systems. This product features an eight-inch diameter, round, single-blade construction that is power open and spring closed. It is suitable for use in fresh air intake systems and assures minimal leakage.

• Galvanized steel blade offers durability.
• Quiet operation to maintain comfort.
• Easy connection to various duct types.

Product Highlights

The EARD8TZ/U is engineered for effective ventilation. It provides efficient air flow with a robust motor rated at twenty-four volts AC. The damper can be converted from power open to spring return for flexible operation.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: EARD8TZ/U

Technical Specifications

• Type: Round, Single Blade, Power Open, Spring Closed
• Duct Size: Eight inch diameter
• Blade Material: Galvanized steel
• Motor Rating: 24 Volt AC, 60 Hertz, 0.8 Amp
• Motor Torque Rating: 71 Inch-Ounce
• Pressure Drop: Less than 0.0329 Inch WC at 800 Feet Per Minute
• Temperature Rating: 40 to 140 degrees Fahrenheit
• Maximum Static Pressure Rating: 1 Inch WC
