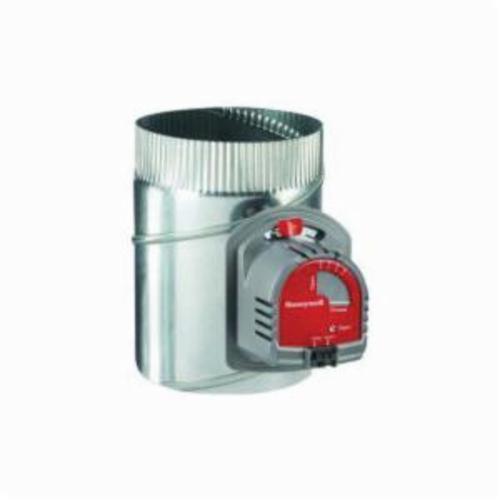

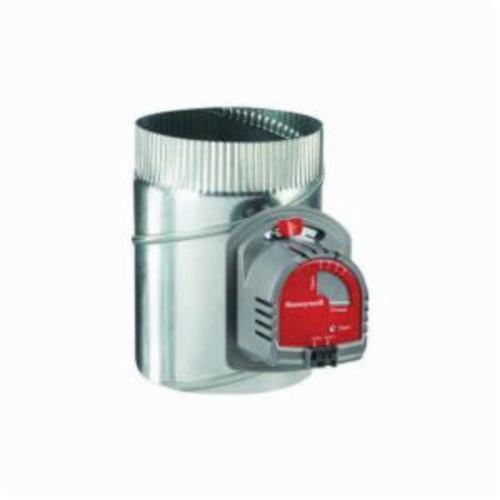

Honeywell EARD6TZ/U TrueZONE Single Blade Fresh Air Damper 24 VAC 6 in

Product Description

The Honeywell EARD6TZ/U is a single blade fresh air damper designed for zoning applications. This unit operates on 24 VAC and is suitable for round ducts with a size of six inches. The damper features an adjustable position range, allowing for efficient airflow management. It can be shipped as either a power open or spring return closed damper.

• Adjustable damper position range stops

• Quiet operation

• Can be field-converted for different damper configurations

Product Highlights

The Honeywell EARD6TZ/U is ideal for HVAC professionals who need a reliable damper for fresh air control in residential and commercial systems.

Product Information

Standard Information

• Brand: Honeywell

• Part Number: L5280

Technical Specifications

• Electrical Connections: M1-Power/M6-Common Terminal

• Finish: Galvanized

• Material: Steel

• Motor Type: Power Open, Spring Closed

• Series: EARD

• Shape: Round

• Size: 6 inches

• Temperature Rating: 0 to 165 degrees Fahrenheit

• Timing: 30 seconds

• Type: Single Blade

• Voltage Rating: 24 VAC
