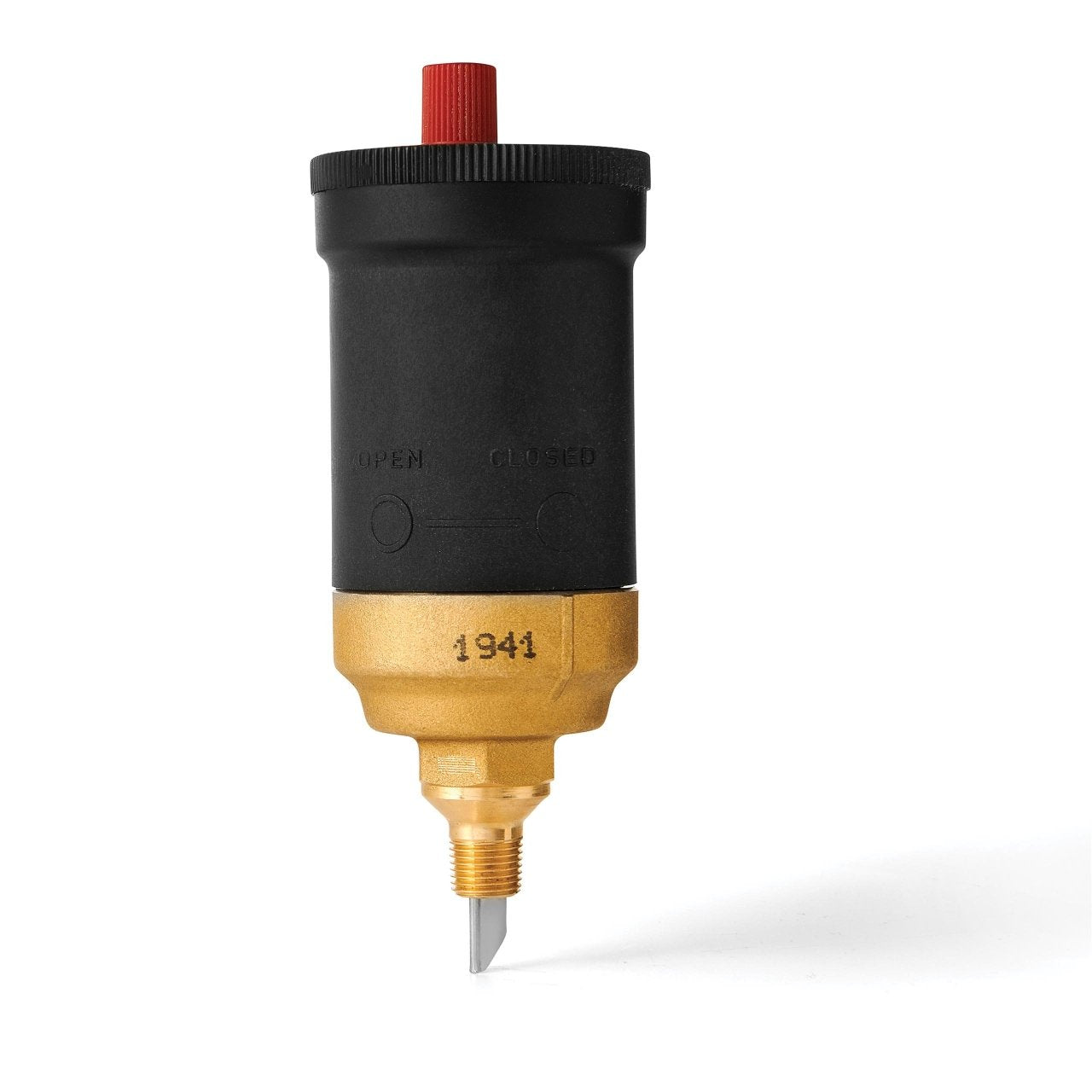

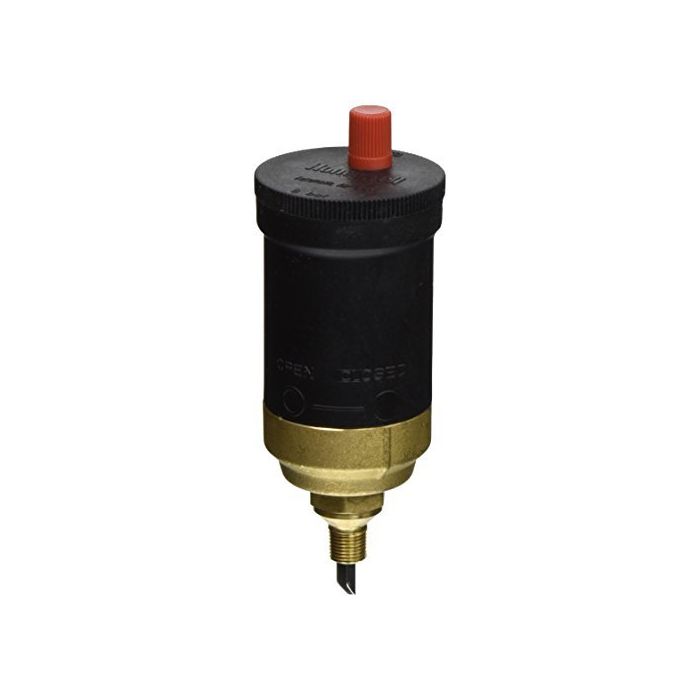

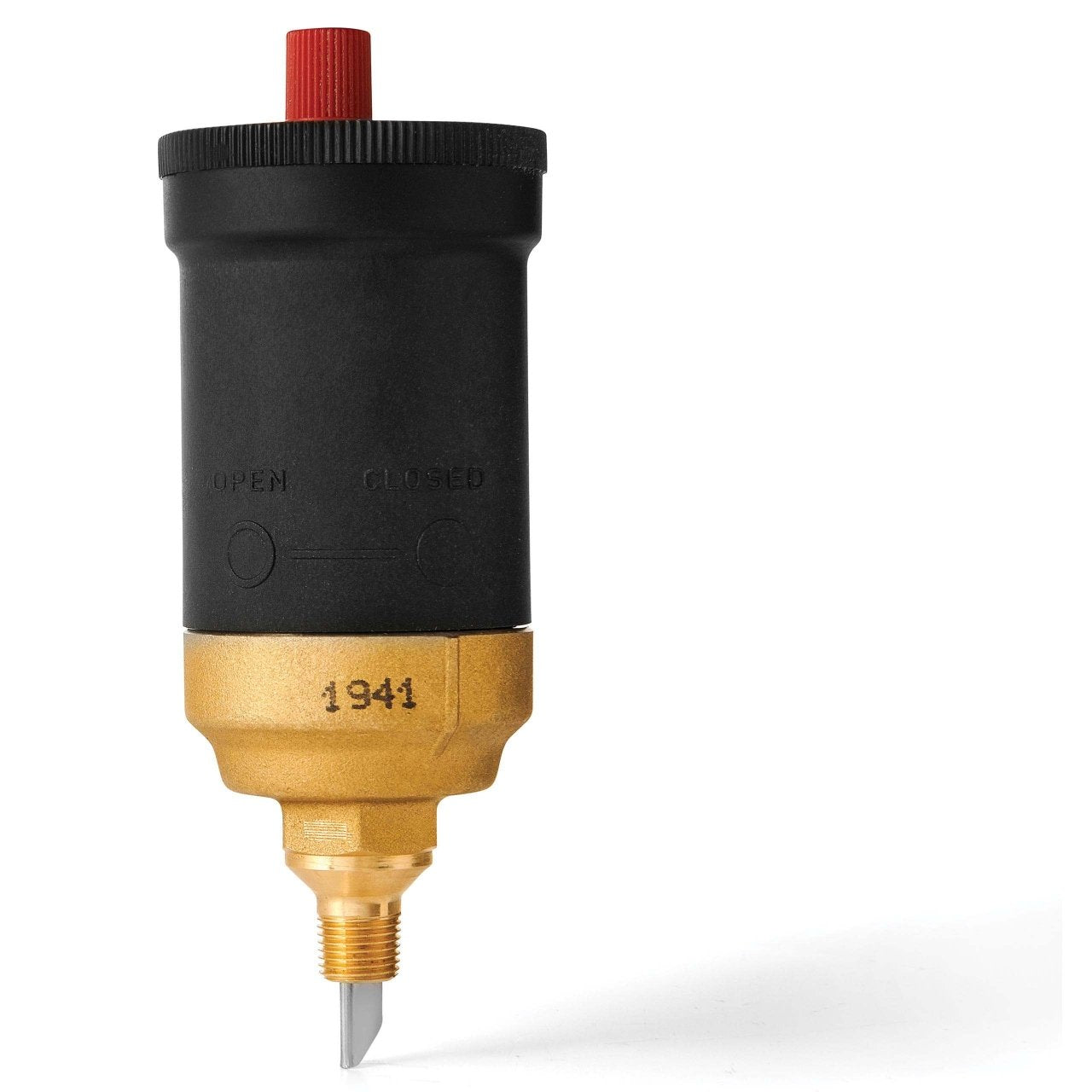

Honeywell EA122A1002/U Automatic Air Vent

Product Description

The Honeywell EA122A1002/U automatic air vent is effective for removing air in closed hot or cold water systems. It has a removable float and valve assembly. The materials used are resistant to chemicals and corrosion. This vent also includes a shut-off feature and a vacuum break. Maintenance can be done without the need to drain the system.

• Designed for air ventilation and potable water systems
• Includes integrated shut-off feature
• Features expanding discs to minimize leaks

Product Highlights

Reliable for any air handling situation in HVAC systems.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: EA122A1002/U

Technical Specifications

• Application: Air Ventilation, Potable Water Systems
• Controlled Media: Water-Glycol Mixture per VDI 2035
• Connection Type: Male NPT
• Pipe Size: 1/8 inch
• Operating Pressure (Max): 90 psi
• Media Temperature (Max): 212 °F
• Product Diameter: 1 7/8 inch
• Product Height: 5.25 inch
• Product Length: 1.88 inch
• Seal Material: NBR
• Float Material: Polyethylene (PE)
• Body Material: Thermoplastics
• Weight: 0.2 pounds
