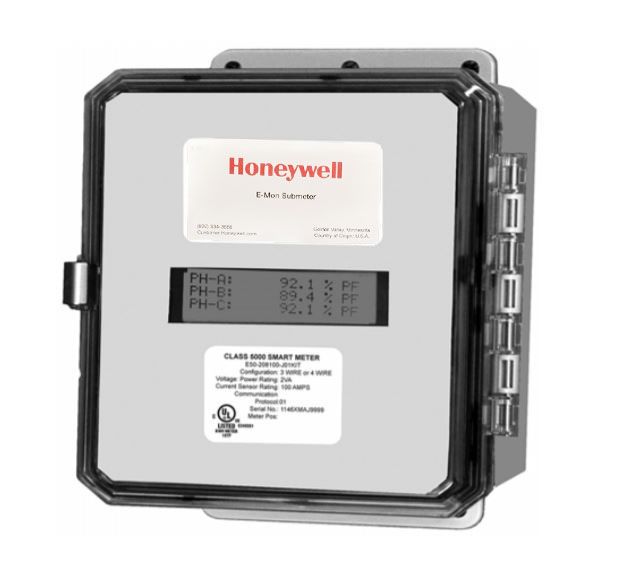

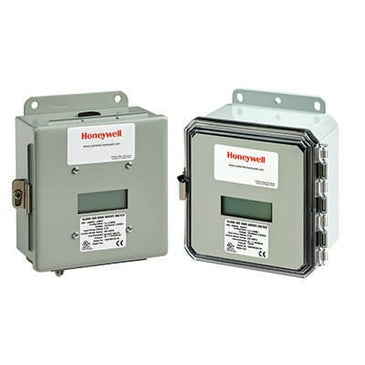

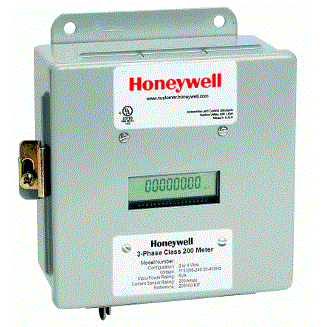

Honeywell E50-480100-J05KIT Meter 277/480V (Class 5000)

Product Description

The Honeywell E50-480100-J05KIT is a Class 5000 meter designed for submetering applications in 277/480V three-phase power systems. It has a current rating of 100A and features three split-core current sensors with a 2V output. This unit is enclosed in a durable JIC steel enclosure and is compatible with EZ-7 and BACnet IP protocols.

• Supports EZ-7 and BACnet IP protocols
• Includes three split-core current sensors with 2V output
• Housed in a JIC steel enclosure

Product Highlights

This meter is suitable for various applications, allowing for integration with water, gas, BTU, and steam meters. It provides pulse outputs and features external meter inputs, making it versatile for monitoring multiple energy types.

Product Information

Standard Information

• Manufacturer: Honeywell
• Condition: New

Technical Specifications

• Part Number: E50-480100-J05KIT
• Voltage (L-N/L-L): 277/480
• Current: 100A
• Configuration Phases: Three Phase
• Enclosure: JIC Steel
• Class: 500
• Current Sensor Output: 2V
• Current Sensors Included: Yes (3)
• EZ-7: Yes
