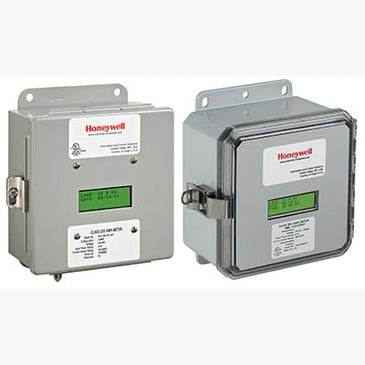

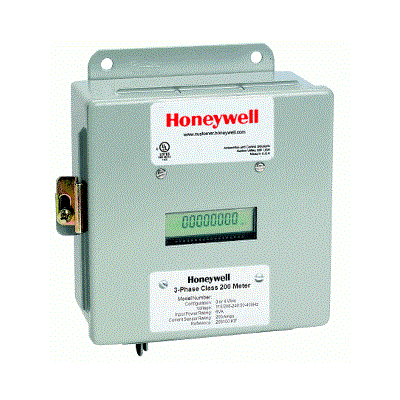

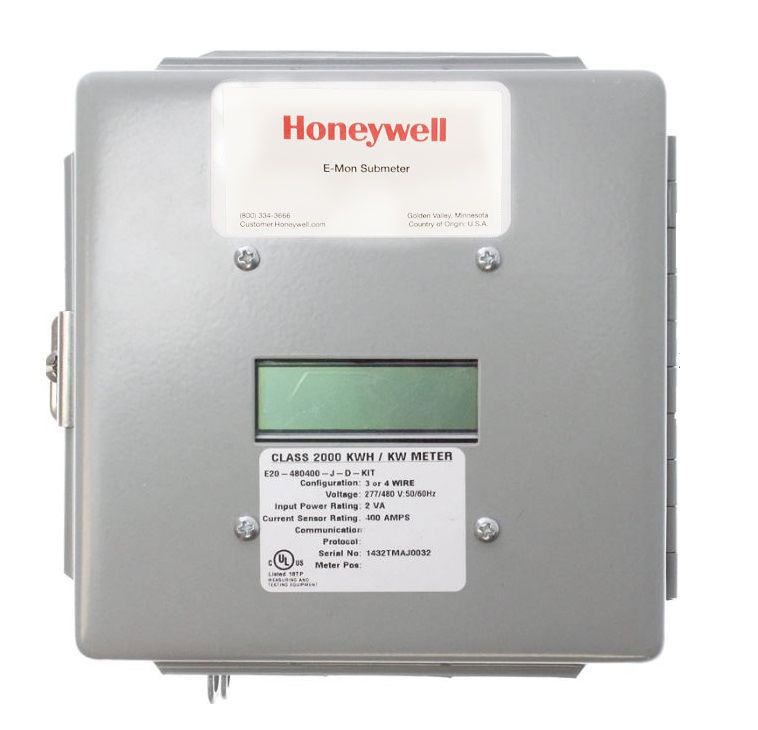

Honeywell E20-4801600JKIT Class 2000 Meter 277/480V 1600A

Product Description

The Honeywell E20-4801600JKIT is a Class 2000 meter suitable for energy management applications. Designed to operate at 277/480 volts and capable of handling up to 1600 amperes, this meter is ideal for monitoring energy usage across various scales from specific load panels to entire buildings.

• Features a direct-read 2-line alpha-numeric LCD display.
• Non-volatile memory retains readings in case of power failure.
• Includes three split-core current sensors with a 2-volt output for effective energy monitoring.

Product Highlights

This Class 2000 meter is essential for understanding energy consumption and improving efficiency.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• MPN: E20-4801600JKIT
• Voltage: 277/480V
• Amperage: 1600A
• Enclosure Type: JIC Steel
• Output Type: Pulse
• Current Sensor Type: Split-Core
• Current Sensor Output: 2V
• Weight: 12.28 lbs
