Honeywell E20-208800-JKIT Class 2000 kWh Meter

Product Description

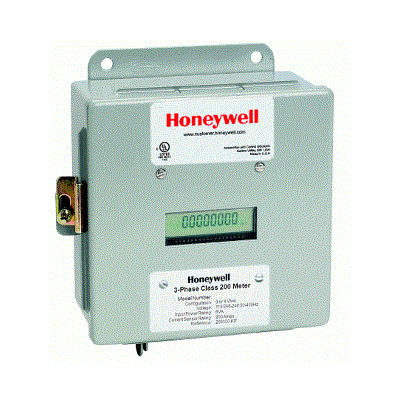

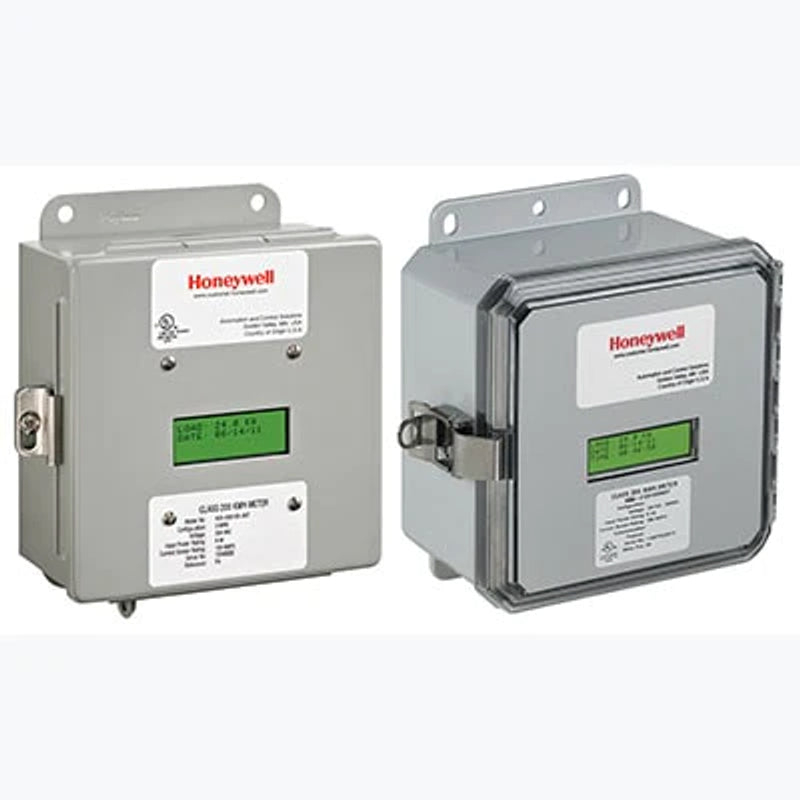

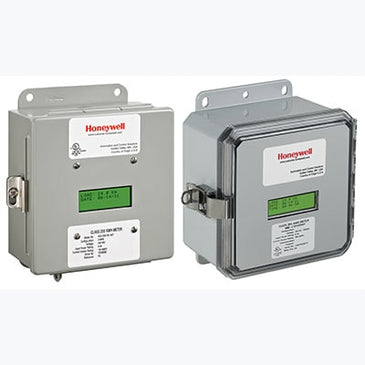

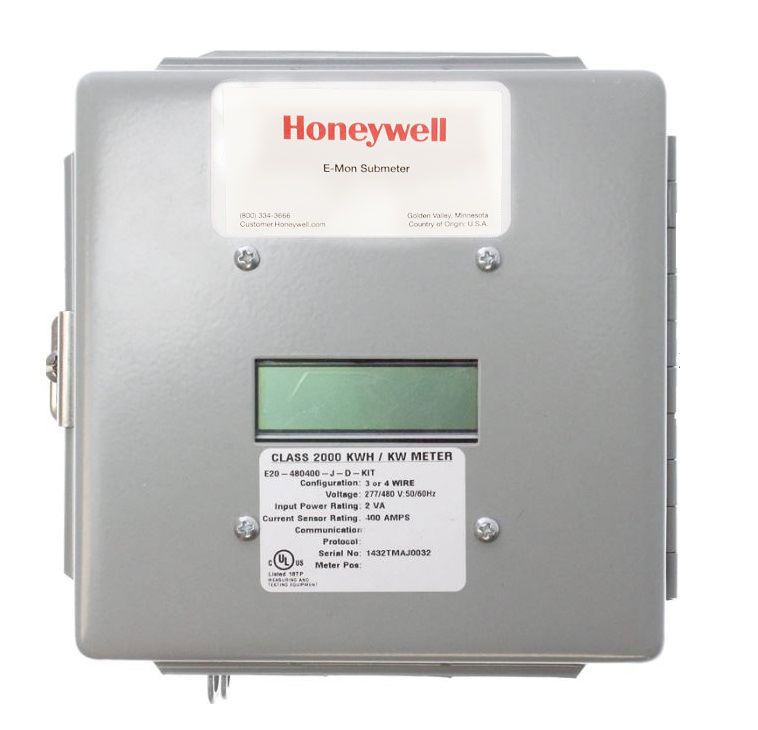

The Honeywell E20-208800-JKIT is a Class 2000 kWh meter used for monitoring energy consumption across various applications. This meter has an eight-digit LCD display that allows for direct reading of cumulative kWh and real-time kW load. It is designed for use with 120/208-240V, 3-Phase, 4-Wire and 240V, 3-Phase, 3-Wire circuits. The unit comes with three split-core current sensors and is enclosed in an industrial-grade steel casing with a padlocking hasp for secure indoor installation.

• Revenue-grade accuracy for precise energy measurement.
• Non-volatile memory to retain readings during power outages.
• Current sensor diagnostics ensure reliable operation.

Product Highlights

The Honeywell E20-208800-JKIT serves professionals needing accurate energy monitoring in various industrial settings.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: E20-208800-JKIT

Technical Specifications

• Voltage: 120/208-240V, 3 Phase, 4W and 240V, 3 Phase, 3W
• Amp Rating: 800 A
• Current Sensor: 3 split core current sensors
• Enclosure Type: Industrial Grade JIC Steel
• Display: 8-digit LCD display
• Installation Distance: Up to 2000 feet from the meter
• Listing: UL listed
• Use: For indoor applications
• Dimensions: 7.25 inches H x 7 inches W x 3.25 inches D
• Application: 3-Phase kWh Meter
• Type: Pulse Meter
