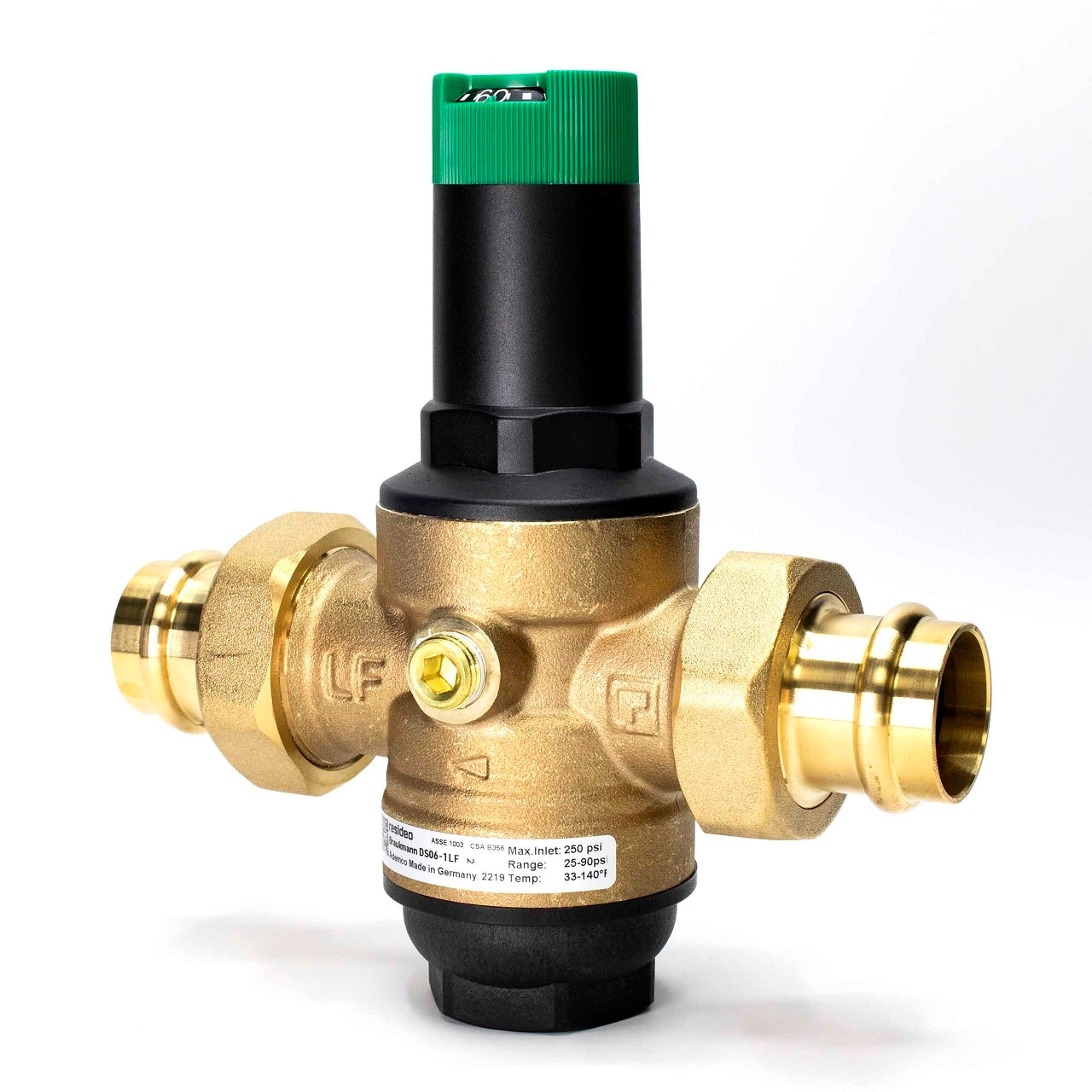

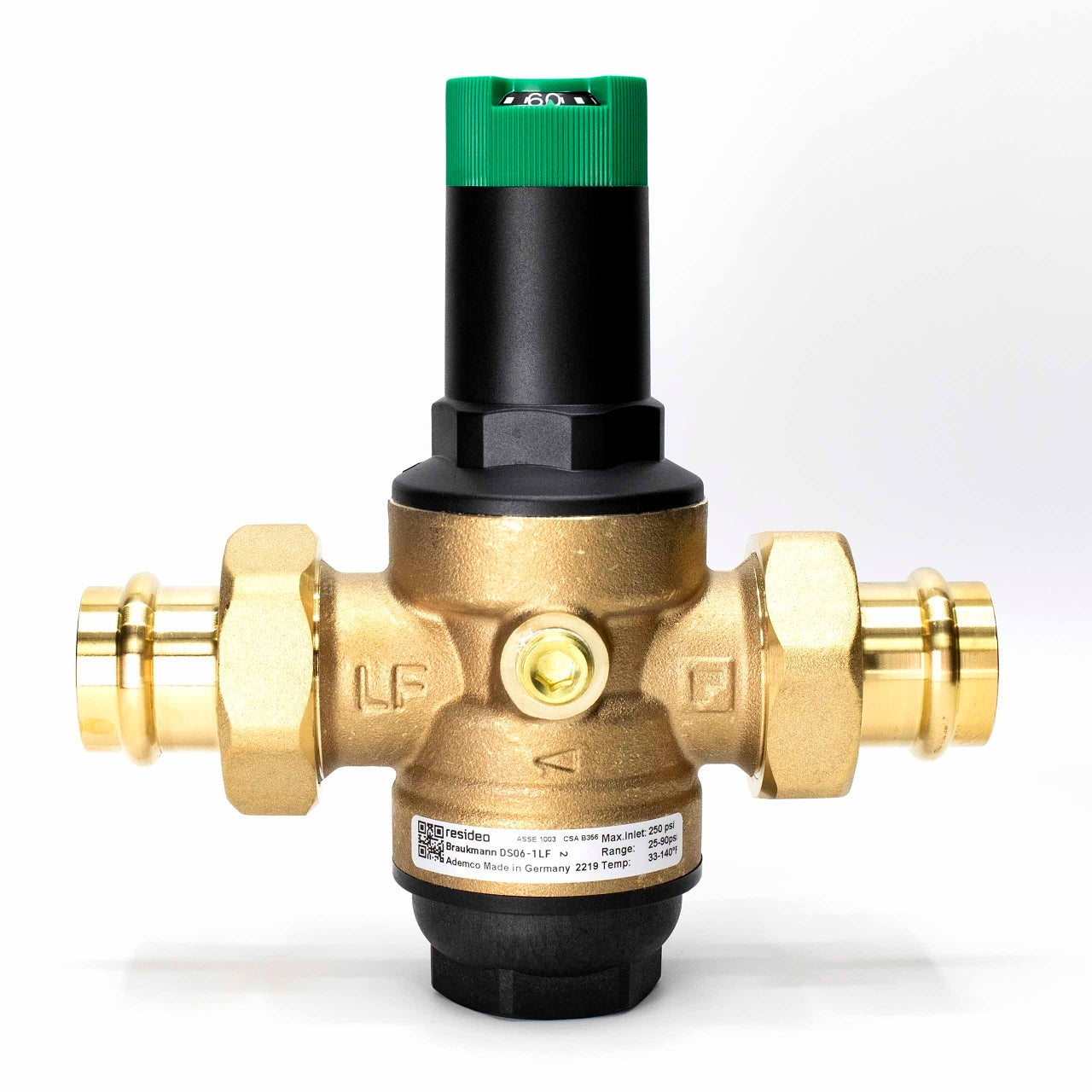

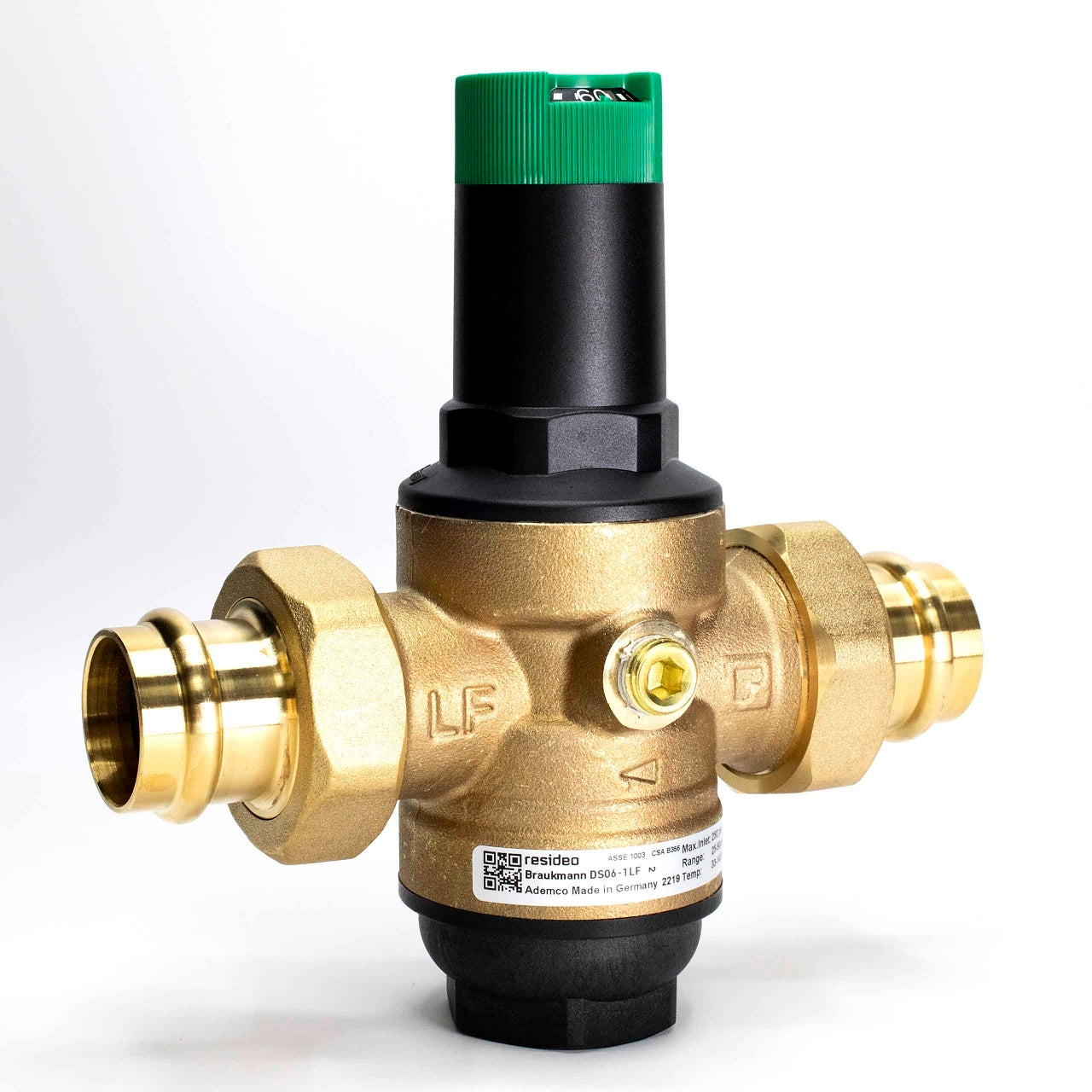

Honeywell DS06-104-SUP-LF DialSet Pressure Regulating Valve

Product Description

The Honeywell DS06-104-SUP-LF DialSet Pressure Regulating Valve is a key component for maintaining a stable outlet pressure in potable water systems. This valve features a downstream pressure adjustment dial to ensure precise setting. Made from lead-free ECO BRASS, it is suitable for both hydronic applications and water distribution systems. The valve helps regulate inlet pressure, ensuring a consistent outlet pressure that enhances system efficiency and safeguards against damage.

• Equipped with a DialSet mechanism for easy pressure adjustments.
• Constructed with lead-free ECO BRASS for safety.
• Ideal for use in potable water pressure regulation.

Product Highlights

This product is essential for maintaining water pressure within safe limits in various systems.

Product Information

Standard Information

• Brand: Honeywell Potable Water
• MPN: DS06-104-SUP-LF

Technical Specifications

• Valve Type: DialSet Pressure Regulating Valve
• Connection Size: 1.5 inches
• Connection Type: Female NPT Threaded Inlet and Outlet
• Controlled Media: Potable Water
• Inlet Pressure (Max): 250 psi
• Outlet Pressure (Min): 25 psi
• Outlet Pressure (Max): 90 psi
• Preset Outlet Pressure: 60 psi
• Pressure Range: 25-250 psi
• Media Temperature (Min): 33°F
• Media Temperature (Max): 140°F
• Ambient Operating Temperature (Min): 33°F
• Ambient Operating Temperature (Max): 140°F
• Product Height: 11.81 inches
• Product Length: 6.97 inches
• Valve Body Material: Lead-free ECO BRASS
• Approvals and Standards: ASSE 1003-2020 Listed, CSA Certified, IAPMO Listed, NSF/ANSI 61 Compliant, UPC Listed
• Number of Connections: 2
• Differential Pressure (Min): 14.5 psi
• Valve Body Pattern: Straight Through
• Valve Diaphragm Material: Fabric-reinforced diaphragm
• Warranty: 1 Year
