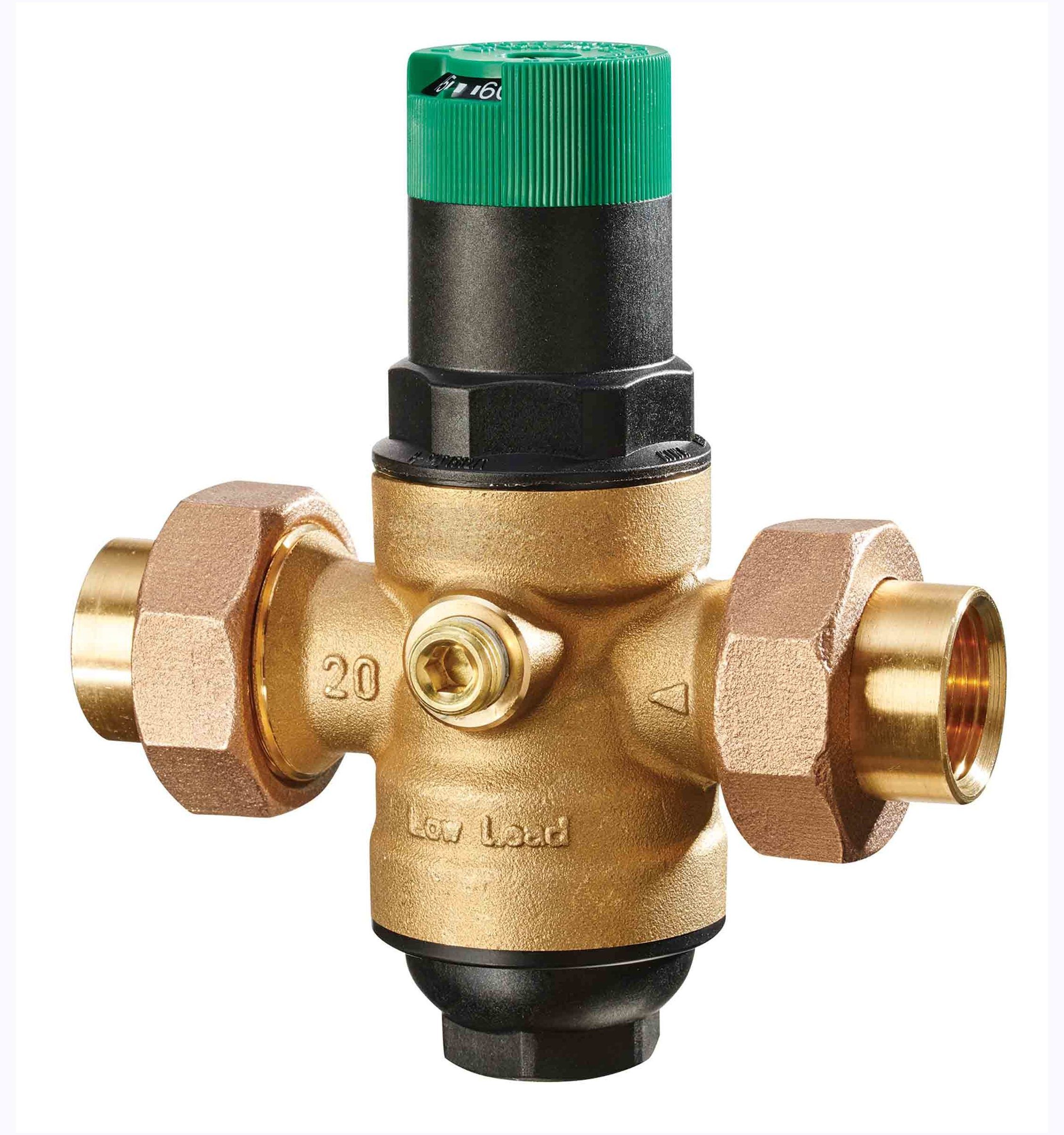

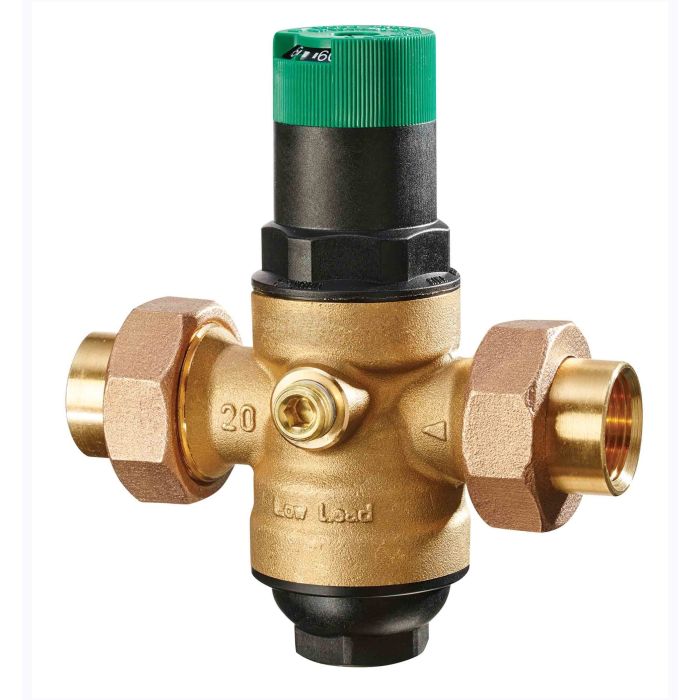

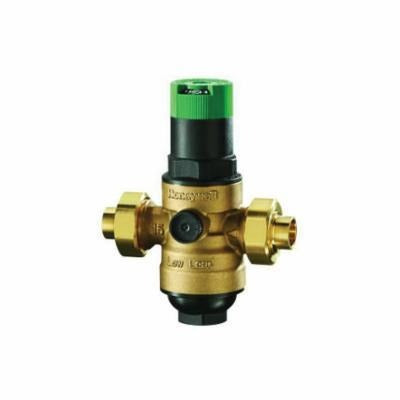

Resideo DS06-103-DUS-LF/U Pressure Regulating Valve (1-1/4 in FNPT)

Product Description

Resideo DS06-103-DUS-LF/U is a lead-free Dial-Set pressure regulating valve for potable water applications. The bronze-bodied 1-1/4 inch FNPT regulator provides a calibrated outlet adjustment range of 25 to 90 psi, a maximum inlet rating of 250 psi, and a 140 F operating temperature. It includes a built-in Dial-Set adjustment, a noncorroding unitized replaceable cartridge, a built-in strainer, and 1/4 in NPT test taps accessible from both sides.

• Bronze body with stainless steel and engineered-plastic internal parts and fabric-reinforced diaphragm
• Outlet pressure adjustable 25–90 psi; maximum inlet pressure 250 psi; 10:1 maximum reducing ratio
• Built-in Dial-Set (no gauge required), unitized replaceable cartridge, 1/4 in NPT gauge taps and built-in strainer

Product Highlights

1-1/4 in Dial-Set pressure regulating valve for potable water; double-union sweat/FNPT connections; low-lead compliant with multiple certifications

Product Information

Standard Information

• Brand: RESIDEO
• Manufacturer Part Number: DS06-103-DUS-LF/U
• Country of Origin: Import
