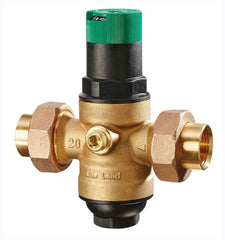

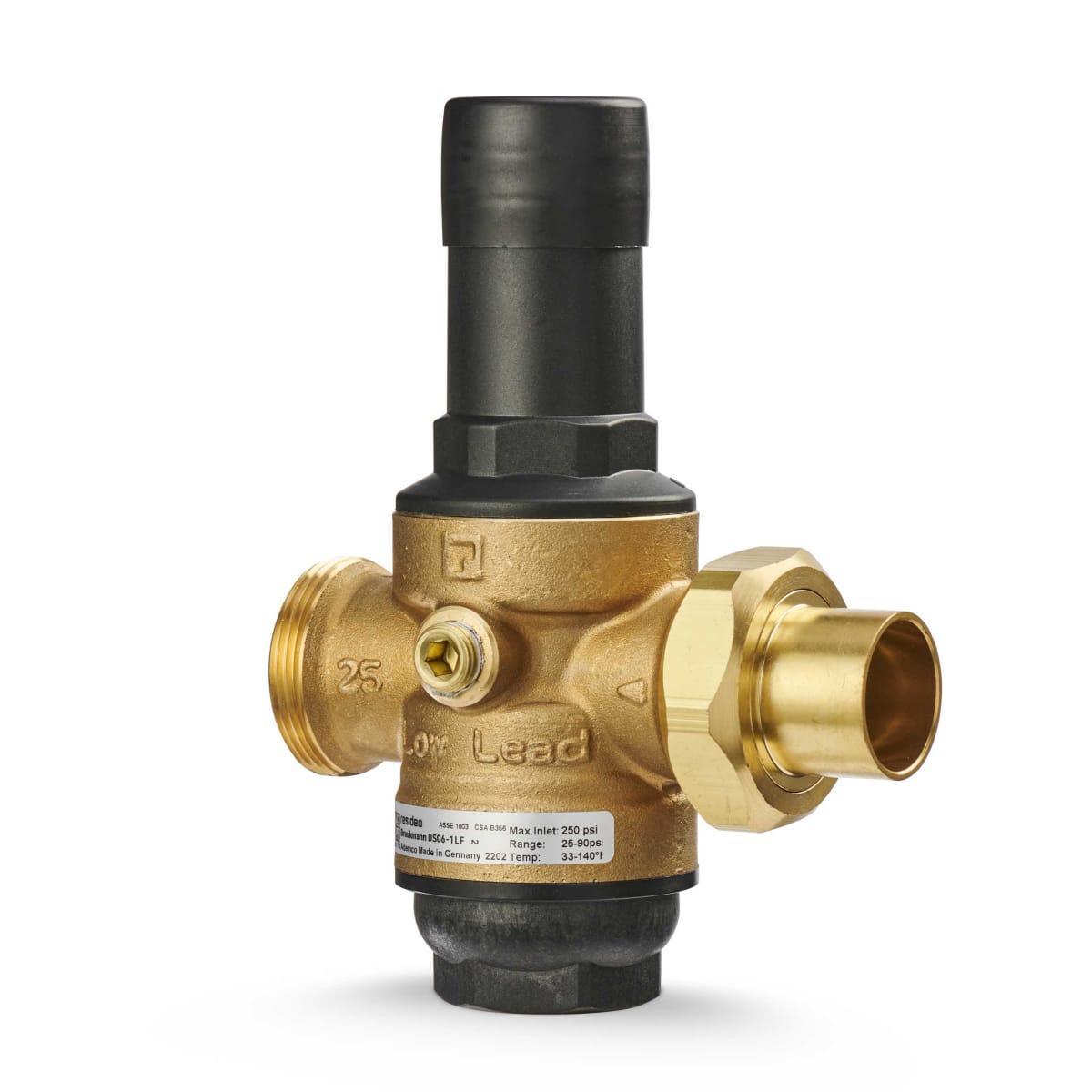

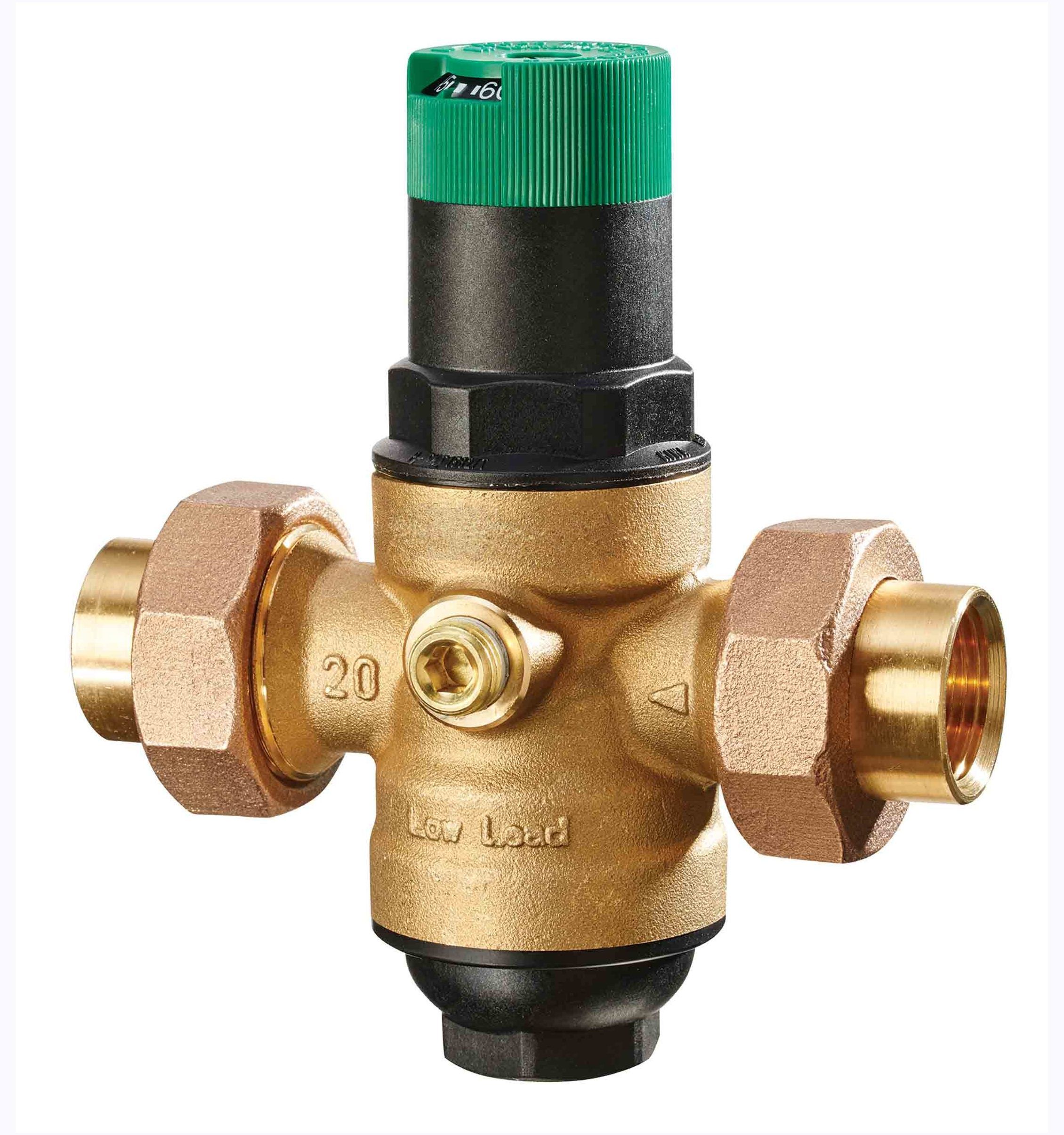

Honeywell DS06-102-SUS-LF/U Pressure Regulating Valve 1 in. 2 Way

Product Description

The HONEYWELL DS06-102-SUS-LF/U is a 2-way pressure regulating valve designed for potable water and irrigation applications. It features NPT, Single Union Sweat connections, a bronze body, and a fabric-reinforced diaphragm. Internal components are made of stainless steel and engineered thermoplastics. This valve maintains a constant outlet pressure over a wide range of inlet supply pressures, operating between 33 F to 140 F (1 C to 60 C) with a factory set close-off pressure of 60 psi.

• Maintains a constant outlet pressure over a wide range of inlet supply pressures.
• Suitable for potable water and irrigation applications.
• Downstream pressure adjustment dial eliminates the need for a pressure gauge for setting.

Product Highlights

Features a balanced cartridge design for thermal expansion and a built-in strainer for simplified maintenance, with an outlet pressure adjustment range of 25 to 90 psi.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: DS06-102-SUS-LF/U
• Country of Origin: Import

Technical Specifications

• Service: Potable Water and Irrigation Applications
• Close-Off Pressure: 60 psi (Factory Set)
• Operating Temperature: 33 F to 140 F (1 C to 60 C)
• Connection Type: NPT, Single Union Sweat
• Body Material: Bronze
• Diaphragm Material: Fabric Reinforced
• Internal Materials: Stainless Steel and Engineered Thermoplastics
• Nominal Size: 1 in.
• Valve Type: 2 Way
• Max Inlet Pressure: 250 psi
• Series: DS06
• Outlet Pressure Adjustment Range: 25 to 90 psi
• Maximum Reducing Ratio: 10:1
