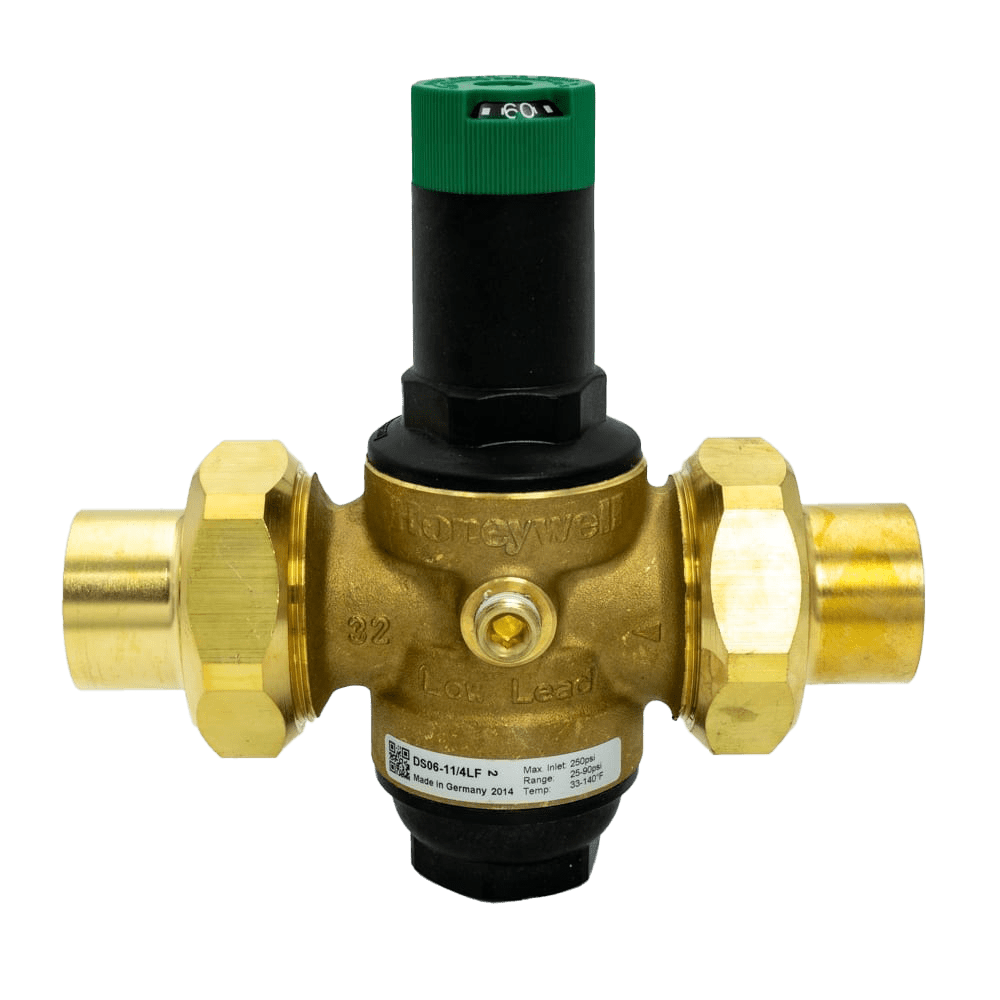

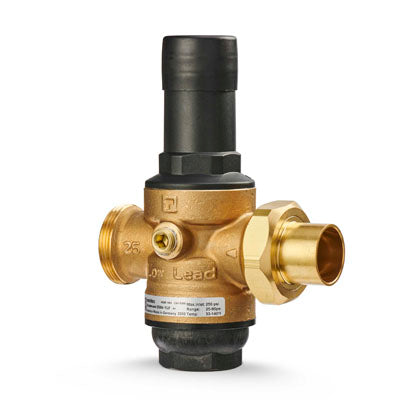

HONEYWELL DS06-102-SUP-LF 1 DialSet Pressure Regulating Valve

Product Description

The Honeywell DS06-102-SUP-LF 1 DialSet Pressure Regulating Valve is built to ensure a steady outlet pressure, making it ideal for potable water and irrigation systems. The valve adjusts easily with a downstream pressure dial, providing convenience without needing an additional pressure gauge for adjustments. Its durable and non-corroding unitized cartridge includes all necessary components and can be replaced with ease.

• Built-in dial set simplifies static pressure adjustments.
• Unitized cartridge allows for easy replacement.
• Integrated strainer reduces maintenance requirements.

Product Highlights

This pressure regulating valve is paramount for efficient water management in various systems. It's designed for long-lasting performance and reliability.

Product Information

Standard Information

• Brand: Honeywell
• Series: DS06

Technical Specifications

• Nominal Size: 1 inch
• Connection Style: Double Union NPT
• End Style: FNPT
• Pressure Rating: 250 psi
• Temperature Range: 140°F Max
• Outlet Pressure Adjustment Range: 25 to 90 psi
• Body Material: Bronze
• Gauge Tap Size: 1/4
• Inlet Pressure (Maximum): 250 psi maximum
• Fluid Temperature (Maximum): 140°F
• Ambient Temperature Range: 33°F to 140°F
