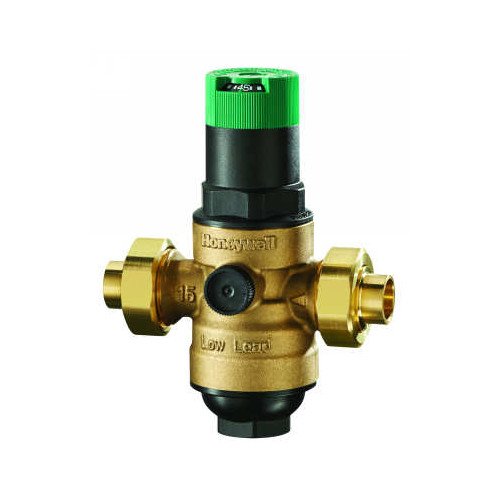

Honeywell DS06-101-SUS-LF Low Lead Pressure Regulating Valve 3/4 Inch Union Sweat

Product Description

The Honeywell DS06-101-SUS-LF Low Lead Pressure Regulating Valve is designed for controlling water pressure in various settings. Ideal for residential, commercial, and industrial applications, it ensures a consistent and optimal pressure output.

• Eliminates need for a pressure gauge with its built-in adjustment dial
• Features a non-corroding unitized cartridge
• Suitable for a variety of applications, reducing inventory needs

Product Highlights

This product is versatile and easy to install. The built-in adjustment dial eliminates the need for a pressure gauge. It also includes a strainer for easy maintenance.

Product Information

Standard Information

• Brand: Honeywell
• Model: DS06-101-SUS-LF
• Type: Valve
• Applications: Household, commercial, industrial, turf-and-irrigation
• Certifications: CSA B356, ASSE 1003, IAPMO/UPC, NSF 61

Technical Specifications

• Pressure Range: 25 to 90 PSI
• Factory Setting: 60 PSI
• Gauge Tap Size: 1/4 inch threaded
• Temperature Rating: 33 to 140 degrees Fahrenheit
• Body Material: Brass
• End Connection: Female Threaded
• Overall Dimensions: 4-3/8 inches by 5-53/64 inches
• Union Fitting Type: Single Union Soldered
