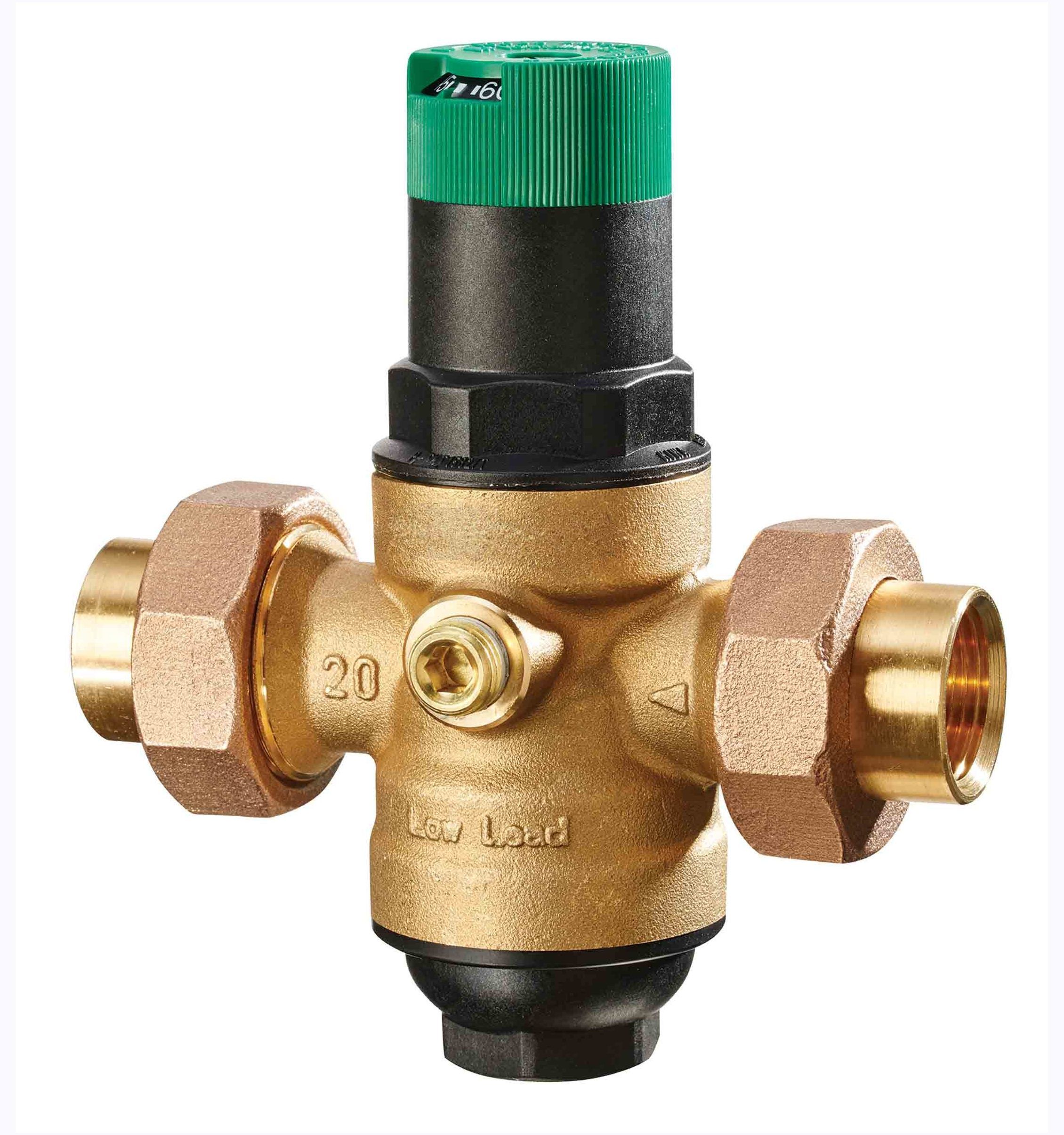

Honeywell DS06-101-LF/U pressure regulating valve 3/4 in. 2 way 250 psi

Product Description

The HONEYWELL DS06-101-LF/U Pressure Regulating Valve is a 3/4 inch 2-way valve designed for potable water and irrigation applications. It features a bronze body, fabric reinforced diaphragm, and internal components made of stainless steel and engineered thermoplastics. This valve maintains a constant outlet pressure across varying inlet supply pressures, with a factory set close-off pressure of 60 psi. It operates within a temperature range of 33 F to 140 F.

• Maintains a constant outlet pressure over a wide range of inlet supply pressures.
• Suitable for potable water and irrigation applications.
• Downstream pressure adjustment dial eliminates the need for a pressure gauge for setting.

Product Highlights

Features a Dial Set mechanism for pressure adjustment without a gauge and a non-corroding unitized cartridge for easy replacement.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: DS06-101-LF/U
• Country of Origin: Import

Technical Specifications

• Service: Potable Water And Irrigation Applications
• Close-Off Pressure: Factory Set At 60 psi
• Operating Temperature: 33 F To 140 F (1 C To 60 C)
• Body Material: Bronze
• End Style: FNPT
• Nominal Size: 3/4 in
• Pressure Rating: 250 psi
• Series: DS06
