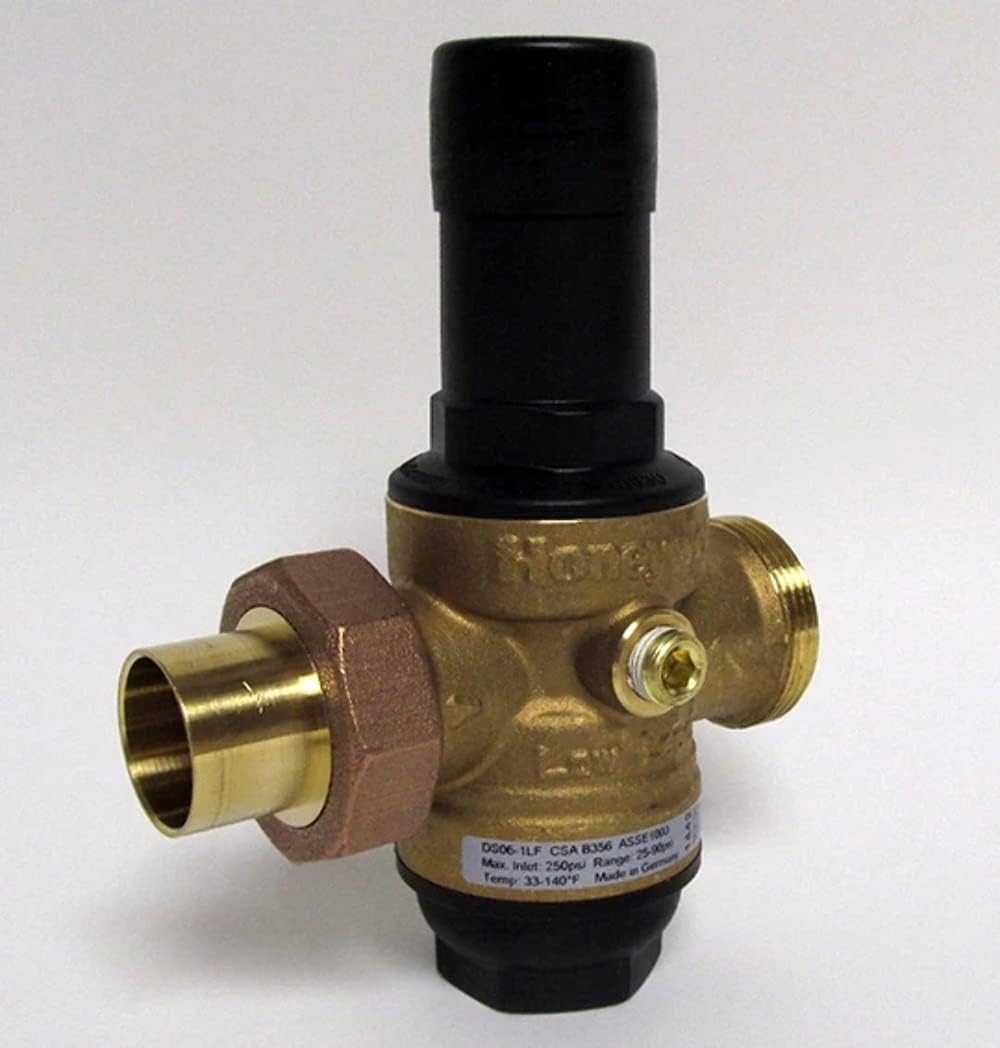

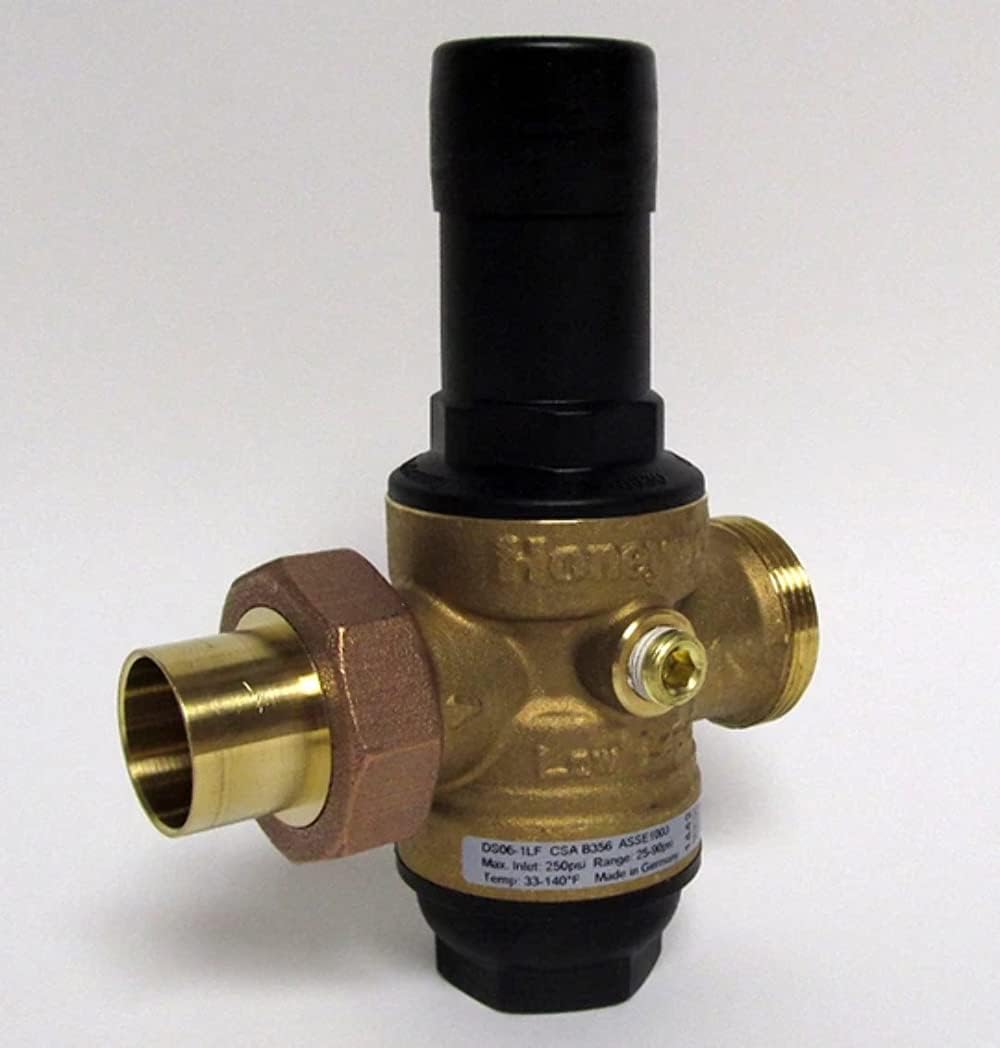

Honeywell DS06-100-SUS-LF/U PRV Dialset Pressure Regulating Valve Low Lead

Product Description

The Honeywell Dialset Pressure Regulating Valve model DS06-100-SUS-LF/U enhances system performance and durability by eliminating the need for a pressure gauge during installation and adjustment. This valve is engineered for precision with a robust feature set designed for diverse applications.

• Ease of installation with a built-in adjustment dial.
• Outlet pressure range of 25 to 90 PSI for varied application needs.
• Constructed with non-corroding unitized cartridge and bronze body enhancing longevity.

Product Highlights

This valve is key in reducing inventory requirements and operational complexities in environments ranging from household to commercial settings. The inclusion of a strainer simplifies maintenance and extends operational efficacy.

Product Information

Technical Specifications

• Body Material: Bronze
• Pressure Rating: 250 PSI
• Connection Type: Female Threaded x Female Threaded
• Temperature Rating: 140 degrees Fahrenheit
• Factory Setting: 60 PSI
• Strainer: Included
• Gauge Tap Size: 1/4 inch Threaded
• Overall Dimensions: 3.16 inches length x 5.95 inches height
