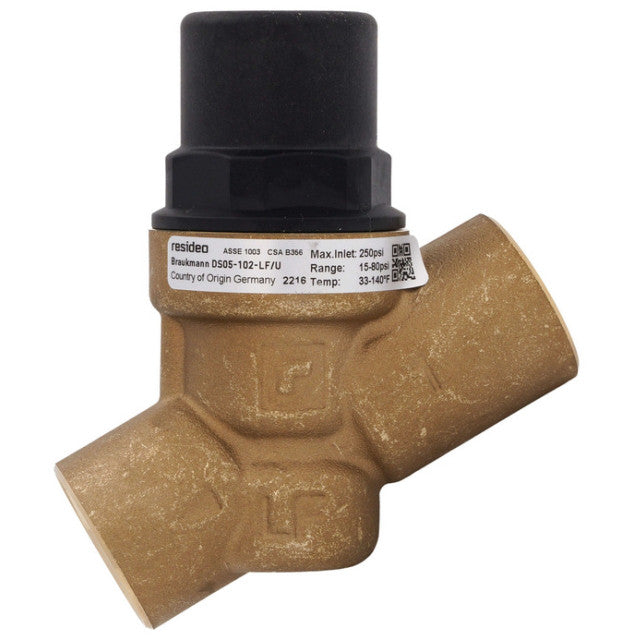

Honeywell DS05-102-LF 1 in. DN25 Female NPT Psure Regulating Valve

Honeywell DS05-102-LF 1 in. DN25 Female NPT Pressure Regulating Valve

Description:
The DS05 Pressure Regulating Valve is a high-quality balanced pressure reducing valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is suitable for potable water and irrigation applications, both indoor and outdoor.

Specifications:
Dimensions (in.): 3.8x4.2
Dimensions (mm): 97x107
Approvals, Canadian Standards Association: Certified (B356-10)
Operating Temperature Range (F): 140 F Maximum
Operating Temperature Range (C): 60 C Maximum
Approvals, Others: NSF/ANSI; IAPMO
Connection Type: Female NPT Threaded
Pipe Size (inch): 1 in.
Pipe Size (DN): DN25
Valve Type: Pressure Regulating Valve
Controlled Fluid: Potable water
Materials (Body): Lead-free ECO BRASS
Materials (Regulator): Fabric Reinforced Diaphragm
Materials (Interior parts): Stainless Steel and Engineered Thermoplastics
Outlet Pressure Adjustment Range (psi): 15-80 psi
Max. Inlet Pressure Rating (psi): 250 psi
