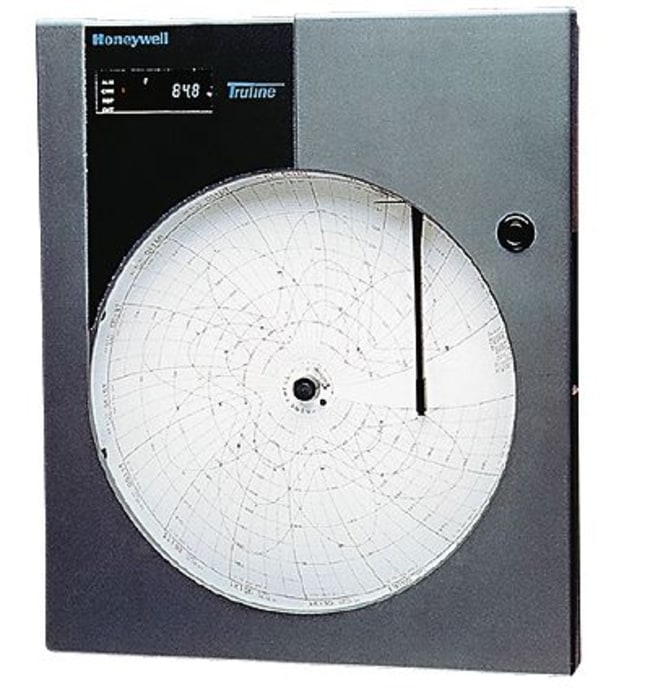

Honeywell DR45AT-1000-00-000 Truline Circular Chart Recorder

Product Description

The Honeywell DR45AT-1000-00-000 is a Truline series circular chart recorder designed for accurate data logging. This microprocessor-based unit can accommodate one to four channels, making it suitable for various applications. It uses twelve-inch circular charts and autonomously prints graph grids, scales, and timestamps. The recorder accepts various inputs such as thermocouples, resistance temperature detectors, millivolts, voltage, and current signals, and features RS-485 Modbus communications along with an integral PID controller.

• Uses twelve-inch circular charts.
• Accepts T/C, RTD, mV, 0-5 VDC, 4-20 mA, or Radimatic inputs.
• Equipped with a high-speed pen for precise recording.

Product Highlights

This circular chart recorder is ideal for monitoring temperature and other applications.

Product Information

Standard Information

• Model: Truline
• Number of Channels: 1 to 4

Technical Specifications

• Chart Size: 12 inches circular charts
• Input: T/C, RTD, mV, 0-5 VDC, 4-20 mA, Radimatic
• Pen Type: Truline high-speed pen
• Chart Type: All-purpose thermal chart
• Accuracy: ±0.05% full scale accuracy
• Door: Gray door with glass window
• Door Latch: Standard door latch
• Is FM: No
