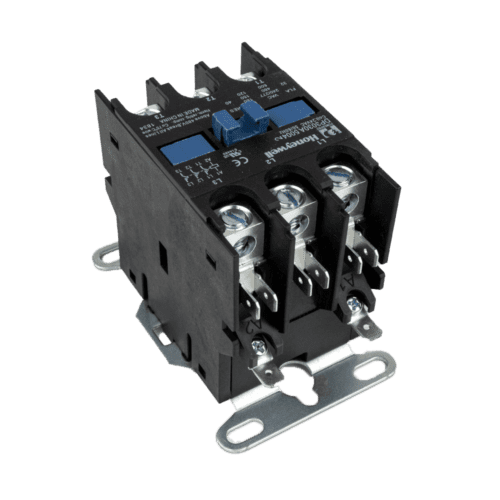

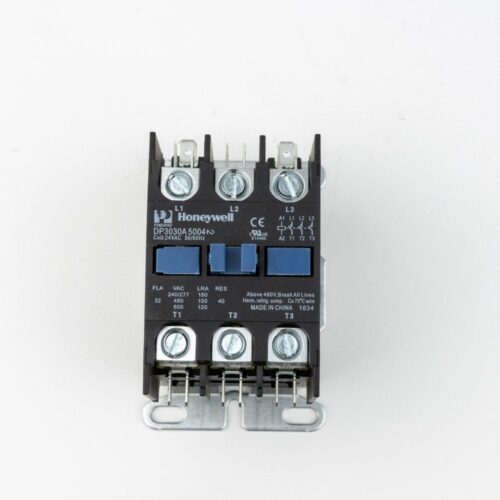

HONEYWELL DPL3030A5004 Definite Purpose Contactor 3-Pole 24 VAC 30 A

Product Description

The HONEYWELL DPL3030A5004 is a reliable 3-pole definite purpose contactor designed specifically for switching induction motors. This product operates using a 24 VAC coil voltage and is rated to handle up to 30 amps. It is constructed with electromagnetically operated components and features Class H high-temperature insulated coils, ensuring durability and performance.

• 3-pole contactor for reliable induction motor operation.
• Operates efficiently at 24 VAC coil voltage.
• Rated for a maximum load of 30 amps.

Product Highlights

This contactor is built to meet ARI-780 standards and performs well in various applications, making it suitable for HVAC and industrial use.

Product Information

Standard Information

• Brand: HONEYWELL
• MPN: DPL3030A5004

Technical Specifications

• Poles: 3
• Coil Voltage: 24 Vac
• Amperage: 30 Amps
• Contact Rating: 30 A resistive
• Contact Form: SPDT
• Terminal Style: 0.25 in quick connect

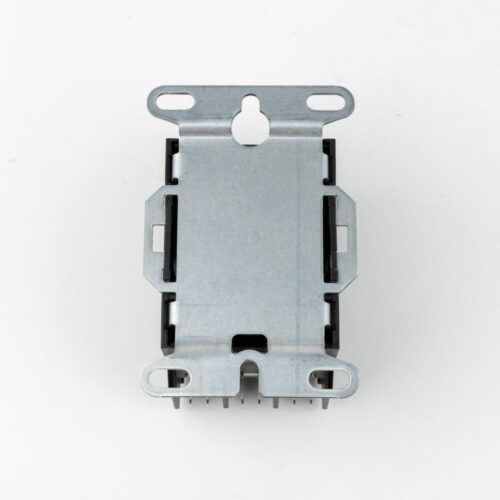

• Mounting Type: universal flange
• Operating Temperature: minus 20 to 150 F
• Insulation Class: Class B
• Dielectric Strength: 1500 V RMS
• Pickup Voltage: max 18 V
• Dropout Voltage: min 10 V
