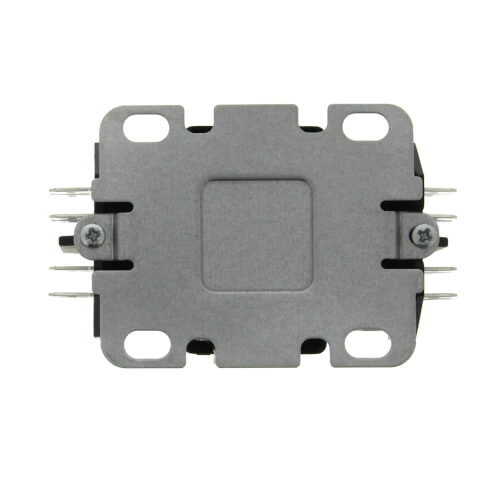

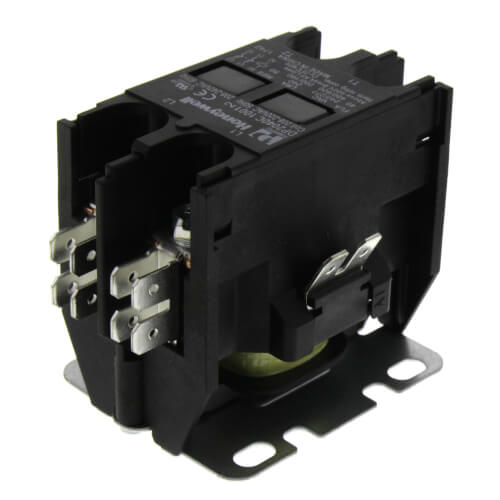

HONEYWELL DPL2040C1001 Economy Definite Purpose Contactor 40 Amps REPLACES DP2040C1001

Product Description

The HONEYWELL DPL2040C1001 is a contactor designed for effective switching in HVAC systems. This model supports high current loads while being controlled by a low voltage signal. It is certified under ARI-780 standards for reliable operational capabilities.

• Meets ARI-780 Standard for started ratings
• Includes silver cadmium oxide contacts for durability
• Low profile improves wiring space

Product Highlights

Ideal for HVAC applications, this contactor efficiently starts and operates induction motors.

Product Information

Standard Information

• Application: Economy Definite Purpose Contactor
• Poles: 2

Technical Specifications

• Amperage: 40
• Voltage: 208 VAC, 230 VAC, 120 V
• Temperature Range (F): -4°F to 149°F
• Coil Ratings: 120 V
• Contact Rating: 30 A resistive
• Terminal Style: 0.25 inches quick connect
• Mounting: Universal flange
• Operating Temperature: -20°F to 150°F
• Insulation Class: Class B
• Dielectric Strength: 1500 V RMS
• Pickup Voltage: Maximum 18 V
• Dropout Voltage: Minimum 10 V
• Dimensions: 2.37 inches high x 3.3 inches wide x 2 inches deep
