Product Description

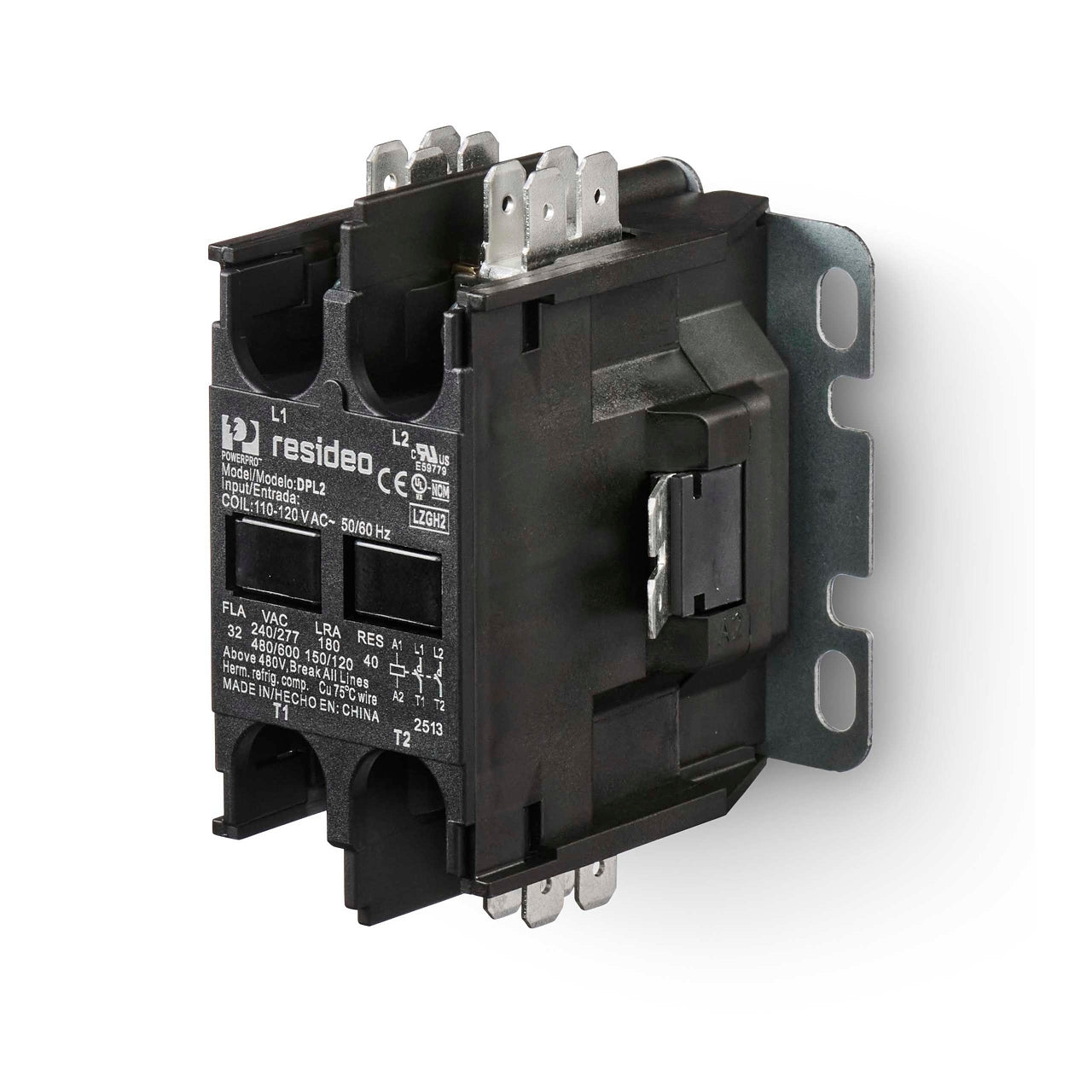

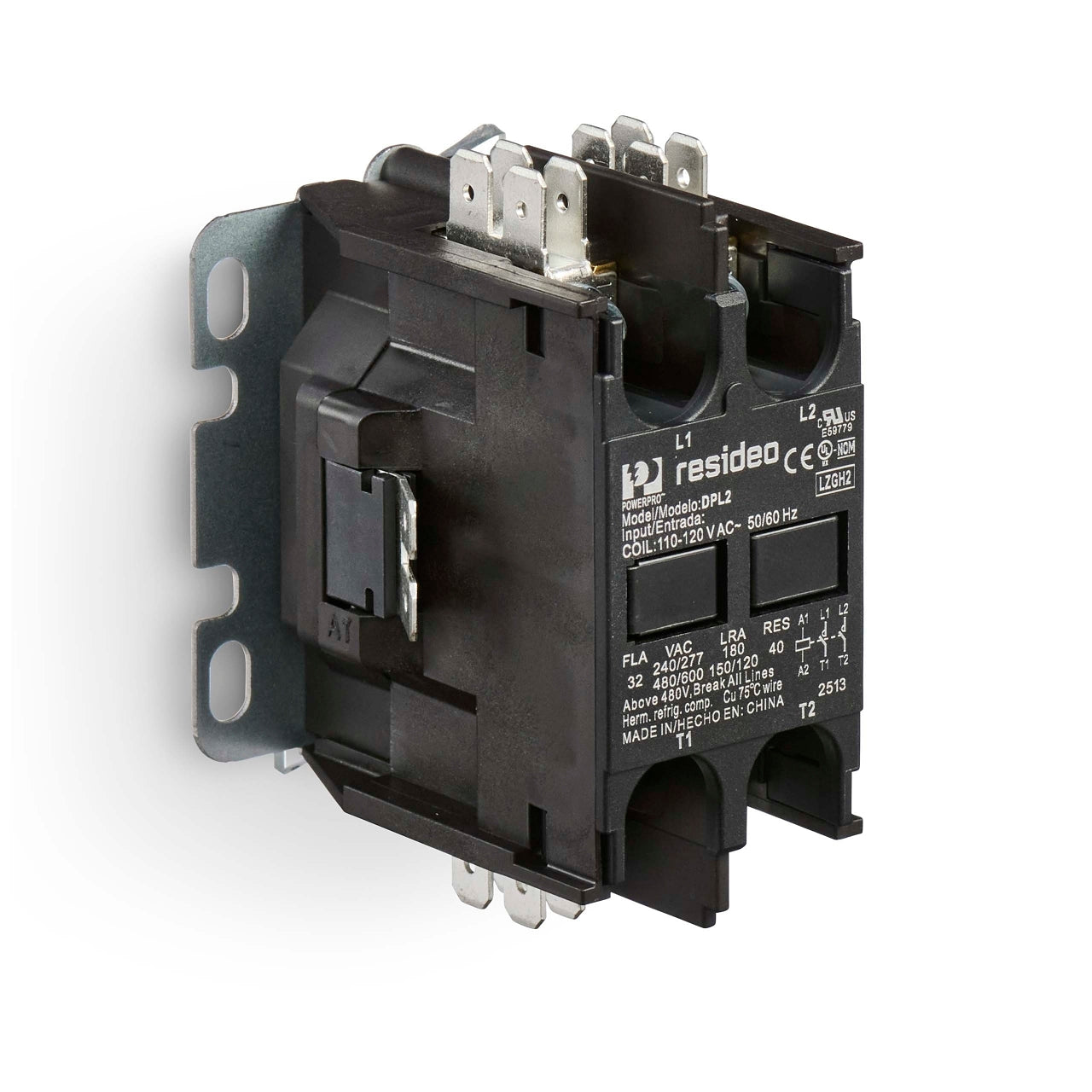

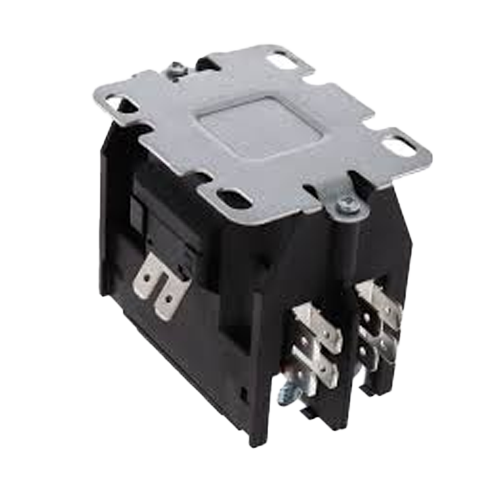

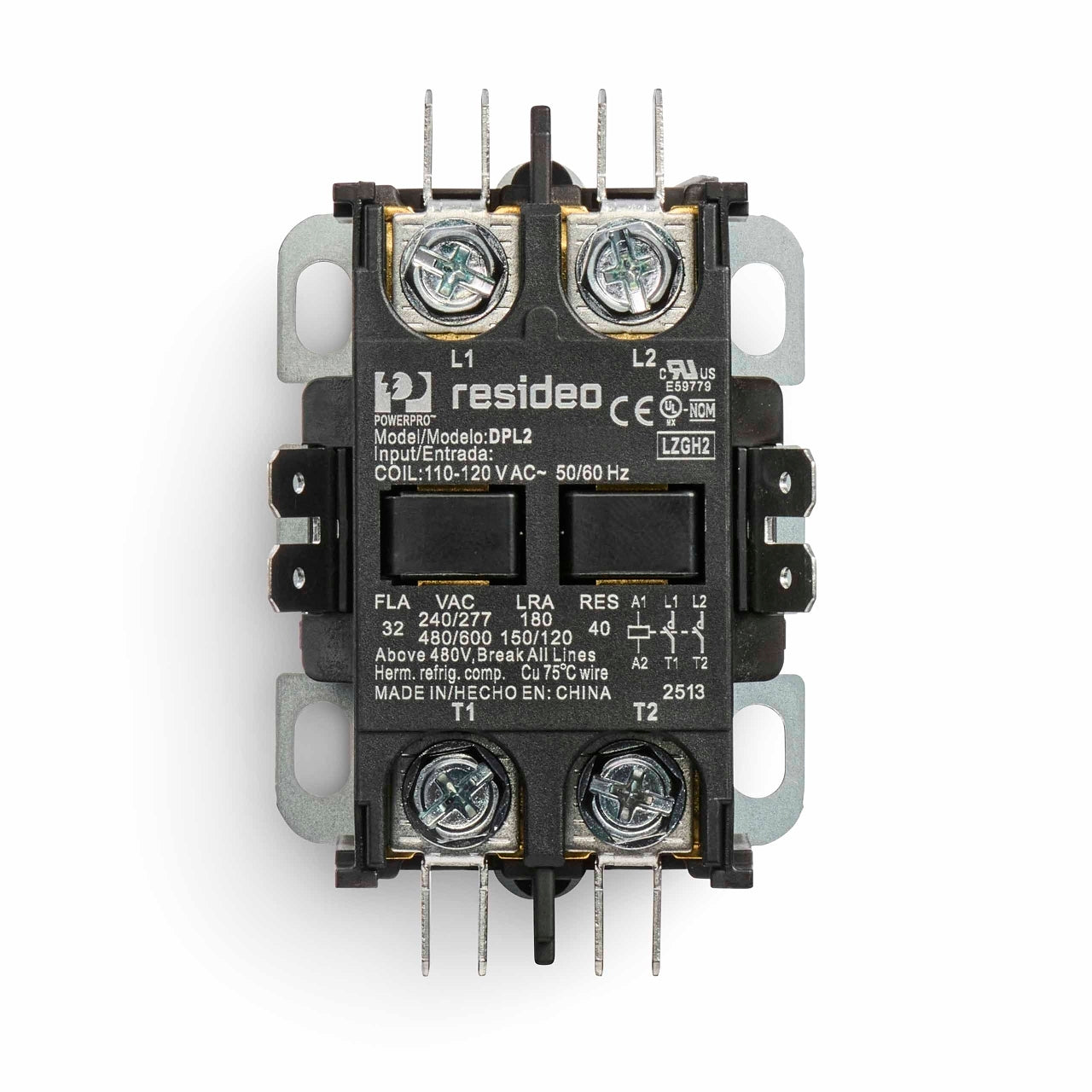

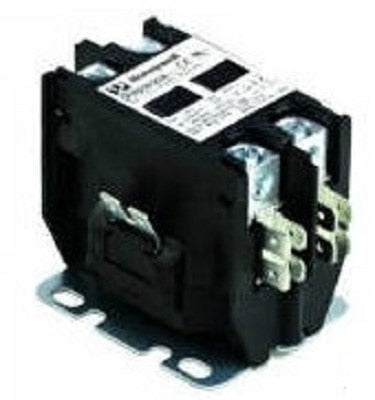

The HONEYWELL DPL2040A5004/U PowerPro Definite Purpose Contactor provides switching for starting induction motors and is compliant with A2L refrigerants. Engineered to meet A2L refrigerant standards and withstand rigorous cycles, this contactor ensures smooth operation and lasting reliability in heavy-duty HVAC applications.
- Compliant with A2L refrigerants.
- Meets ARI-780 Standard at started ratings.
- Silver cadmium oxide contacts provide long life under demanding duty cycles.
Product Highlights
This contactor is designed for dependable switching performance, flexibility in installation, and interchangeable mounting with most competitive devices.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: DPL2040A5004/U
-
Country of Origin: China
Technical Specifications
-
Application: PowerPro Definite Purpose Contactor
-
Product Features: Compliant with A2L refrigerants. Meets ARI-780 Standard at started ratings (500,000 cycle mechanical life, 200,000 cycle electrical life and 10,000 cycle recycle life); the most demanding ARI requirement., Silver cadmium oxide contacts provide long life under demanding duty cycles., Low profile design allows for more wiring room., Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
-
Approvals and Standards: UL Recognized Component: File No. E220475/ E59779, Guide No. LZGH2, LZGH8
-
Coil Rating Voltage: 24 V ac
-
Coil Connection Size: 1/4 in
-
Coil Connection Type: Quick Connect
-
Number of Poles: 2 Poles
-
Operating Frequency: 50 Hz, 60 Hz
-
Electrical Connection Type: Box lug w/ quad .250'' quick connect terminals
-
Switch Action: DPST
-
Ambient Operating Temperature (Min): -13 °F, -25 °C
-
Ambient Operating Temperature (Max): 158 °F, 70 °C
-
Product Height: 2.3 in, 58 mm
-
Product Width: 3.2 in, 81 mm
-
Refrigerant Compatibility: A2L refrigerants
-
Rated for: 40 amps
-
Amp: 40.0
-
Voltage: 24
