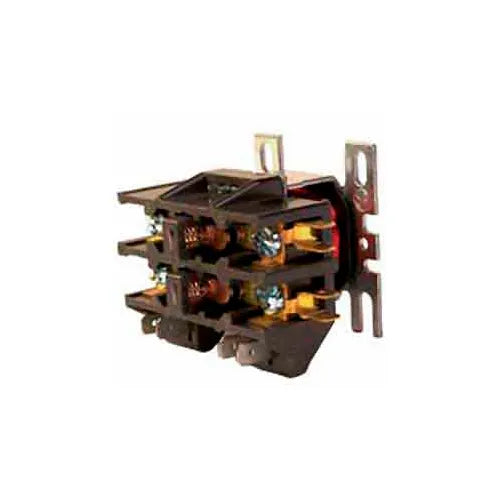

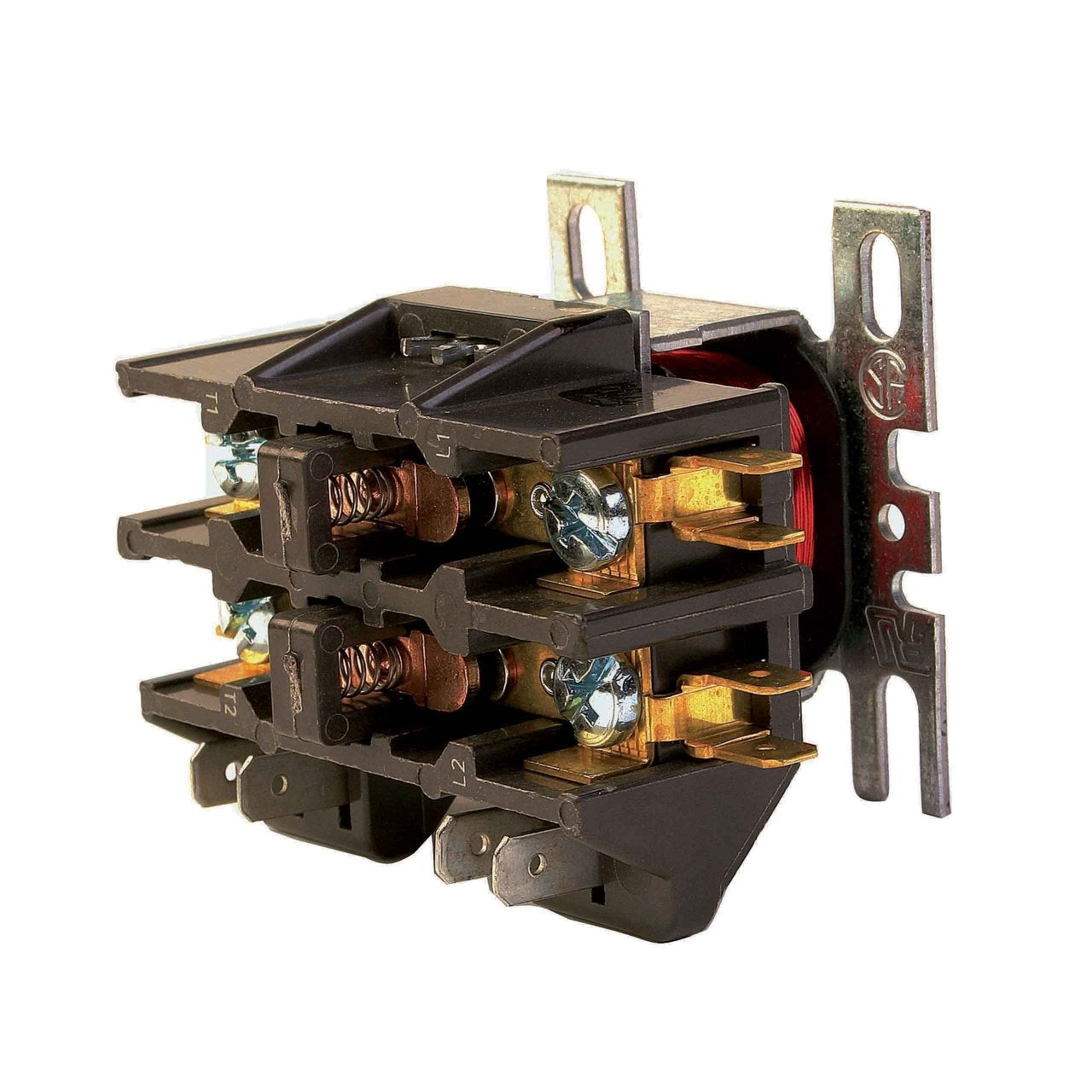

Honeywell DPL2030A1004 2 Pole Definite Purpose Contactor 24V DP2030A1004

Product Description

The Honeywell DPL2030A1004 is a 2 pole definite purpose contactor with a 24V AC coil voltage. This contactor is designed for electromagnetically-operated applications, ideal for starting induction motors. It is equipped with #10 combination head screw electrical connections and double quarter inch quick-connects.

• Silver cadmium oxide contacts for extended durability
• Low profile design for easier wiring
• Mounting holes for flexible installation

Product Highlights

This Honeywell contactor is suitable for various motor starting applications, providing a compact solution with reliable performance.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturers Part Number: DPL2030A1004

Technical Specifications

• Voltage: 24 V
• Poles: 2
• Electrical Connections: #10 Combination Head Screws
• Temperature Range: -4 to 149 °F
• Width: 3.63 inches
• Depth: 3.8 inches
• Height: 3.25 inches
• Power Rating/Voltage: 240/277/480/600 Volt AC at 50/60 Hertz
• Current Rating: 30 Amp at 240/277 Volt AC
• Resistive Ampere: 40 Amp at 240/277/480/600 Volt AC
• Coil Voltage: 24 Volt AC
• Enclosure: Open
• Approval: CSA
• Operating Frequency: 50 Hz, 60 Hz
• Connection Type: Screws
• Electrical Connection Size: #10-32
• Ambient Operating Temperature (Min): -13 °F, -25 °C
• Ambient Operating Temperature (Max): 158 °F, 70 °C
