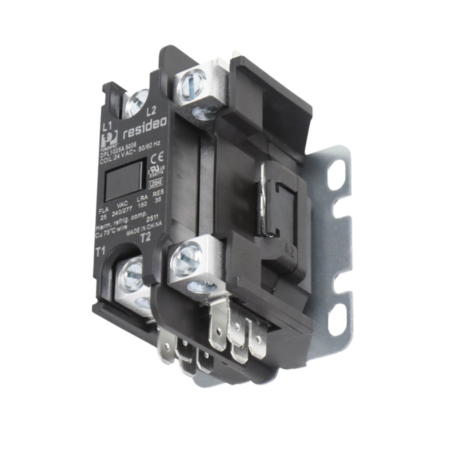

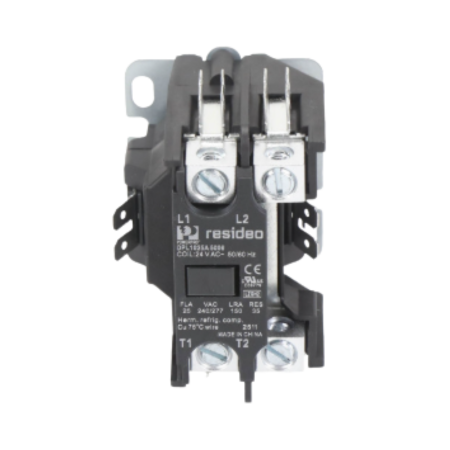

HONEYWELL DPL1025A5006 Definite Purpose Contactor 24 VAC

Product Description

The Honeywell DPL1025A5006 is a single-pole contactor designed for controlling induction motors. It is suitable for HVAC systems and refrigeration applications. Operating at 24 VAC, this contactor is built for durability and efficiency.

• Compatible with A2L refrigerants
• Includes silver cadmium oxide contacts
• Designed with multiple mounting options for flexibility

Product Highlights

This contactor provides reliable operation in demanding environments, ensuring compatibility with various systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: DPL1025A5006

Technical Specifications

• Application: PowerPro Definite Purpose Contactor
• Number of Poles: 1 pole with shunt
• Input Voltage: 24 VAC
• Operating Frequency: 50 Hz, 60 Hz
• Switch Action: SPST
• Electrical Connection Type: Box lug w/ quad .250 quick connect terminals
• Coil Connection Type: Quick Connect
• Coil Connection Size: 1/4 in
• Ambient Operating Temperature (Min): -25 °C
• Ambient Operating Temperature (Max): 70 °C
• Product Height: 58 mm
• Product Width: 81 mm
• Contact Ratings (AFL): 25 A @ 240/277 Vac
• Contact Ratings (Resistive): 35 A @ 240/277 Vac
• Temperature Range: -20 to 65 °C
