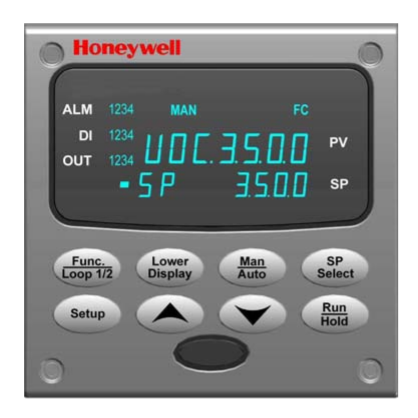

HONEYWELL DC3500EE3000211100 Universal Digital Controller

Product Description

The HONEYWELL DC3500EE3000211100 Universal Digital Controller is designed for efficient control and monitoring in various applications. This controller features a quarter DIN size and is equipped with an infrared configuration interface. It supports three universal analog inputs, two control loops, and two math algorithms.

• Configurable analog inputs can be set for specific needs.
• Offers up to three analog outputs and a maximum of five digital outputs.
• Designed with NEMA4X and IP66 front face protection for durability.

Product Highlights

The controller uses Accutune III tuning technology with fuzzy logic to minimize overshoots. It is compatible with universal AC power supplies and includes four digital inputs. Communication options include Infrared, RS422/485 Modbus RTU, or Ethernet 10Base-T TCP/IP Modbus.

Product Information

Standard Information

• Brand: HONEYWELL
• MPN: DC3500EE3000211100

Technical Specifications

• Accuracy: 0.10%
• Scanning Rate: 166ms
• Analog Outputs: Up to 3
• Digital Outputs: Up to 5
• Digital Inputs: 4
• Communication: Ethernet or RS-485
• Control Loops: Cascade or 2 Loops
• Configuration: Infrared PC & Pocket PC
• Front Face Protection: NEMA4X and IP66
• Size: 1/4 DIN
