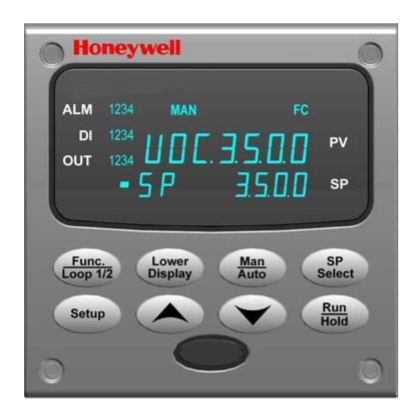

HONEYWELL DC3500CE1C20210100 Universal Digital Controller

Product Description

The HONEYWELL DC3500CE1C20210100 is a universal digital controller designed in a one-quarter DIN size. It comes equipped with an infrared configuration interface, three universal analog inputs, and two control loops. The controller employs Accutune III tuning with fuzzy logic overshoot suppression, ensuring precise control. Additionally, it provides a universal AC power supply, four digital inputs, and allows for up to seven analog and digital outputs.

• Offers up to three analog outputs and five digital outputs.
• Provides Ethernet or RS-485 communication capabilities.
• Features NEMA4X and IP66 front face protection.

Product Highlights

This digital controller is ideal for various industrial applications where precise temperature and process control are necessary.

Product Information

Standard Information

• Brand: HONEYWELL
• MPN: DC3500CE1C20210100

Technical Specifications

• Accuracy: 0.10%
• Scanning Rate: 166ms
• Analog Inputs: 3 Universal (configurable to 1 Universal and 4 High Level)
• Analog Outputs: Up to 3
• Digital Outputs: Up to 5
• Digital Inputs: 4
• Communication: Ethernet or RS-485
• Control Loops: Cascade or 2 Loops
• Configuration: Infrared PC & Pocket PC
• Front Face Protection: NEMA4X and IP66
• Size: 1/4 DIN
