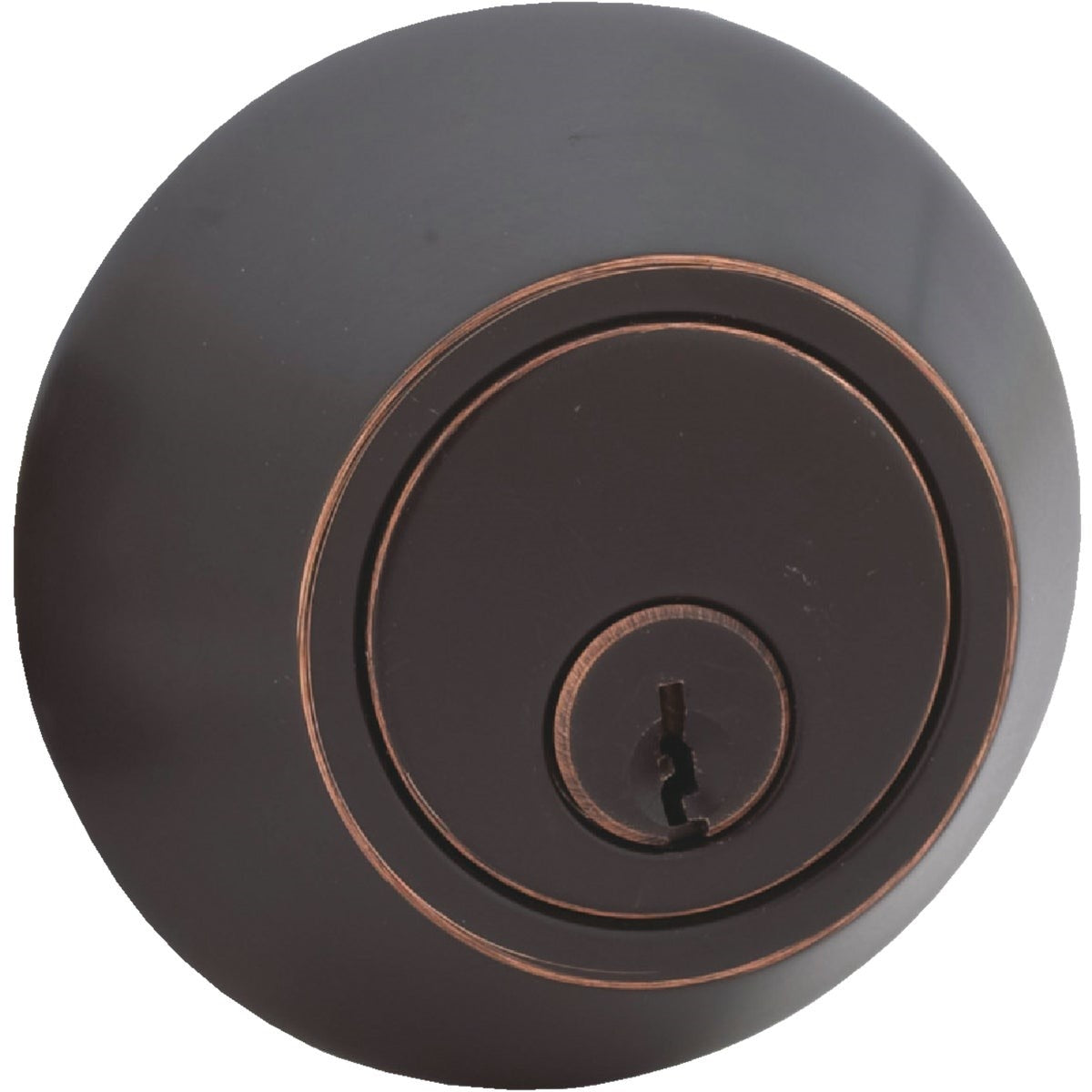

Honeywell DB9X72 Double Cylinder Deadbolt Oil Rubbed Bronze

Product Description

The HONEYWELL DB9X72 is a double cylinder deadbolt designed for residential door security applications. Constructed from steel with an oil rubbed bronze finish, this deadbolt features a 1 inch hardened throw bolt that is key-operated from both the exterior and interior cylinders. The adjustable latch accommodates two standard backset sizes, making it adaptable to a range of door preparations without requiring additional hardware. The square face latch plate provides a clean, flush fit against the door edge. This unit is suited for installation by locksmiths, general contractors, and experienced handymen on residential entry doors.

The DB9X72 is intended for residential entry door applications where double cylinder operation is required, meaning a key is needed to retract the bolt from both sides of the door. This configuration is commonly specified for doors with glass panels or sidelights near the lock. The adjustable latch supports backsets of 2-3/8 inches or 2-3/4 inches, covering the two most common residential door preparations. The Kwikset keyway compatibility allows integration with existing Kwikset-keyed locksets already installed in the home. Bulk case orders of 24 units include 4 sets of 6 keyed-alike cylinders.

Key Features

• 1 inch hardened steel throw bolt for forced-entry resistance
• Double cylinder operation: key retracts bolt from both exterior and interior
• Adjustable latch fits 2-3/8 inch or 2-3/4 inch backsets
• Square face deadbolt latch for standard door prep compatibility
• Oil rubbed bronze finish on steel construction
• Kwikset keyway compatible for use with existing Kwikset key systems

Compatibility

Compatible with doors prepared for standard residential deadbolt installation using 2-3/8 inch or 2-3/4 inch backsets and Kwikset keyway cylinders. Case quantities of 24 include keyed-alike sets for simplified master keying on residential projects.

Installation Notes

Installation is typically performed by a licensed locksmith or qualified contractor following the door manufacturer's preparation specifications. Ensure the door is closed and secured before beginning any lock replacement. Verify backset measurement before setting the adjustable latch position. Double cylinder deadbolts may be subject to local fire and building code restrictions — confirm compliance with applicable codes before installation.

Technical Specifications

• Throw Length: 1 inch hardened steel
• Backset Options: 2-3/8 inches or 2-3/4 inches (adjustable)
• Latch Face Style: Square face
• Cylinder Operation: Double cylinder (key both sides)
• Keyway: Kwikset
• Finish: Oil Rubbed Bronze
• Material: Steel
• Weight: 1.423 pounds
• UPC: 00009326206196

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: DB9X72
